Sioux Chief 633WG18FPT 3/4" PEX x FIP Swivel Supply Valve, No-Lead Brass

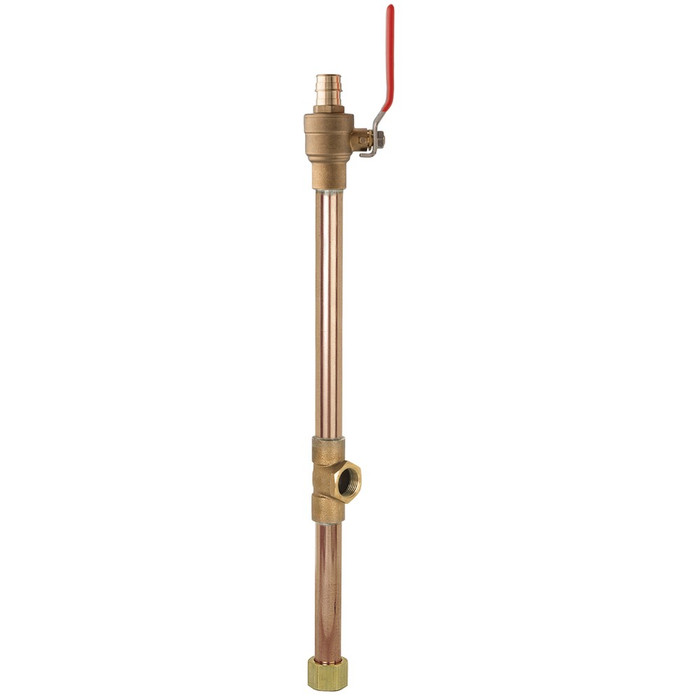

The Sioux Chief 633WG18FPT is a 3/4" F1960 PEX expansion x 3/4" FIP swivel supply valve built for rough-in water distribution and appliance supply-line connections. Constructed from Type L copper tube with NL/DZR (No-Lead, dezincification-resistant) components, it delivers a full-flow, no-restriction waterway with no internal choke points. The brass FIP swivel nut arrives with a factory-installed gasket for a leak-resistant connection, and the lead-free solder joint supports compliant potable-water rough-in work.

Key Features

  • Trade Size: 3/4" F1960 PEX expansion connection x 3/4" FIP swivel connection for direct rough-in installation.
  • Type L Copper Tube Construction: Built from Type L copper tube for corrosion resistance and long service life behind the wall.
  • No-Lead / DZR Brass: Manufactured to NL/DZR (No-Lead, dezincification-resistant) standards for potable water supply applications.
  • Full-Flow Design: No internal restriction, so water flows through the valve at full volume with minimal pressure loss.
  • Brass FIP Swivel Nut with Gasket: The factory-installed gasket seals the connection - do not apply pipe dope to the FIP swivel threads.
  • Lead-Free Solder Joint: Joint construction supports lead-free solder practices for compliant potable-water rough-in.

Certifications & Compliance

  • No-Lead / DZR (Dezincification-Resistant) Brass Components

Technical Specifications

  • Connection: 3/4" F1960 PEX Expansion x 3/4" FIP Swivel
  • Body Material: Type L Copper Tube
  • Swivel Nut Material: Brass with Factory-Installed Gasket
  • Country of Origin: United States
  • Packaging: 10 EA per pack

Typical Applications

  • Washing Machine and Appliance Supply-Line Connections
  • PEX Rough-In Water Distribution Systems
  • Potable Water Supply Shut-Off Points
  • Residential and Light Commercial Plumbing Installations
  • New Construction and Remodel Rough-In Plumbing

Why Sioux Chief?

Sioux Chief builds this 3/4" F1960 PEX x FIP swivel valve from Type L copper tube with NL/DZR brass components, giving plumbers a full-flow, no-restriction connection point that installs cleanly behind the wall. The factory-installed swivel gasket and lead-free solder joint construction help contractors complete a reliable, potable-water-compliant rough-in without extra sealant on the swivel threads. It's a straightforward, code-conscious component built for professional installation.

Product Specs

Product Type:
Supply Stop
Connection Type:
PEX Expansion (F1960)
Standards:
No-Lead
Country Of Origin:
United States
Department:
Plumbing
Product Group:
Rough-In and Supports
Product Subgroup:
Fittings and Valves
Product Material:
Copper
Product Size:
3/4"

Sioux Chief 633WG18FPT – Frequently Asked Questions

1) What connections does the Sioux Chief 633WG18FPT washing machine valve use?
It's a 3/4 inch F1960 PEX expansion inlet by 3/4 inch FIP swivel outlet. The PEX side takes cold-expansion (F1960) fittings, so you need an expansion tool and F1960 rings, not crimp rings. The FIP swivel nut threads onto a 3/4 inch male hose or nipple thread connection.
2) Should I use pipe dope or tape on the FIP swivel nut of the 633WG18FPT?
No. The brass swivel nut comes with a factory-installed gasket that makes the seal. Adding pipe dope or tape to the swivel threads can interfere with the gasket seating. Just hand-tighten and snug with a wrench.
3) Is the Sioux Chief 633WG18FPT approved for potable water?
Yes. The valve is built with No-Lead, dezincification-resistant (NL/DZR) brass components and a lead-free solder joint, which is what potable water rough-in requires. The tube body is Type L copper.
4) Does this valve restrict flow to a washing machine?
No. It's a full-flow design with no internal choke point, so a 3/4 inch line stays 3/4 inch through the valve. That matters on appliance supply runs and on long branch lines where you're already losing pressure.
5) Can this valve be used as a general shut-off in a PEX water distribution system, or is it only for washing machines?
Both. It's a supply stop for appliance supply-line connections like a washer, and it also works as a shut-off point on PEX rough-in distribution, in new construction or remodel, residential or light commercial. The limit is the connection set: 3/4 inch F1960 PEX in, 3/4 inch FIP swivel out.
6) How many Sioux Chief 633WG18FPT valves come in a pack?
They ship 10 each per pack, which suits a multi-family or tract rough-in where you're setting a washer box on every unit. Single-unit remodel work means you'll have spares.
7) Where is the Sioux Chief 633WG18FPT made?
United States. That matters on public and institutional jobs carrying domestic-sourcing requirements on plumbing components.
