Sioux Chief 633XG18FPT 3/4" PE...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$65.15

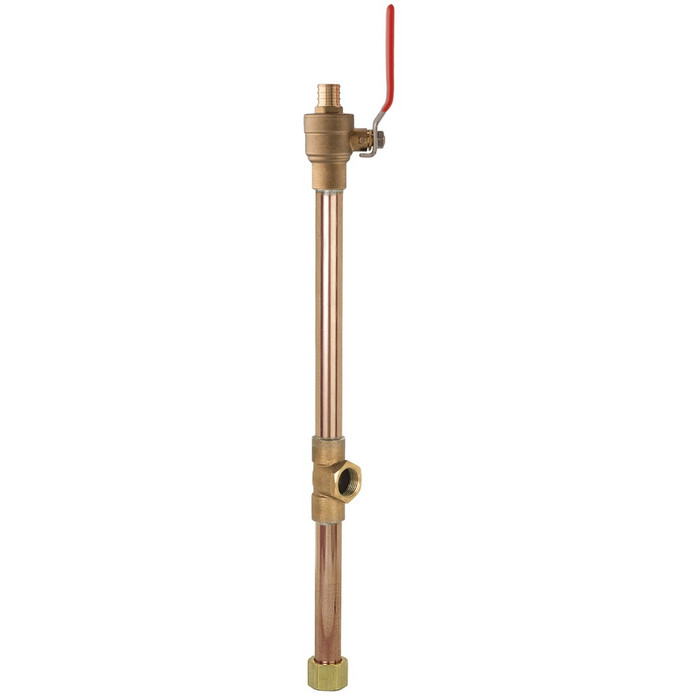

Sioux Chief 633XG18FPT 3/4" PEX x FIP Swivel Water Heater Connector Valve, No-Lead Brass, 18" Length

Sioux Chief 633XG18FPT 3/4" PEX x FIP Swivel Water Heater Connector Valve, No-Lead Brass, 18" Length

(No reviews yet) Write a Review

Model: 633XG18FPT

In Stock (leaves warehouse same day if ordered before 3pm ET)

$65.15
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sioux Chief 633XG18FPT 3/4" PEX x FIP Swivel Water Heater Connector Valve, No-Lead Brass, 18" Length

The Sioux Chief 633XG18FPT is a 3/4" PEX x 3/4" FIP swivel water heater connector with an integrated full-port ball valve, giving plumbers a dedicated shutoff at the water heater supply line. Built from no-lead/DZR brass with a gasketed FIP swivel nut and Type L copper tube components, this 18" connector delivers full-flow, dielectric performance with no restriction. Made in the United States, it is designed for rough-in water heater installation and replacement work.

Key Features

  • Trade Size: 3/4" PEX x 3/4" FIP swivel connection sized for standard water heater supply lines.
  • No-Lead/DZR Brass: NL/DZR brass construction meets no-lead requirements and resists dezincification.
  • Brass FIP Swivel Nut with Gasket: Included gasket seals the FIP swivel joint; do not use pipe dope on the FIP swivel threads.
  • Integrated Full-Port Ball Valve: 600 WOG full-port ball valve provides a dedicated shutoff without restricting flow.
  • Full-Flow Dielectric Design: Full flow, dielectric fitting construction eliminates flow restriction and galvanic corrosion at the joint.
  • Type L Copper Tube Construction: Built with Type L copper tube components for durable rough-in performance.
  • Length: 18" overall length positions the shutoff valve conveniently at the connection point.

Certifications & Compliance

  • No-Lead (NL) Compliant
  • DZR (Dezincification Resistant) Brass
  • 600 WOG Full-Port Ball Valve Rating

Technical Specifications

  • Trade Size: 3/4" PEX x 3/4" FIP
  • Length: 18"
  • Valve: 600 WOG Full-Port Ball Valve
  • Country of Origin: United States
  • Packaging: 10 EA per carton

Typical Applications

  • Water Heater Supply Line Shutoff
  • Residential and Commercial Rough-In Plumbing
  • PEX Water Distribution Systems
  • New Construction and Water Heater Replacement/Retrofit

Why Sioux Chief?

Sioux Chief builds the 633XG series from no-lead/DZR brass with a gasketed FIP swivel nut and Type L copper tube components, giving contractors a full-flow, dielectric connector with an integrated full-port shutoff valve. Made in the United States, it is built for reliable, code-conscious rough-in performance on water heater installations.

Product Specs

Product Type:
Water Heater Connector
Connection Type:
Threaded
Standards:
No-Lead
Country Of Origin:
United States
Department:
Plumbing
Product Group:
Rough-In and Supports
Product Subgroup:
Fittings and Valves
Product Material:
Brass
Product Size:
3/4"

Sioux Chief 633XG18FPT – Frequently Asked Questions

1) What size connections does the Sioux Chief 633XG18FPT water heater connector have?
It's a 3/4 inch PEX end on one side and a 3/4 inch FIP swivel nut on the other, sized for standard water heater supply lines. The overall length is 18 inches, which lets you land the shutoff at a comfortable height above the heater instead of buried behind it.
2) Do I need pipe dope or tape on the FIP swivel nut of this water heater connector?
No. The brass FIP swivel nut seals on the included gasket, and Sioux Chief specifies not to use pipe dope on the FIP swivel threads. Hand tighten onto the heater nipple and snug it with a wrench; the gasket does the sealing.
3) Does this connector have a built-in shutoff valve, or do I need to add one?
A full-port ball valve is integrated into the 633XG18FPT, rated 600 WOG, so you get a dedicated shutoff at the water heater without teeing in a separate valve. Full port means the bore matches the line, so there's no flow restriction at the shutoff.
4) Can I use a PEX connector on a water heater with steel or copper nipples without a dielectric union?
The 633XG18FPT is built as a dielectric fitting, so the connection itself breaks the galvanic path between dissimilar metals at the heater. It's made from no-lead/DZR brass with Type L copper tube components, and Sioux Chief calls out full-flow dielectric construction that eliminates galvanic corrosion at the joint. Local code still governs, but you are not adding a separate dielectric union to make this work.
5) Is the Sioux Chief 633XG18FPT no-lead compliant for potable water?
Yes. The connector is no-lead compliant and built from NL/DZR brass, which also resists dezincification on aggressive water. That's the material spec inspectors look for on potable hot water supply.
6) Should I use a PEX water heater connector like this one or a braided stainless flex line?
This one is for a PEX distribution system. The 633XG18FPT terminates in a 3/4 inch PEX end that you crimp or clamp into your PEX run, with an 18 inch rigid Type L copper body and an integrated ball valve between the PEX and the heater. A braided flex simply bridges the heater nipple to an existing copper or threaded stub and carries no valve. Pick this when you're running PEX and want the shutoff built into the connection.
7) Can I use this connector on a water heater replacement, or is it new construction only?
Both. Sioux Chief lists the 633XG series for new construction and for water heater replacement and retrofit work. On a changeout, the 3/4 inch FIP swivel spins onto the existing heater nipple without rotating the rest of the assembly, so you're not fighting the PEX run to get the threads started.
8) How many Sioux Chief 633XG18FPT connectors come in a carton?
They ship 10 each per carton, which is how most supply houses buy them for new construction runs. The part is made in the United States, a detail that matters on federally funded and Buy American jobs.
