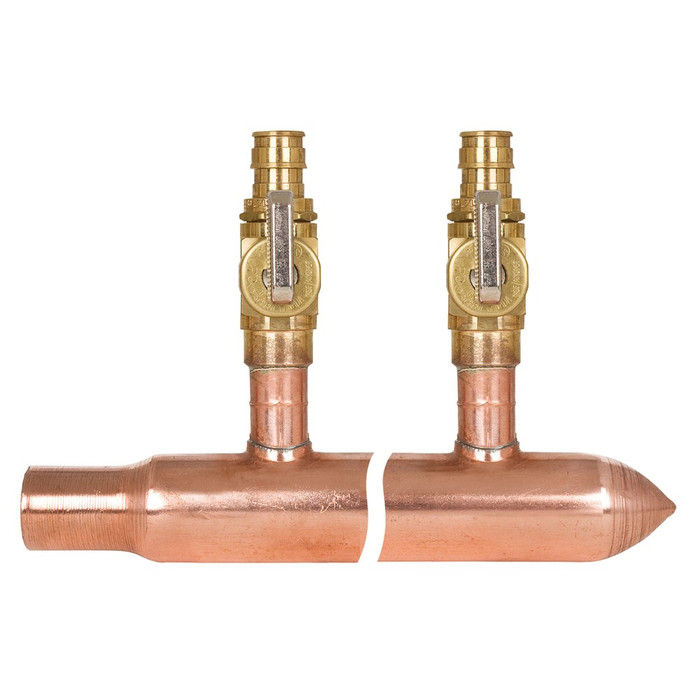

Sioux Chief 672WV0830 1" Copper Manifold with 8 Valved 1/2" Outlets, Closed End

Sioux Chief 672WV0830 1" Copper Manifold with 8 Valved 1/2" Outlets, Closed End

(No reviews yet) Write a Review

Model: 672WV0830

In Stock (leaves warehouse same day if ordered before 3pm ET)

$239.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sioux Chief 672WV0830 1" Copper Manifold with 8 Valved 1/2" Outlets, Closed End

The Sioux Chief 672WV0830 is a 1" Type L copper trunk manifold built for rough-in distribution plumbing, featuring a 3/4" male sweat inlet/outlet and eight valved 1/2" branches for isolating individual fixture runs. The trunk is closed on one end and constructed from no-lead, dezincification-resistant (NL/DZR) brass/copper alloy for potable water distribution systems. Valved branches are spaced 2" on-center, giving installers clean, consistent spacing when running PEX or copper branch lines off the main trunk. This manifold is designed to be installed behind the wall or in a mechanical room as a central distribution point feeding multiple fixtures from a single supply trunk.

Key Features

  • Trade Size: 1" Type L copper trunk with 3/4" male sweat inlet/outlet connections for the main supply run.
  • Branch Configuration: 8 valved branches at 1/2", spaced 2" on-center for isolating individual fixture supply lines.
  • Connection Method: The 3/4" male sweat inlet/outlet can be soldered, pressed, or push-fit onto the 1" Type L copper trunk, giving installers flexibility depending on tools and site conditions.
  • Closed-End Design: This manifold trunk is closed, making it suitable for installations where the run terminates at this manifold rather than continuing through.
  • Material: NL/DZR construction resists dezincification and is formulated for no-lead potable water distribution.
  • Branch Spacing: Non-valved branches (where applicable on related manifold configurations) run 1-1/2" on-center, while this valved configuration runs 2" on-center.
  • Installation Note: Do not recirculate water back through any manifold branch and do not modify the manifold — doing so will void the manufacturer warranty.

Technical Specifications

  • Country of Origin: United States
  • Trunk Size: 1" Type L Copper
  • Inlet/Outlet: 3/4" Male Sweat
  • Branch Outlets: 8 Valved, 1/2"
  • Branch Spacing: 2" On-Center (Valved)
  • Material: NL/DZR
  • End Configuration: Closed
  • Packaging: 10 EA

Typical Applications

  • Residential and Commercial Rough-In Water Distribution
  • Multi-Fixture Supply Manifolds Behind Walls or in Mechanical Rooms
  • PEX or Copper Branch Line Distribution from a Central Trunk
  • New Construction and Repipe Projects Requiring Isolated Fixture Shutoffs
  • Potable Water Supply Systems Requiring No-Lead Components

Why Sioux Chief?

Sioux Chief manufactures this 672WV0830 manifold from NL/DZR material specifically to resist dezincification in potable water service, and its Type L copper trunk with flexible solder, press, or push-fit connection options gives plumbers reliable, code-minded installation flexibility on rough-in jobs. The individually valved 1/2" branches let contractors isolate single fixtures for service without shutting down the whole system, a practical advantage on multi-fixture installations.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Manifold
Connection Type:
Sweat
Standards:
No-Lead
Country of Origin:
United States
Department:
Plumbing
Product Group:
Rough-In and Supports
Product Subgroup:
Fittings and Valves
Product Material:
Copper
Product Size:
1"

Sioux Chief 672WV0830 – Frequently Asked Questions

1) Can I connect PEX branch lines to the Sioux Chief 672WV0830 manifold, or is it copper only?
Both work. The eight 1/2 inch valved branches on the 672WV0830 are set up to feed either PEX or copper branch runs off the 1 inch Type L copper trunk, so the same manifold covers a repipe in PEX and a copper rough-in. The branch outlets themselves are 1/2 inch, so size your branch transition fittings accordingly.
2) How do I tie the 672WV0830 manifold into my main supply line?
The inlet/outlet is a 3/4 inch male sweat connection on the 1 inch Type L copper trunk. You can solder it, press it, or use a push-fit connection, whichever suits the tools and the conditions on site. Note the trunk connection is 3/4 inch male sweat even though the trunk body is 1 inch, so plan the transition from your main run accordingly.
3) What does closed end mean on this Sioux Chief manifold, and when would I need the open version instead?
Closed end means the trunk terminates at the manifold itself: one end carries the 3/4 inch male sweat inlet and the other is capped. Use it where this manifold is the end of the supply run. If you need to continue the trunk past the manifold to a second manifold or another zone, a closed-end trunk will not let you, and an open-end configuration is what you want.
4) Is this manifold approved for potable drinking water?
Yes. The 672WV0830 is built from no-lead, dezincification-resistant (NL/DZR) brass/copper alloy and is formulated for no-lead potable water distribution. DZR material matters on manifolds because the brass sits in continuous contact with potable water and standard yellow brass can lose zinc over time at the threads and valve bodies.
5) Do the valves let me shut off one fixture without killing water to the whole building?
That is the point of the valved version. Each of the eight 1/2 inch branches has its own valve, so you isolate a single fixture run for service while the other seven stay live. On a multi-fixture bathroom group or a small apartment, that means no building-wide shutdown to change a faucet.
6) Can I use this manifold on a hot water recirculation loop?
No. Sioux Chief states not to recirculate water back through any manifold branch. If your system has a recirc return, bring it back to the water heater or a dedicated return point, not through a branch on this manifold. The manifold also must not be modified.
7) How far apart are the outlets on the Sioux Chief 672WV0830 valved manifold?
The eight valved 1/2 inch branches are spaced 2 inches on-center. That is wider than the 1-1/2 inch on-center spacing used on Sioux Chief non-valved manifold configurations, because each branch carries its own valve body. Lay out your stud bay or mechanical room clearance against 2 inch spacing plus room to turn the valve handles.
8) How many fixtures will a 1 inch, 8-outlet manifold like this actually feed?
Eight branches at 1/2 inch each, fed from a 1 inch Type L copper trunk through a 3/4 inch male sweat connection. In practice that covers a typical bath group plus kitchen and laundry on one trunk, hot or cold. If you need more than eight fixture runs off a single point, you are looking at a larger manifold or a second manifold, and this closed-end trunk cannot be extended to a second one.
9) Is the Sioux Chief 672WV0830 sold individually or by the case?
Packaging on the 672WV0830 is 10 each, so it is a case-quantity item rather than a single-piece pull. Worth knowing on a one-off service call versus a production repipe where you are setting a manifold per unit. It is made in the United States.
