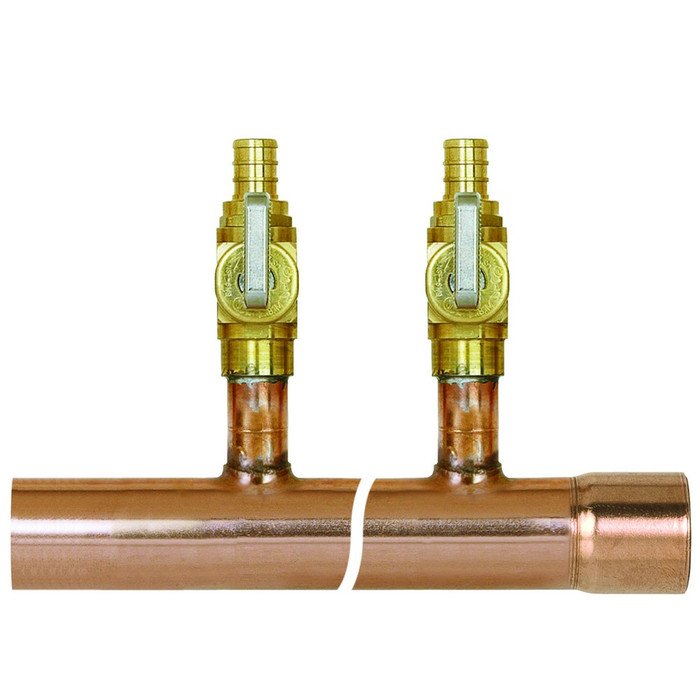

Sioux Chief 672XV4L-11313 11-Port Copper Manifold with 1/2" PEX Valve Branches

Sioux Chief 672XV4L-11313 11-Port Copper Manifold with 1/2" PEX Valve Branches

(No reviews yet) Write a Review

Model: 672XV4L-11313

In Stock (leaves warehouse same day if ordered before 3pm ET)

$325.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sioux Chief 672XV4L-11313 11-Port Copper Manifold with 1/2" PEX Valve Branches

The Sioux Chief 672XV4L-11313 is an 11-port copper trunk manifold built for rough-in PEX distribution systems where a plumber needs multiple individually valved branches off a single 1" Type L copper trunk. Each of the 11 branches is a 1/2" PEX valve outlet spaced 2" on-center, letting a contractor isolate individual fixtures without shutting down the whole manifold run. The 1" male sweat inlet/outlet on the trunk can be soldered, pressed, or push-fit onto 1" copper, giving installers flexibility in how they tie the manifold into the main supply line. Manifold construction is no-lead/DZR (dezincification-resistant) brass alloy, a material choice suited for long-term potable water service behind the wall or in a mechanical room.

Key Features

  • Trade Size: 1" Type L copper trunk with 1/2" PEX valve branch outlets for distribution to individual fixtures.
  • 11-Port Configuration: Eleven individually valved branches spaced 2" on-center (unless otherwise noted), allowing isolation of any single branch for service or repair.
  • Durable Construction: No-lead/DZR brass alloy manifold body resists dezincification for reliable long-term performance in potable water rough-in applications.
  • Flexible Inlet/Outlet Connection: 1" male sweat inlet/outlet can be soldered, pressed, or push-fit onto 1" copper tube, accommodating different installation methods on the job.
  • No-Lead Compliant: Manufactured to NL/DZR specification for use on potable water lines.
  • Single-Pass Design: Do not recirculate water back through any manifold branch and do not modify the manifold, as doing so voids the manufacturer warranty.

Technical Specifications

  • Country of Origin: United States
  • Trunk Material/Size: 1" Type L copper tube
  • Branch Configuration: 11 ports, 1/2" PEX valve outlets, 2" on-center spacing
  • Inlet/Outlet Connection: 1" male sweat (solder, press, or push-fit)
  • Material Rating: NL/DZR brass alloy
  • Packaging: 5 EA

Typical Applications

  • Residential and Commercial PEX Rough-In Distribution
  • Mechanical Room Trunk-and-Branch Water Supply Systems
  • Multi-Fixture Installations Requiring Individual Branch Isolation
  • New Construction and Remodel Plumbing Behind the Wall
  • Potable Water Supply Manifold Replacement

Why Sioux Chief?

Sioux Chief builds this 11-port manifold from no-lead/DZR brass alloy specifically to hold up to continuous potable water service, and the flexible 1" sweat inlet/outlet accommodates solder, press, or push-fit installation methods so plumbers can match the connection to the job at hand. With individually valved 1/2" PEX branches on 2" centers, this manifold gives installers precise control over fixture isolation without reworking the whole trunk line.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Manifold
Connection Type:
Sweat
Configuration:
11-Port
Standards:
No-Lead
Country of Origin:
United States
Department:
Plumbing
Product Group:
Rough-In and Supports
Product Subgroup:
Fittings and Valves
Product Material:
Copper
Product Size:
1" x 1/2"

Sioux Chief 672XV4L-11313 – Frequently Asked Questions

1) How does the Sioux Chief 672XV4L manifold tie into a 1 inch copper main?
The trunk ends are 1 inch male sweat, so they land on standard 1 inch copper tube. You can solder them, use a press fitting, or a push-fit coupling, whichever suits the job. Both ends of the 1 inch Type L copper trunk are inlet/outlet, so you can feed from either side or continue the run.
2) Do the branch outlets on this 11-port Sioux Chief manifold have shutoff valves built in?
Yes. All eleven of the 1/2 inch PEX branch outlets are individually valved, so you can isolate a single fixture for service without draining or shutting down the rest of the manifold run.
3) Is this manifold approved for potable water?
It is built to NL/DZR spec, meaning no-lead and dezincification-resistant brass alloy, which is the material requirement for potable water supply. That is why it is used for behind-the-wall and mechanical room domestic water distribution rather than hydronic-only service.
4) Can I use this manifold on a hot water recirculation loop?
No. Sioux Chief specifies single-pass flow on this manifold. Water must not be recirculated back through any manifold branch, and the body must not be modified. If your design returns water through the manifold, you need a different distribution arrangement.
5) What size PEX does each branch take, and do I need separate valves at the fixtures?
Each branch is a 1/2 inch PEX valve outlet, sized for standard 1/2 inch PEX runs to lavatories, water closets, sinks and similar fixtures. Because the valve is integral to each port, you do not need a separate isolation valve at the manifold end of the run; fixture stops are still a code and service matter at the fixture itself.
6) How many fixtures can one 11-port manifold serve, and what do I do if I need more?
Eleven individually valved 1/2 inch branches means up to eleven fixture runs off a single 1 inch trunk, hot or cold. Because the 1 inch male sweat ends are both inlet and outlet, you can couple a second manifold onto the end of the trunk to extend the port count instead of reworking the whole supply line.
7) What is the trunk made of on the 672XV4L-11313, and will it hold up in a mechanical room?
The trunk is 1 inch Type L copper tube with a no-lead DZR brass alloy manifold body. DZR brass resists dezincification, which is the failure mode that loses zinc from standard brass in continuous potable water service, so it is suited to long-term use behind the wall or exposed in a mechanical room.
8) Is the Sioux Chief 672XV4L-11313 sold individually or in a multi-pack?
Packaging is listed as 5 EA, so it comes as a five-piece pack rather than a single manifold. Worth knowing if you are buying for one house versus a multi-unit rough-in.
9) Is this Sioux Chief manifold made in the USA?
Yes, country of origin is the United States. That matters on public and institutional work carrying domestic-sourcing requirements.
