Sioux Chief 696-G1011 Mini OxBox No-Lead ABS Outlet Box, Quarter-Turn Valve

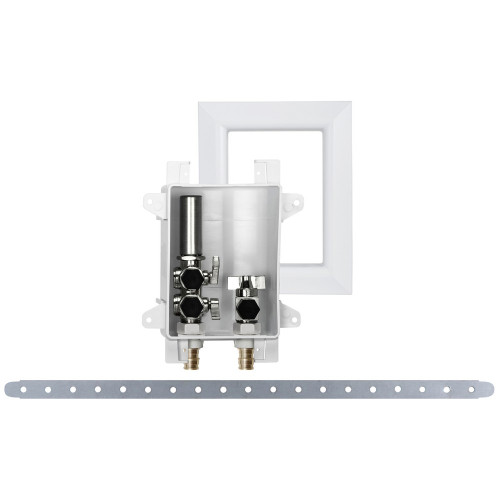

The Sioux Chief 696-G1011 Mini OxBox is a no-lead outlet box built for ice maker and washing machine supply rough-in. This mini-with-frame configuration pairs a compact ABS box body with a quarter-turn ball valve and a 3/8" OD compression outlet on the appliance side, giving installers a solid, code-ready termination point behind the finished wall. This family is offered with a choice of PEX inlet connection — either an ASTM F1807 PEX connection or an ASTM F1960 expansion-style PEX connection — so installers can select the inlet that matches their preferred rough-in PEX practice, while every version in the family shares the same no-lead ball valve, ABS housing, and 3/8" OD compression outlet. Included debris covers shield the box and valve from dust, mud, and paint during rough framing, drywall, and painting, protecting the valve seat until the appliance is connected.

Key Features

  • Quarter-Turn Ball Valve: Provides full-flow shutoff with a 3/8" OD compression connection on the supply-line side for quick appliance hookup.
  • No-Lead Construction: Valve and waterway components are manufactured to no-lead specifications for potable water supply lines.
  • Dual PEX Inlet Options: Available with an ASTM F1807 PEX connection or an ASTM F1960 expansion-style PEX connection, covering both common PEX rough-in practices — select the inlet that fits your job.
  • Durable ABS Box: The outlet box body is molded from ABS plastic and mounts securely to a single stud or spans between studs for flexible framing layouts.
  • Mini with Frame Configuration: A compact mini box profile paired with a mounting frame suits tighter stud-bay installations while keeping the valve accessible.
  • Included Debris Covers: Protective covers shield the box and valve from dust, mud, and paint overspray throughout rough framing, drywall, and painting stages.
  • Patented Design: Covered under U.S. Patent #7,360,553 and #7,735,511.

Technical Specifications

  • Product Material: ABS
  • Packaging: 10 EA per case
  • Connection: 3/8" OD compression outlet with ASTM F1807 PEX or ASTM F1960 PEX inlet, selectable by option
  • Country of Origin: United States

Typical Applications

  • Washing Machine Supply Rough-In
  • Ice Maker Supply Line Termination
  • Residential New Construction Framing
  • PEX Rough-In Behind Finished Walls
  • Tight Stud-Bay Installations

Why Sioux Chief?

Sioux Chief engineers its OxBox outlet boxes with patented designs, no-lead valve components, and durable ABS housings built to withstand the rough-in and finish stages of a job site. The included debris covers and quarter-turn ball valve give plumbers a dependable, field-protected termination point for appliance supply lines that stays clean and ready until final hookup, whether the inlet is configured for F1807 or F1960 PEX.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Outlet Box
Country of Origin:
United States
Standards:
No-Lead
Product Group:
Rough-In and Supports
Product Material:
ABS
Department:
Plumbing
Product Subgroup:
Rough-In Boxes
Configuration:
Mini with Frame

Sioux Chief 696-G1011WF – Frequently Asked Questions

1) Does the Sioux Chief 696-G1011 Mini OxBox come in both F1960 and F1807 PEX connections?
Both. The 696-G1011WF takes an ASTM F1960 expansion-style PEX inlet, and the 696-G1011XF is the F1807 crimp/clamp version. Pick the one that matches the PEX system you are already running, since the fitting style is not interchangeable in the field.
2) What size connection does the appliance side of this Mini OxBox valve take?
The outlet is a 3/8 inch OD compression connection on a quarter-turn ball valve, which is the standard hookup for an ice maker line or a washer supply using a 3/8 inch compression braided hose.
3) Can I use the Sioux Chief Mini OxBox for an ice maker, or is it only for a washing machine?
Both applications. Sioux Chief lists this mini outlet box for ice maker supply line termination and washing machine supply rough-in. The single quarter-turn valve with a 3/8 inch OD compression outlet suits either single-supply appliance; a washer needing separate hot and cold shutoffs requires a two-valve box instead.
4) Will the Mini OxBox mount in a tight stud bay, or does it need a full bay width?
It is built for tight bays. The mini-with-frame configuration uses a compact box profile and mounts either to a single stud or spanning between studs, so you are not locked into one framing layout.
5) Is the Sioux Chief 696-G1011 outlet box safe for potable water supply lines?
Yes. The valve and waterway components are built to no-lead specifications, which is what plumbing codes require on potable supply. The box body itself is ABS and carries no water.
6) Do I need to buy a separate cover to protect the Mini OxBox valve during drywall and paint?
No separate cover needed. Debris covers ship with the box and shield the housing and valve from dust, mud and paint overspray through framing, drywall and finish, so the valve seat stays clean until the appliance is hooked up.
7) Can I connect copper or a threaded nipple to the inlet of this Sioux Chief outlet box?
No. The inlet on the 696-G1011WF and 696-G1011XF is a PEX connection only, F1960 expansion on the WF and F1807 on the XF. If you are roughing in with copper or threaded pipe, you need a different OxBox inlet configuration.
8) How does the Mini OxBox ship for a multi-unit job, and where is it made?
Case quantity is 10 each, which is how it is bought for apartment or tract work where every unit gets the same ice maker or laundry rough-in. Country of origin is the United States, which matters on public and institutional work with domestic sourcing requirements.
