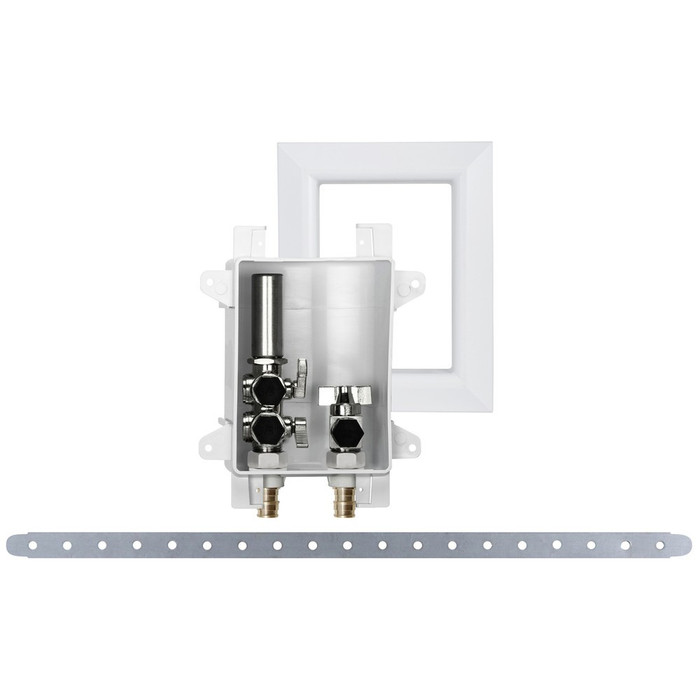

Sioux Chief 696RG301 No-Lead Mini Oxbox Outlet Box with Frame, ABS

Sioux Chief 696RG301 No-Lead Mini Oxbox Outlet Box with Frame, ABS

(No reviews yet) Write a Review

Model: 696-RG3011WF

In Stock (leaves warehouse same day if ordered before 3pm ET)

$101.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sioux Chief 696RG301 No-Lead Mini Oxbox Outlet Box with Frame, ABS

The Sioux Chief 696RG301 is a no-lead Mini Oxbox lavatory/dishwasher outlet box built for behind-the-wall rough-in on sink/dishwasher or sink/ice maker supply runs. This outlet box is offered across a choice of PEX connection — F1960 PEX expansion or PEX F1807 crimp-style — so rough-in plumbers can select the connection method that matches the PEX system already specified on the job while keeping the same compact Mini Oxbox footprint, quarter-turn ball valves, and ABS box body on either option. Both connection versions ship with a mounting frame and give the installer a compact, stud-mountable termination point that stays protected until trim-out. The ABS box body mounts securely to a stud or between studs, and the included debris covers shield the box and valves from dust, mud, and paint during the rest of the build.

Key Features

  • Mini Oxbox Configuration: Compact outlet box sized for sink/dishwasher or sink/ice maker applications where space behind the wall is limited.
  • Quarter-Turn Ball Valves: Integrated quarter-turn ball valves with a compression connection give installers a simple, reliable shutoff at the outlet, regardless of which connection option is selected.
  • Selectable PEX Connection: Available in F1960 PEX expansion-style or PEX F1807 crimp-style connection, letting the box match whichever PEX system is already installed on the job.
  • No-Lead Construction: Manufactured to no-lead specification for potable water supply stop applications on both connection options.
  • Durable ABS Box: ABS box construction mounts securely to a single stud or spans between studs for a stable rough-in installation.
  • Included Mounting Frame: Frame is included with the box for a finished, supported installation at the rough-in stage.
  • Debris Covers Included: Protective covers shield the box and valves from dust, mud, and paint until the wall finish and trim-out are complete.
  • Patented Design: Covered under U.S. Patent #7,360,553 and #7,735,511.

Certifications & Compliance

  • Listed by Warnock Hersey to meet ASTM E-814
  • Listed by Warnock Hersey to meet CAN/ULC S115
  • Manufactured to no-lead specification

Technical Specifications

  • Box Material: ABS
  • Connection Options: F1960 PEX expansion or PEX F1807 crimp, each with a compression quarter-turn ball valve
  • Country of Origin: China
  • Packaging: 10 EA

Typical Applications

  • Sink and Dishwasher Supply Rough-In
  • Sink and Ice Maker Supply Rough-In
  • New Construction Stud-Wall Plumbing
  • Residential and Light Commercial Remodel Rough-In
  • PEX F1960 or PEX F1807 Supply Line Termination

Why Sioux Chief?

Sioux Chief engineers its Oxbox outlet boxes with patented, stud-mountable ABS construction and built-in debris protection so the box survives the rest of the build intact. With no-lead quarter-turn ball valves, a choice of F1960 or PEX F1807 connections, an included mounting frame, and Warnock Hersey listing to ASTM E-814 and CAN/ULC S115, the 696RG301 gives rough-in plumbers a dependable, code-recognized termination point for sink/dishwasher and sink/ice maker supply lines no matter which PEX connection the job requires.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Rough-In Outlet Box
Country of Origin:
China
Standards:
No-Lead
Product Group:
Rough-In and Supports
Product Material:
ABS
Connection Type:
F1960 / PEX F1807
Department:
Plumbing
Product Subgroup:
Rough-In Boxes

Sioux Chief 696-RG3011WF – Frequently Asked Questions

1) What is the difference between the F1960 and F1807 versions of the Sioux Chief Mini Oxbox outlet box?
The connection style to the PEX tubing is the only difference you specify. Model 696-RG3011WF uses the ASTM F1960 cold expansion fitting, the style used with expansion-ring PEX-a systems like Uponor. Model 696RG3011XF uses PEX F1807, the copper crimp ring style used with crimp or cinch tooling. Match it to the tool and ring system already on your truck, because the two are not interchangeable at the fitting.
2) Can the Sioux Chief Mini Oxbox be mounted to a single stud, or does it have to span between studs?
Either way works. The ABS box body mounts securely to a single stud or spans between two studs, and the mounting frame ships with the box so you are not sourcing brackets separately at rough-in.
3) Is the Mini Oxbox outlet box approved for potable drinking water supply?
It is manufactured to no-lead specification for potable water supply stop applications, which is what gets it past inspection on domestic water in both residential and light commercial work.
4) Will the Mini Oxbox work for a sink and dishwasher on the same rough-in, or just one fixture?
It is built for two-outlet runs: sink/dishwasher or sink/ice maker. The Mini size is the compact version, intended for openings where there is not much depth or width behind the wall for a full-size Oxbox.
5) What kind of shutoff valves come in the Sioux Chief 696 Mini Oxbox?
Quarter-turn ball valves are integrated in the box with compression outlet connections, so the trim-out plumber lands the fixture supply on compression and has a positive shutoff at the box instead of adding stops later.
6) Will the valves get wrecked by drywall mud and paint before trim-out?
Debris covers are included and snap over the box to keep dust, mud, and paint off the box and valves through the rest of the build. Leave them on until the wall finish is done and the trim plate goes on.
7) How is the Sioux Chief Mini Oxbox packaged for a job order?
Packaging is 10 each, so it comes as a case quantity rather than a single box. That suits a tract or multi-family rough-in where you are setting the same kitchen or lav detail unit after unit.
