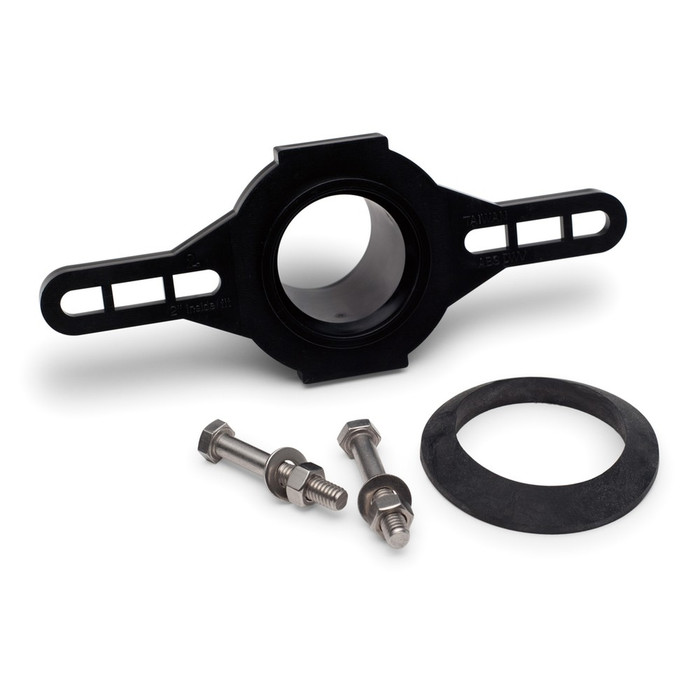

Sioux Chief 868-5A ABS Urinal Closet Flange Kit with Stainless Steel Bolts

Sioux Chief 868-5A ABS Urinal Closet Flange Kit with Stainless Steel Bolts

(No reviews yet) Write a Review

Model: 868-5A

In Stock (leaves warehouse same day if ordered before 3pm ET)

$15.32
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sioux Chief 868-5A ABS Urinal Closet Flange Kit

The Sioux Chief 868-5A is a 2" ABS urinal closet flange kit built for rough-in connection of a wall-hung urinal to the drain line behind the wall. The flange features horizontal mounting slots that fit 3-1/2" - 7" mounting centers, giving installers flexibility to match the urinal's bolt pattern without swapping parts. A unique 2" inside-fit connection lets the installer cut the drain pipe flush with the finished wall surface, simplifying the rough-in and eliminating the need for a protruding pipe stub. This kit is intended for professional plumbers and contractors working on commercial or institutional restroom installations where a urinal must tie into a 2" drain line cleanly and securely.

Key Features

  • Trade Size: 2" inside-fit connection sized for standard urinal drain rough-in.
  • Flush-Cut Design: the inside-fit connection allows the drain pipe to be cut flush with the finished wall, eliminating a protruding stub and simplifying the rough-in.
  • Durable Construction: ABS flange body resists corrosion common to cast metal flanges in wet drain-line environments.
  • Adjustable Mounting Slots: horizontal slots fit 3-1/2" - 7" mounting centers, accommodating a range of urinal bolt patterns.
  • Complete Kit: includes the PVC/ABS flange, stainless steel bolts, nuts, washers and gasket, so the installer has everything needed to set the urinal without sourcing separate hardware.
  • Hardware Finish: stainless steel bolts, nuts and washers resist corrosion at the fixture connection point.

Technical Specifications

  • Country of Origin: Taiwan
  • Packaging: 10 EA

Typical Applications

  • Wall-Hung Urinal Rough-In Installation
  • Commercial and Institutional Restroom Plumbing
  • New Construction Drain-Line Connections
  • Renovation of Existing Urinal Fixture Connections

Why Sioux Chief?

Sioux Chief engineers this urinal closet flange kit as a complete, self-contained package - flange, stainless steel hardware and gasket together - so plumbers can connect a urinal to a 2" drain line without hunting down extra parts. The flush-cut inside-fit connection and adjustable 3-1/2" - 7" mounting slots are practical, field-driven details that make rough-in installation faster and more consistent on the job.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Closet Flange
Configuration:
Urinal Flange Kit
Country of Origin:
Taiwan
Department:
Plumbing
Product Group:
Rough-In and Supports
Product Subgroup:
Drains and Cleanouts
Product Material:
ABS

Sioux Chief 868-5A – Frequently Asked Questions

1) Will the Sioux Chief 868-5A urinal flange fit my urinal's bolt spacing?
The 868-5A flange has horizontal mounting slots that cover 3-1/2 inch to 7 inch mounting centers, so it takes a range of wall-hung urinal bolt patterns without changing parts. Measure center to center on the urinal's hanger bolt holes; anything inside that window lands in the slots.
2) Do I have to leave a pipe stub sticking out of the finished wall for this flange?
No. The inside-fit connection is the point of the 868-5A: you cut the 2 inch drain pipe flush with the finished wall and the flange goes into the pipe. That keeps the wall face clean behind the urinal and avoids trimming a protruding stub after tile or panel work.
3) What hardware comes with the Sioux Chief 868-5A kit, or do I need to buy bolts separately?
The kit is complete for setting the fixture: flange body, stainless steel bolts, nuts and washers, plus the gasket. Nothing extra to source for the fixture connection. What it does not include is the urinal carrier or wall support, and any solvent cement or sealant your installation calls for.
4) Is an ABS urinal flange durable enough for a commercial restroom, or should I use cast metal?
ABS is the body material here, and it does not corrode the way cast metal flanges can in a wet drain-line environment. The hardware that actually sees moisture at the fixture face is stainless steel. For commercial and institutional restroom rough-in, which is what the 868-5A is built for, that combination holds up without the rust problems of a ferrous flange.
5) Can I use this flange on a retrofit, replacing an existing urinal connection?
Yes, renovation of an existing urinal fixture connection is one of its intended uses, along with new-construction rough-in. The practical check is the drain: you need a 2 inch pipe you can cut flush at the wall for the inside-fit socket, and urinal mounting centers between 3-1/2 and 7 inches.
6) Is a urinal closet flange the same thing as a toilet closet flange?
No. A standard toilet closet flange is a 3 or 4 inch flange with a bolt slot pattern for a floor-set water closet. The 868-5A is a 2 inch urinal flange for a wall-hung fixture, with horizontal slots adjustable from 3-1/2 to 7 inches to match urinal hanger patterns. They are not interchangeable.
7) Is the Sioux Chief 868-5A sold individually or by the case?
It is packaged 10 each, so it comes as a multi-pack of flange kits rather than a single kit. That suits a multi-fixture restroom job or a maintenance shop stocking for a building with several urinals.
8) Where can I get the full spec sheet for the Sioux Chief 868-5A?
Sioux Chief publishes a PDF spec sheet for the 868-5A covering the kit's dimensions and connection detail. The 868-5A is made in Taiwan and supplied as a urinal flange kit configuration.
