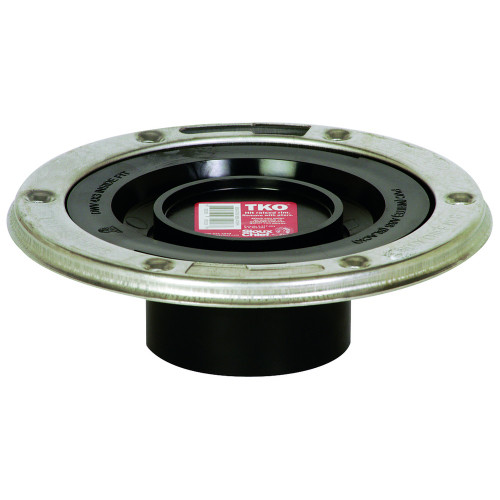

Sioux Chief 889-45 Closet Flange, 3" Spigot Connection with 45° Stainless Steel Swivel Ring

Sioux Chief 889-45 Closet Flange, 3" Spigot Connection with 45° Stainless Steel Swivel Ring

(No reviews yet) Write a Review

Model: 889-45AM

In Stock (leaves warehouse same day if ordered before 3pm ET)

$20.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sioux Chief 889-45 Closet Flange, 3" Spigot Connection with 45° Stainless Steel Swivel Ring

The Sioux Chief 889-45 is a 3" spigot-connection closet flange built for rough-in waste connections where a 45° offset swivel is needed to true up the fixture to the drain line. This flange is available in ABS and PVC bodies, letting installers match the material to the DWV system already run on the job — ABS for ABS stacks, PVC for PVC stacks — while every option shares the same 3" spigot, 45° configuration, and 430 stainless steel swivel ring. The spigot end glues directly inside a 3" Schedule 40 fitting hub, and a full-flow 3" I.D. throat delivers an unrestricted waste path with no reduction in flow. The corrosion-resistant 430 stainless steel swivel ring lets the flange rotate to align the closet bolt slots with the toilet base without twisting the solvent-welded pipe joint below. This is a behind-the-wall, under-the-floor rough-in fitting intended for solvent-welding into a DWV system, not a finish-grade decorative part, and is supplied 20 EA per case for stocking rough-in jobs.

Key Features

  • Trade Size: 3" I.D. full-flow throat for an unrestricted waste connection with no flow restriction.
  • Material Options: Available in ABS or PVC bodies, each sharing identical dimensions and swivel-ring construction, to match the DWV piping system already in place on the job.
  • Connection Type: Spigot end glues inside a 3" Schedule 40 fitting hub for a solid, permanent joint.
  • Configuration: 45° angle lets the installer offset the flange orientation to match fixture and wall-bolt layout.
  • Swivel Ring: 430 stainless steel swivel ring resists corrosion and allows the flange face to rotate independently of the glued spigot joint for proper bolt-slot alignment.
  • Packaging: Supplied 20 EA per case for rough-in stocking and multi-unit jobs.

Technical Specifications

  • Country of Origin: United States
  • Packaging: 20 EA
  • Trade Size: 3" spigot / 3" I.D. throat
  • Angle: 45°
  • Swivel Ring Material: 430 Stainless Steel
  • Material Options: ABS, PVC

Typical Applications

  • Residential and Commercial Rough-In Plumbing
  • Toilet Closet Flange Installation on ABS or PVC DWV Lines
  • New Construction Waste Line Rough-In
  • Renovation and Bathroom Remodel Drain Connections
  • Offset Flange Alignment Where Wall or Fixture Position Requires a 45° Turn

Why Sioux Chief?

The Sioux Chief 889-45 pairs a full-flow 3" spigot body — offered in either ABS or PVC to match the piping already on site — with a corrosion-resistant 430 stainless steel swivel ring, giving installers a flange that glues solid into a Schedule 40 fitting hub while still allowing the bolt pattern to be adjusted after the joint is made. That combination of a permanent solvent-weld connection, a 45° offset body, and a rotating, corrosion-resistant swivel ring makes it a practical choice for plumbers setting closet flanges where exact fixture alignment matters on either ABS or PVC DWV systems.

Manufacturer Resources

Spec Sheet

Product Specs

Product Subgroup:
Drains and Cleanouts
Product Size:
3"
Product Type:
Closet Flange
Connection Type:
Spigot
Product Group:
Rough-In and Supports
Department:
Plumbing
Configuration:
45° Swivel
Angle:
45°
Product Finish:
Stainless Steel
Country of Origin:
United States

Sioux Chief 889-45AM – Frequently Asked Questions

1) Does the Sioux Chief 889-45 closet flange come in PVC as well as ABS?
Both. The 889-45AM is the ABS version and the 889-45PM is the PVC version. Match the material to the drain line you are gluing into, since ABS cement and PVC cement are not interchangeable for a sound solvent weld.
2) Does this 3 inch closet flange glue inside the pipe or over it?
It is a spigot connection, so the flange's outlet glues INSIDE a 3 inch Schedule 40 fitting hub. If what you have in the floor is 3 inch pipe end sticking up rather than a hub, a spigot flange is the wrong style for you, you need a hub (socket) flange that slips over the pipe.
3) Can I rotate the toilet bolt slots after the flange is glued in?
Yes. The 889-45 uses a 430 stainless steel swivel ring, so the ring carrying the closet bolt slots rotates independently of the glued spigot joint. You set the joint first, then spin the ring to line the bolts up with the toilet base, no twisting of the pipe below.
4) What does the 45 degree on the Sioux Chief 889-45 flange actually do?
The 45 degree configuration offsets the flange body so the installer can turn the flange orientation to suit the fixture and wall bolt layout. It is for roughed-in waste lines that come at the closet location off-angle, letting you true the flange face up to the toilet base instead of re-plumbing the branch.
5) Is this a finished trim flange or a rough-in part?
Rough-in only. The 889-45 is a behind-the-wall, under-the-floor fitting meant to be solvent welded into a DWV system and then covered by the toilet base. It is not a finish-grade decorative piece, and it is not a repair or spanner plate for a broken flange.
6) Will a 3 inch closet flange restrict drain flow on a toilet?
No. The throat is a full-flow 3 inch I.D., so the waste path matches the 3 inch line with no reduction. That is the difference between a true 3 inch flange and a 4x3 style reducing flange.
7) Is a stainless swivel ring worth it over a plastic ring flange?
The ring is the part that takes the closet bolt load and sits in a wet location. 430 stainless resists corrosion and will not crack the way a plastic bolt slot can when a toilet rocks. For property managers re-setting toilets repeatedly in the same units, a metal ring is the one that survives the second and third pull.
8) How many Sioux Chief 889-45 flanges come in a case?
Supplied 20 each per case, which is how it is stocked for rough-in and multi-unit work. Useful if you are flanging a run of bathrooms rather than buying one-offs.
