SOSS 205 Invisible Hinge 2-3/8...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$35.00
$34.20

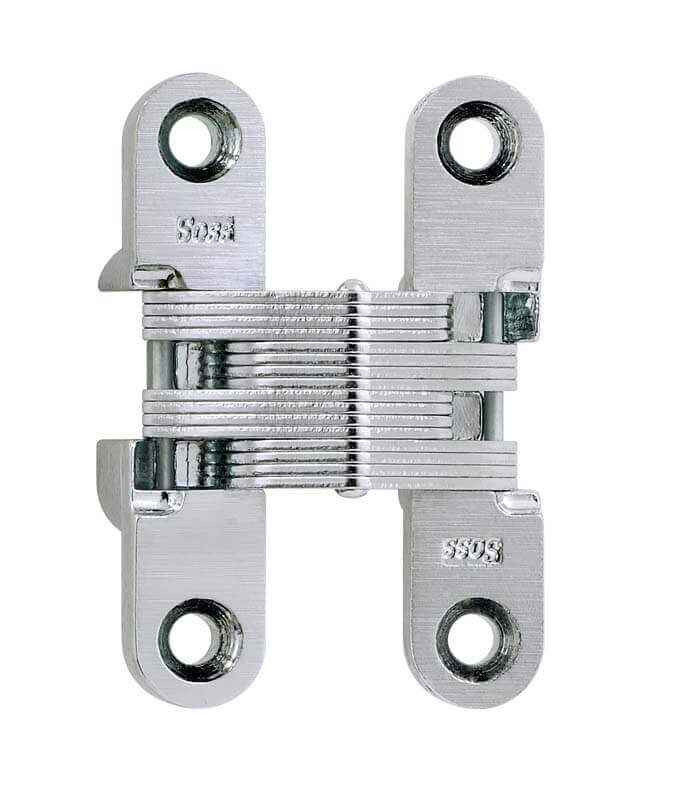

SOSS 205 Invisible Hinge 2-3/8" Metal Door Application, Satin Chrome

SOSS 205 Invisible Hinge 2-3/8" Metal Door Application, Satin Chrome

(No reviews yet) Write a Review

Model: 205US26D

In Stock (leaves warehouse same day if ordered before 3pm ET)

$35.00
$34.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SOSS 205 Invisible Hinge 2-3/8" Metal Door Application, Satin Chrome

The SOSS 205 Invisible Hinge from SOSS is engineered for metal door and cabinet applications no more than 3/64" thick, delivering a flush, concealed appearance with a 2-3/8" size and 1" minimum door thickness. Constructed of zinc and steel, this 205 Series hinge opens a full 180° as a single action hinge, providing smooth operation and a compact profile ideal for cabinet-style installations. Finished in Satin Chrome, it combines durability with a clean, professional look suited to demanding commercial environments.

Key Features

  • Compact Size: 2-3/8" hinge size designed for a 1" minimum door thickness, ideal for cabinet and metal door applications.
  • Metal Application Rated: Designed for use in metal applications no more than 3/64" thick for precise, flush-fit installation.
  • Heavy-Duty Construction: Made of zinc and steel materials for superior appearance and long-term durability.
  • Full 180° Swing: Single action hinge design allows the door to open a full 180° for versatile access.
  • Invisible, Flush-Fit Design: Provides a concealed appearance with compact size and smooth operation, ideal where a clean sightline is required.
  • Radius Corner Type: Designed with a radius corner profile for consistent fit and finish.
  • Convenient Packaging: Packaged 2 per bag (1 pair), with 5 pair per container, priced per pair for straightforward ordering.

Technical Specifications

  • Subcategory: Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Subgroup: Concealed Hinges
  • Commercial/Residential: Commercial
  • Duty Level: Heavy Duty
  • Electronic: No
  • Corner Type: Radius
  • Series: 205 Series
  • Product Size: 2-3/8"
  • Product Category: Door Hinges and Pivots
  • Department: Door Hardware
  • Application: Cabinet, Metal
  • Min. Material Thickness: No
  • Fire Rating: No
  • Power Transfer: No
  • Closer: No
  • Counter Bored Screw Holes: No
  • Screws Included: No
  • Packaging: 2 / Bag = 1 Pair
  • Packages Per Container: 5 Pair
  • Price Per: Pair
  • Max. Material Thickness: 3/64″

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why SOSS 205?

SOSS 205 hinges are built from durable zinc and steel materials, offering the flush fit, compact size, and smooth operation that define the SOSS Invisible Hinge line. Designed specifically for metal door and cabinet applications requiring a concealed, professional appearance, this heavy-duty commercial hinge is engineered for reliable, long-term performance in demanding installations.

Product Specs

Subcategory:
Hinges and Pivots
Product Group:
Door Hinges and Pivots
Product Type:
Invisible Hinges
Product Subgroup:
Concealed Hinges
Commercial/Residential:
Commercial
Duty Level:
Heavy Duty
Electronic:
No
Corner Type:
Radius
Series:
205 Series
Product Function:
Invisible Hinges
Product Size:
2-3/8"
Product Category:
Door Hinges and Pivots
Product Substrate:
Zinc and Steel
Department:
Door Hardware

SOSS 205US26D – Frequently Asked Questions

1) Will the SOSS 205 invisible hinge work on a hollow metal door, or is it only for cabinets?
The 205 is built for metal applications where the material is no more than 3/64 inch thick, so it suits sheet-metal doors and metal cabinet doors rather than a heavy hollow metal door with thicker face sheets. If your leaf skin measures more than 3/64 inch, this is the wrong hinge for it. Where it does fit, it mortises fully into the door and frame and disappears when the door is closed.
2) What door thickness does the SOSS 205 hinge need?
One inch is the minimum door thickness for the 205. Thinner than that and there is not enough material to take the mortise, which is the usual reason an invisible hinge fails on a thin cabinet door. The hinge itself is a 2-3/8 inch size.
3) Is the SOSS 205 invisible hinge fire rated?
The 205 carries no fire rating. On a labeled opening you need hinges that are listed for that assembly, so this one should not go on a fire door. It is a commercial, heavy duty hinge for non-rated metal and cabinet doors.
4) Does the SOSS 205 come with mounting screws?
No screws are supplied with the 205, and the hinge body has no counter bored screw holes. Plan on sourcing fasteners suited to your leaf and frame material as part of the job.
5) How many SOSS 205 hinges do I get, and how are they sold?
The 205 is sold by the pair, packaged two per bag, with five pair to a container. If you are hanging several cabinet or metal doors, order in pairs and count how many hinges each leaf needs before you total it up.
6) What is the corner profile on the SOSS 205 mortise, square or radius?
Radius. The 205 has a radius corner leaf, which means the routed pocket can be cut with a standard router bit and needs no corner chiseling. Square corner invisible hinges want the pocket squared off at the ends, so the two are not interchangeable once a door is already prepped.
7) Can I use a SOSS 205 on an electrified opening that needs power through the hinge?
No. The 205 has no power transfer and no electronic provision, so it cannot carry wiring from the frame to the door. An opening with an electric lock or exit device on the leaf needs a dedicated electric power transfer hinge or a separate door loop.
8) How do I lay out the mortise for a SOSS 205 invisible hinge?
SOSS publishes a hinge location guide and a sizing chart for the 205, and both are worth pulling before you cut. The layout depends on door height and weight, and the routed pocket has to be sized to the 2-3/8 inch hinge with a radius corner. Getting the two leaf pockets aligned across the door and frame is what decides whether the door closes flush.
9) What is a SOSS 205 hinge made of, and what does the satin chrome finish go with?
Zinc and steel construction, finished in satin chrome. Satin chrome reads as a brushed silver tone, so it lines up with the satin nickel and brushed stainless pulls and lock trim common in commercial casework. Since the hinge is fully concealed when the door is shut, the finish only shows at the edge when the door stands open.
