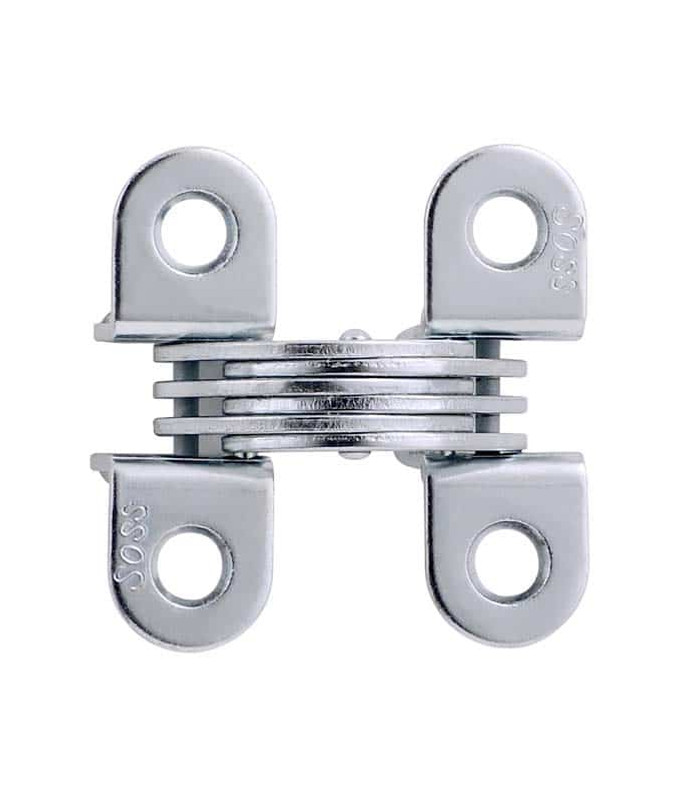

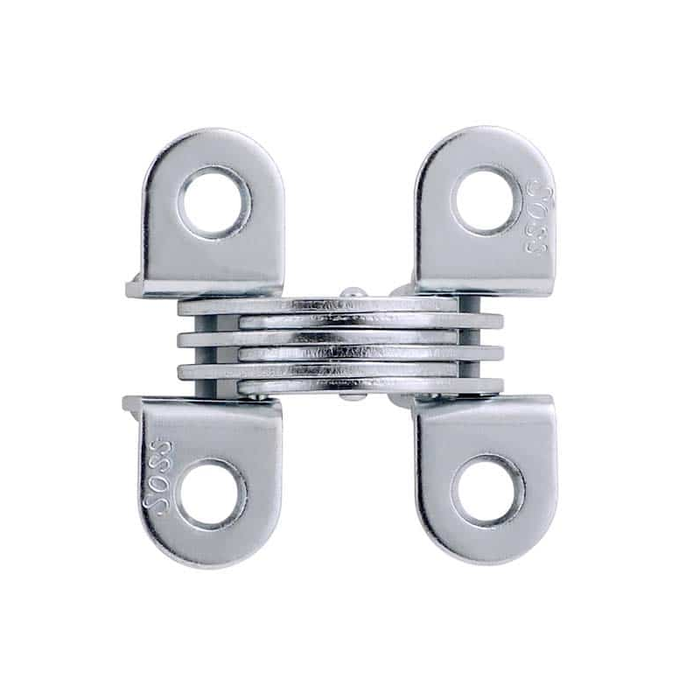

SOSS 314 Invisible Hinge for Metal Cabinet Applications
The SOSS 314 Invisible Hinge is engineered for use in metal applications no more than 1/8" thick, making it an ideal choice for cabinet-style installations where a flush, concealed fit is required. Constructed of durable steel, this hinge opens a full 180° as a single action hinge, delivering smooth operation and a compact 1-33/64" product size. Designed for commercial cabinet and metal applications, the SOSS 314 combines superior appearance with the durability professionals expect from invisible hinge hardware.
Key Features
- Metal Thickness Compatibility: Designed for metal applications no more than 1/8" thick, ensuring proper fit and function for cabinet-style installations.
- Compact Product Size: Measures 1-33/64" for use in space-conscious cabinet and metal applications requiring a concealed hinge profile.
- Full 180° Opening: Single action hinge design allows the door or panel to open a full 180 degrees for versatile functionality.
- Steel Construction: Made of steel for long-lasting durability in cabinet and metal applications.
- Invisible, Flush-Fit Design: Provides a flush fit, compact size, and smooth operation, keeping hardware concealed for a clean, superior appearance.
- Radius Corner Type: Features a radius corner design suited for cabinet and metal door applications.
- Light Duty Rating: Suited for light duty commercial cabinet and metal applications where reliable, concealed hinge performance is required.
- Convenient Packaging: Packaged 2 per bag as 1 pair, with 10 pair per package container, and priced per pair for straightforward ordering.
Technical Specifications
- Subcategory: Hinges and Pivots
- Commercial/Residential: Commercial
- Product Group: Door Hinges and Pivots
- Product Type: Hinges and Pivots
- Duty Level: Light Duty
- Electronic: No
- Corner Type: Radius
- Series: 314 Series
- Product Size: 1-33/64"
- Product Category: Door Hinges and Pivots
- Department: Door Hardware
- Application: Cabinet, Metal
- Min. Material Thickness: No
- Fire Rating: No
- Power Transfer: No
- Closer: No
- Counter Bored Screw Holes: No
- Screws Included: No
- Packaging: 2 / Bag = 1 Pair
- Packages Per Container: 10 Pair
- Price Per: Pair
- Max. Material Thickness: 1/8″
Typical Applications
- Commercial Office Buildings
- Retail Establishments
- Healthcare Institutions
- Educational Facilities
- Multi-Tenant Residential Properties
- Industrial and Warehouse Facilities
- Government and Municipal Buildings
Why SOSS 314?
SOSS invisible hinges are built from steel for dependable, long-term performance in cabinet and metal door applications up to 1/8" thick. The full 180° single action opening and flush, concealed design deliver superior appearance without sacrificing durability or smooth operation. For professionals seeking a compact, reliable invisible hinge for light duty commercial cabinet applications, the SOSS 314 offers proven construction and consistent function.
Manufacturer Resources

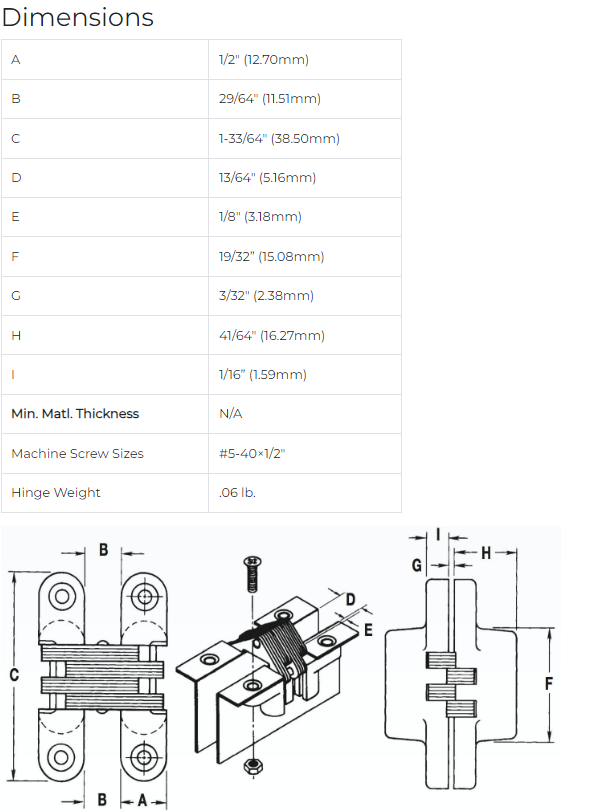

SOSS314 Hinge Location
Product Specs
- Subcategory:
- Hinges and Pivots
- Commercial/Residential:
- Commercial
- Product Group:
- Door Hinges and Pivots
- Product Type:
- Hinges and Pivots
- Product Subgroup:
- Invisible Hinges
- Duty Level:
- Light Duty
- Electronic:
- No
- Corner Type:
- Radius
- Series:
- 314 Series
- Product Function:
- Invisible Hinges
- Product Size:
- 1-33/64"
- Product Category:
- Door Hinges and Pivots
- Product Substrate:
- Steel
- Department:
- Door Hardware
SOSS 314US26D – Frequently Asked Questions
1) Will the SOSS 314 invisible hinge work on sheet metal cabinet doors?
Yes, as long as the metal is no more than 1/8 inch thick. The 314 is built specifically for metal applications at or under that thickness, which covers most sheet metal cabinet doors and panels. Go any thicker and you are outside what this hinge is cut for.
2) What size is the SOSS 314 invisible hinge?
The 314 measures 1-33/64 inches, which is what you rout for. It is the compact end of the SOSS invisible line, matched to cabinet doors and small metal panels rather than full-size entry doors. On a taller or heavier door you want a larger SOSS invisible model, not more of these.
3) Are screws included with the SOSS 314 hinge?
No. Fasteners are not in the bag, and the 314 does not have counter bored screw holes, so plan your mounting hardware around the metal you are fixing into. You get the hinges only.
4) Is the SOSS 314 heavy enough for a full-size commercial door?
No. It is rated light duty and sized for cabinet and metal panel work. A commercial passage or entry door needs a heavier invisible hinge in a larger size. Use the 314 for access panels, metal cabinet doors, and similar light applications.
5) How far does a SOSS 314 hinge let a cabinet door swing open?
A full 180 degrees. It is a single action hinge, so the door swings one way only, out to flat against the adjacent face. If you need the panel to swing both directions, this is the wrong hinge.
6) How many SOSS 314 hinges come in a pack?
They ship 2 per bag, which is 1 pair, and pricing is per pair. A case holds 10 pair. If you are hanging a run of cabinet doors, order by the pair count you need, not by the individual hinge.
7) Does the SOSS 314 need square or radiused mortise corners?
Radius. The 314 has a radius corner type, so the pocket you rout can be cut with a router bit and left with rounded corners, no chiseling square. That is the faster prep on metal cabinet work.
8) What is the SOSS 314 hinge made of?
Steel throughout. That is what carries the load in a concealed hinge this small, since there is no exposed barrel doing the work. Note it is steel rather than a corrosion-resistant alloy, so it belongs in interior cabinet and panel work.
9) Does the SOSS 314 invisible hinge have any electrical or power transfer option?
No. The 314 is mechanical only, with no power transfer through the hinge and no closer built in. If you need to run wiring to an electrified lock or contact in a metal cabinet, that has to be handled by a separate power transfer device.
