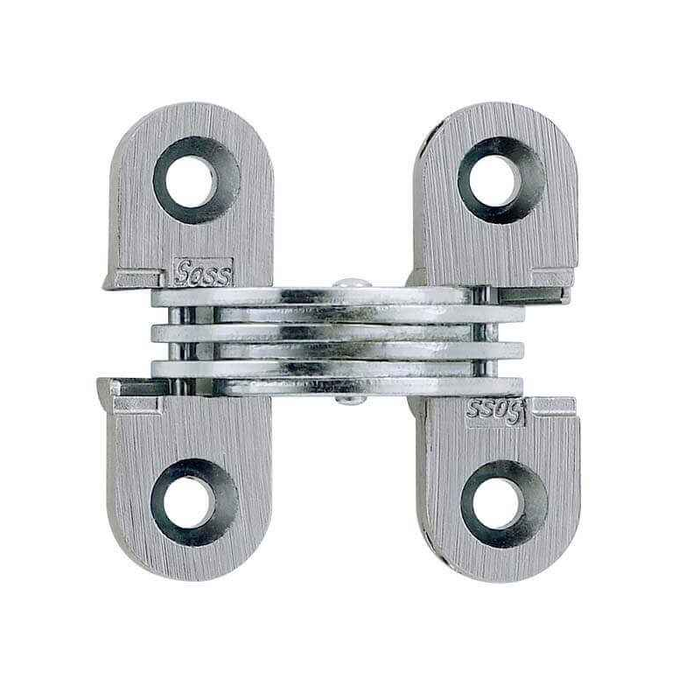

SOSS 114 Series 1-1/2" Invisible Hinge for Metal Cabinet Applications

SOSS 114 Series 1-1/2" Invisible Hinge for Metal Cabinet Applications

(No reviews yet) Write a Review

Model: 114US26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$28.39
$24.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SOSS 114 Series 1-1/2" Invisible Hinge for Metal Cabinet Applications

The SOSS 114 Series Invisible Hinge is a 1-1/2" single action hinge engineered for metal cabinet applications no more than 1/8" thick. Constructed of zinc and steel materials, the model #114 opens a full 180° and disappears completely into the door and frame when closed, delivering a clean, flush appearance. This compact, light-duty hinge is ideal where smooth operation, small footprint, and superior finish quality are essential design requirements.

Key Features

  • Compact Cabinet Sizing: 1-1/2" size designed specifically for metal cabinet applications up to 1/8" thick.
  • 180° Full Swing: Single action operation allows the door to open a full 180° for maximum accessibility.
  • Zinc and Steel Construction: Durable metal components provide superior appearance and long-term durability in cabinet applications.
  • Invisible Flush-Fit Design: Concealed when the door is closed, offering a clean, seamless appearance with a compact profile and smooth operation.
  • Radius Corner Type: Corner profile designed for precise, professional-grade fit in cabinet door preparation.
  • Light Duty Rating: Suited for cabinet-scale applications where flush fit and appearance take priority over heavy-duty demands.
  • Convenient Pair Packaging: Packaged 2 per bag (1 pair), with 10 pair per container, simplifying ordering for single or bulk cabinet projects.
  • Optional Screws: Screws are available for an additional charge, allowing flexibility based on installation needs.

Technical Specifications

  • Subcategory: Hinges and Pivots
  • Commercial/Residential: Commercial
  • Product Group: Door Hinges and Pivots
  • Product Type: Hinges and Pivots
  • Duty Level: Light Duty
  • Electronic: No
  • Corner Type: Radius
  • Series: 114 Series
  • Product Size: 1-1/2"
  • Product Category: Door Hinges and Pivots
  • Department: Door Hardware
  • Application: Cabinet, Metal
  • Min. Material Thickness: NA
  • Fire Rating: No
  • Power Transfer: No
  • Closer: No
  • Counter Bored Screw Holes: No
  • Screws Included: None
  • Packaging: 2 / Bag = 1 Pair
  • Packages Per Container: 10 Pair
  • Price Per: Pair
  • Max. Material Thickness: 1/8″

Typical Applications

  • Metal Cabinet Doors
  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why SOSS 114?

SOSS 114 Series hinges are built with durable zinc and steel construction to deliver reliable performance and a superior flush appearance in metal cabinet applications. The full 180° single action swing and compact 1-1/2" size make this hinge a trusted choice for professionals who require smooth, dependable operation and a clean, invisible fit. Backed by SOSS engineering expertise, this hinge is a dependable solution for light-duty commercial cabinet hardware needs.

Product Specs

Subcategory:
Hinges and Pivots
Commercial/Residential:
Commercial
Product Group:
Door Hinges and Pivots
Product Type:
Hinges and Pivots
Product Subgroup:
Invisible Hinges
Duty Level:
Light Duty
Electronic:
No
Corner Type:
Radius
Series:
114 Series
Product Function:
Invisible Hinges
Product Size:
1-1/2"
Product Category:
Door Hinges and Pivots
Product Substrate:
Zinc and Steel
Department:
Door Hardware

SOSS 114US26D – Frequently Asked Questions

1) Will the SOSS 114 invisible hinge work on a metal cabinet door made of 1/8 inch material?
That is exactly what the 114 is sized for. It's a 1-1/2 inch single action invisible hinge for metal cabinet applications no more than 1/8 inch thick. If your cabinet door or frame stock is heavier than 1/8 inch, the 114 is the wrong size and you want a larger SOSS invisible hinge instead.
2) Do SOSS 114 hinges come with screws?
No screws in the bag. The 114 ships as hinges only, and screws are a separate line item at additional charge, so add them to the order if you don't already stock the right fastener for sheet metal. Worth catching before the install crew is on site with nothing to fix the hinge down.
3) Can I use SOSS 114 invisible hinges on a full size metal entry or office door?
No. The 114 is a light duty hinge at 1-1/2 inches, built for cabinet scale work, not for hanging a passage or entry door. For a full size door you need a larger, heavier SOSS invisible hinge sized to the door's weight and thickness. Use the 114 where the appearance of a flush, concealed hinge matters and the load is a cabinet door.
4) How do I lay out the mortise for a SOSS 114 hinge, and what corner profile does the pocket need?
The 114 has a radius corner, so the routed pocket needs matching radiused ends rather than square corners. SOSS publishes a hinge location guide and a sizing chart for the 114 that give the placement and cut dimensions, both available as PDFs on the product record. Get the pocket right the first time, since an invisible hinge has no leaf to cover an oversized cut.
5) Are SOSS 114 hinges rated for a fire door?
No. The 114 carries no fire rating, so keep it off any labeled opening. It's a light duty cabinet hinge, and a fire rated assembly needs hardware listed for that assembly.
6) How much does a SOSS 114 hinge open, and will the cabinet door clear the adjacent door or wall?
The 114 opens a full 180 degrees in single action. Swung all the way back, the door lies flat against the cabinet face, so plan for the leaf to travel into whatever sits beside it. Closed, the hinge disappears completely into the door and frame, so there's no knuckle sticking out to foul a neighbouring door.
7) What finishes does the SOSS 114 hinge come in?
Two: unplated (UNP) and 626 satin chrome. Unplated is the one to take if you're painting or powder coating the cabinet and want the hinge to finish out with it. 626 satin chrome matches the standard commercial satin chrome finish used on most other door and cabinet hardware, so pick that one when the hinge will be seen at all with the door open.
8) Is the SOSS 114 hinge handed, do I need to order left and right?
No handing to specify. The 114 is ordered by size and finish only, 1-1/2 inch in either unplated or 626 satin chrome, and the same hinge serves either swing. What decides your order is quantity in pairs and which finish you want.
9) Should I use an invisible hinge like the SOSS 114 or a standard butt hinge on a metal cabinet?
It comes down to whether you want to see the hinge. The 114 mortises into both the door and the frame and vanishes when the door is closed, so nothing breaks the cabinet face and there's no exposed barrel to catch on. That flush look costs you a routed pocket in both halves. A butt hinge or a concealed European style hinge is faster to install and adjustable after the fact. Take the 114 where appearance and a small footprint drive the design and the cabinet is metal at 1/8 inch or less.
10) What is the SOSS 114 hinge made of, and will it hold up in a healthcare or school building?
Zinc and steel throughout. It's specified as commercial grade hardware and gets used in offices, schools, healthcare, retail, government buildings and multi-tenant residential. Keep it to cabinet duty within those facilities, since the duty level is light.
11) Does the SOSS 114 need power or a wire run through the door?
No. The 114 is a purely mechanical hinge, with no electronic function and no power transfer through it. If you need to carry current to a cabinet door for a lock or a switch, that has to come from separate hardware.
12) Do the SOSS 114 hinge screw holes need to be counterbored in the cabinet?
No counterboring. The 114 does not have counter bored screw holes, so the prep is the hinge pocket itself plus the screw holes, with no extra recess to machine for the fastener heads.
