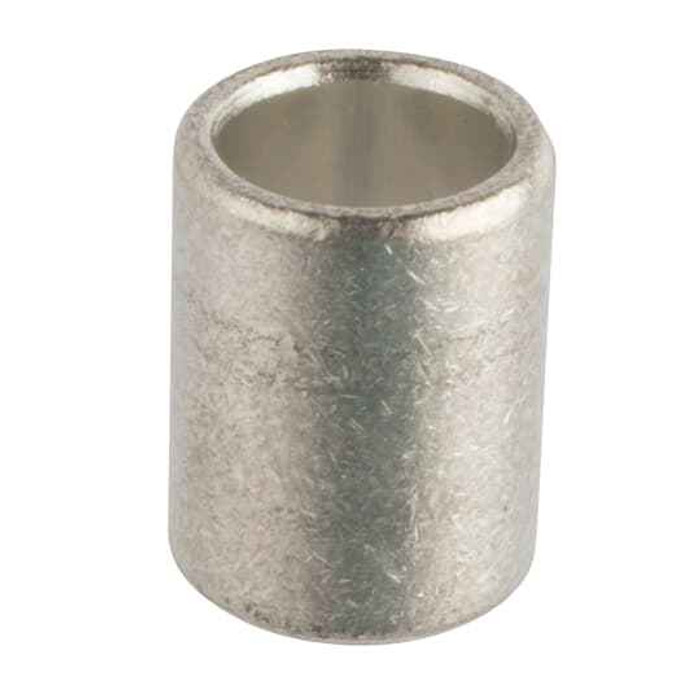

SPECIAL PARALLEL SPLICE 2 AWG
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Subgroup:
- Splices
- Product Type:
- Non-Insulated Parallel Splice
- Voltage Rating:
- 600 V
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon CLG2PSW – Frequently Asked Questions
1) What wire size does the Sta-Kon CLG2PSW parallel splice take?
The CLG2PSW is sized for 2 AWG conductor. It is a parallel splice, so both conductors enter the same side of the barrel and run side by side rather than butting end to end. Both wires going in should be 2 AWG for a proper crimp.
2) Is the CLG2PSW splice insulated, or do I need to tape or heat shrink it?
It is a non-insulated splice, so the crimped barrel is bare copper when you are done. You have to insulate it yourself with heat shrink, tape, or an insulating cap rated for the circuit voltage. If you want insulation built in, look for an insulated splice instead.
3) Can I use a parallel splice instead of a butt splice to tap two wires running the same direction?
That is exactly what a parallel splice is for. A butt splice joins two conductors coming from opposite directions, end to end. The CLG2PSW accepts both 2 AWG conductors from the same side so they lie parallel, which is what you want when you are pigtailing or extending a run and both leads come from one direction. For an end-to-end joint, use a butt connector instead.
4) What voltage is the Sta-Kon CLG2PSW rated for?
600 V. That covers standard commercial and industrial branch circuits, panel feeders, and motor leads at 120/208, 277/480 and similar. Because the barrel ships bare, the insulation you apply over the finished crimp needs to be rated to 600 V as well.
5) Will the CLG2PSW work on aluminum conductor?
No. It is a copper splice and should be used on copper conductors. Aluminum needs a connector listed AL9CU or aluminum-only, with the proper compound, otherwise you get galvanic corrosion at the joint.
6) Does the CLG2PSW crimp with a hand tool or does it need a hydraulic crimper?
At 2 AWG the barrel is heavy enough that it is a compression-tool job, not a plier-style hand crimper. Plan on a hydraulic or long-handle ratchet crimper with the die that matches a 2 AWG copper barrel. A soldered or undercrimped joint on a splice this size will heat up under load.
7) What is the exact part number and country of origin for the Sta-Kon 2 AWG parallel splice?
Order it as Sta-Kon CLG2PSW. It is a bare metallic copper parallel splice made in Mexico. One model, no finish or size options to pick.
