Intermatic FD12HWC Decorator Spring Wound Countdown Timer 125-277 VAC 12-Hour SPST White

Intermatic FD12HWC Decorator Spring Wound Countdown Timer 125-277 VAC 12-Hour SPST White

Professional Energy Management & Load Control Solution

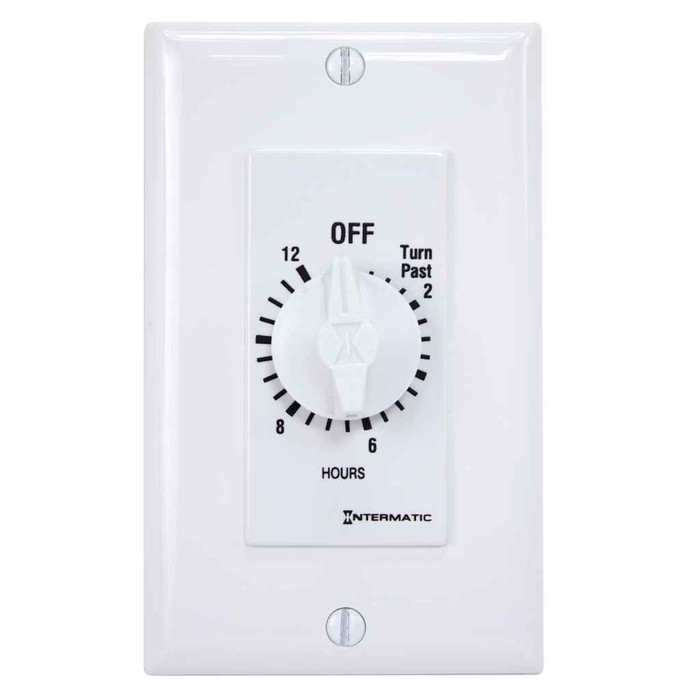

The Intermatic FD12HWC Decorator Spring Wound Countdown Timer delivers reliable automatic load control with 125-277 VAC compatibility and 12-hour maximum timing capability. This SPST (Single-Pole Single-Throw) timer features decorator styling in white finish and operates without electricity, making it ideal for energy-saving applications across residential and commercial installations.

Professional Features & Benefits

• 125-277 VAC Wide Voltage Range: Compatible with both residential and commercial electrical systems for versatile installation flexibility.
• 12-Hour Maximum Timer: Provides extended timing control for long-duration applications while automatically limiting ON time for energy savings.
• Spring Wound Operation: Requires no electricity to operate, ensuring reliable performance even during power fluctuations or outages.
• SPST Configuration: Single-pole single-throw design simplifies wiring and provides clean circuit breaking at end of timing cycle.
• Decorator Style Design: Professional white finish integrates seamlessly with modern wall switch installations and multi-gang configurations.
• Universal Load Compatibility: Works with incandescent, fluorescent, CFL, and LED lighting plus motor control applications.
• No Neutral Required: Simplified installation with teeter-type terminals and no neutral connection requirement.

Technical Specifications

• Applications: Air Movement & Ventilation;Indoor Lighting Control;Outdoor Lighting Control;Motor Control
• Country Of Origin: Tunisia
• Depth: 1.25 in
• Input Voltage Rating Range S : 125-277 VAC, 50/60 Hz
• Marketing Description: The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wa
• Product Color: White
• Product Height: 4.125 in
• Product Length: NA NA
• Product Weight: NA lbs
• Product Width: 1.75 in
• Warranty Period: 1-Year limited

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential bathroom ventilation fan control
• Commercial lighting energy management
• Outdoor security and landscape lighting
• Motor-driven equipment timing control
• Multi-unit property common area lighting
• Professional office energy conservation
• Retail establishment automated lighting

Why Choose Intermatic Quality?

Intermatic delivers proven reliability with this 1-year limited warranty countdown timer featuring robust spring wound mechanism and decorator styling. The wide 125-277 VAC voltage range and white finish ensure professional performance and aesthetic integration across diverse commercial and residential applications.
