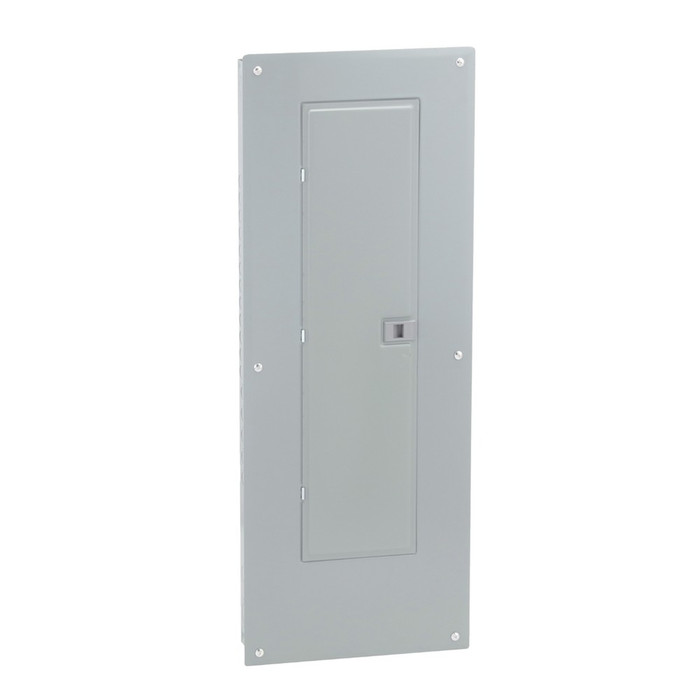

Square D HOM-L225PC Homeline 225A Convertible Main Lugs Load Center, NEMA 1

Square D HOM-L225PC Homeline 225A Convertible Main Lugs Load Center, NEMA 1

(No reviews yet) Write a Review

Model: HOM4284L225PC

In Stock (leaves warehouse same day if ordered before 3pm ET)

$376.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
"

Square D HOM-L225PC Homeline 225A Convertible Main Lugs Load Center, NEMA 1

The Square D Homeline HOM-L225PC series is a single phase, 3 wire, 225.0 A convertible main lugs (PoN) load center rated 120/240 V AC, housed in a NEMA 1 indoor enclosure with a combination flush/surface cover. This Homeline family is available in 42-space / 84-circuit and 60-space / 120-circuit configurations, giving installers flexibility to match panel capacity to the branch circuit load of the job. Every configuration accepts a full complement of Homeline circuit breakers, ground fault circuit breakers, and arc fault interrupters for reliable branch circuit protection, and each is UL Listed (file E-6294) for fast, code-compliant installation in residential electrical service applications.

Key Features

  • Capacity Options: Available in 42-space/84-circuit and 60-space/120-circuit configurations for right-sized branch circuit distribution.
  • Convertible Main Lugs: 225.0 A bus rated current with PoN (plug-on neutral) convertible main lugs configuration shared across the series.
  • Electrical Connection: Lugs accept AWG 4...250 kcmil copper or AWG 4...300 kcmil aluminum conductors.
  • Voltage & Phase: Rated 120/240 V AC, 1 phase, 3 wire.
  • Short Circuit Current Rating: 10 kA for dependable fault protection.
  • Durable Construction: Welded sheet steel enclosure with tin plated aluminum busbar for long service life.
  • Finish: Baked enamel gray surface finish resists wear.
  • Cover Type: Combination flush/surface cover fits both installation styles.

Certifications & Compliance

  • UL Listed (file E-6294)
  • NEMA 1 Indoor Enclosure Rating
  • RoHS EU Compliant (In Scope, COMPLIANT status)
  • Free of Substances of Very High Concern above the threshold (REACH)
  • Green Premium Product

Technical Specifications

  • Range Of Product: Homeline
  • Load Center Type: PoN Convertible Mains (lugs)
  • Available Configurations: 42-Space/84-Circuit or 60-Space/120-Circuit
  • Bus Rated Current: 225.0 A
  • Short Circuit Current: 10 kA
  • Ue Rated Operational Voltage: 120/240 V AC
  • Phase: 1 phase 3 wires
  • Electrical Connection: lugs
  • Enclosure Material: welded sheet steel
  • Surface Finish: baked enamel Gray
  • Cover Type: combination flush/surface cover
  • Material: tin plated aluminium busbar
  • Nema Degree Of Protection: NEMA 1 indoor enclosure
  • Product Certifications: UL listed file E-6294
  • Ambient Air Temperature For Operation: -5 °C to 40 °C
  • Product Or Component Type: Load Center
  • Toxic Heavy Metal Free: Yes
  • Mercury Free: Yes

Typical Applications

  • Residential Electrical Service Panels
  • Branch Circuit Protection for Single Family Homes
  • Load Center Upgrades and Replacements
  • New Construction Electrical Distribution
  • Panel Conversions to Main Lugs Configuration

Why Square D?

Square D Homeline load centers combine welded sheet steel construction, a tin plated aluminum busbar, and a NEMA 1 indoor enclosure to deliver dependable, code-compliant electrical distribution across every capacity in the family. Backed by UL Listing and a 10 kA short circuit current rating, this Homeline convertible main lugs load center series is built for fast installation and long-term reliability in residential service applications, whether the job calls for 42 spaces or 60 spaces. Recognized as a Green Premium product, it also reflects Square D's attention to material transparency and environmental compliance.

"

Manufacturer Resources

Product Specs

Product Type:
Load Center
Voltage Rating:
120/240V
Amperage Rating:
225A
Connection Type:
Lugs
Configuration:
NEMA 1 Enclosure
Product Finish:
Baked Enamel
Listing:
UL Listed
Series:
Homeline
Department:
Electrical
Product Group:
Power Distribution
Product Material:
Steel
Product Subgroup:
Panelboards & Load Centers
Country Of Origin:
United States
Product Depth:
3.74 in
Product Width:
14.25 in

Square D HOM4284L225PC – Frequently Asked Questions

1) What size conductors will the Square D HOM-L225PC main lugs accept?
The lugs on the Homeline HOM-L225PC take AWG 4 through 250 kcmil copper, or AWG 4 through 300 kcmil aluminum. That covers the usual 4/0 aluminum or 2/0 copper feeder used on a 200A residential service, as well as larger parallel-free runs up to the 225A bus rating.
2) Can the HOM-L225PC be used as a service entrance panel, or does it need a main breaker?
As shipped it is a main lugs only panel, so there is no main disconnect in it. That makes it a subpanel or a feeder-fed distribution panel unless an upstream disconnect provides the service overcurrent protection. It is a convertible design, so a Homeline main breaker kit can be added to convert it to main breaker service equipment.
3) Will the HOM-L225PC fit in a 14-1/4 inch wide stud bay opening, and how deep is the can?
The enclosure measures 14.25 in wide and 3.74 in deep. The 3.74 in depth clears a 2x4 wall with standard drywall, and the combination flush/surface cover lets you mount it recessed in framing or surface mount it on finished wall or block.
4) Can I install the Square D Homeline 225A load center outdoors or in a garage?
No. The HOM-L225PC is a NEMA 1 indoor enclosure, so it is for dry indoor locations only. An attached garage or basement is fine; an exterior wall or damp location needs a NEMA 3R rated can instead, such as the Eaton CH 125A main lug loadcenter in NEMA 3R or the ABB PAM ReliaHome NEMA 3R aluminum enclosure. Operating ambient is -5 C to 40 C.
5) Should I order the 42-space or the 60-space version?
Two capacities are offered: HOM4284L225PC at 42 spaces / 84 circuits, and HOM60120L225PC at 60 spaces / 120 circuits. Both carry the same 225A bus, so the choice is purely about how many branch circuits you need to land, not about capacity. Count your circuits, then leave room for the tandem-capable spaces and future AFCI/GFCI additions, which are full-size one-inch breakers and cannot be doubled up.
6) What breakers fit a Homeline HOM-L225PC panel?
It takes the Homeline breaker line, including standard thermal-magnetic, GFCI, and AFCI (arc fault) breakers. It is a plug-on neutral bus, so Homeline plug-on neutral GFCI and AFCI breakers land without a pigtail to the neutral bar. Square D QO breakers do not fit a Homeline panel.
7) I need a main lug load center mounted outdoors - is the Square D HOM-L225PC the right choice?
No. The HOM-L225PC Homeline load center is built in a NEMA 1 indoor enclosure, which is not suitable for a wet or outdoor location. For an exterior wall, look at a rainproof-rated panel such as the Eaton CH2L, a CH series 125A main lug loadcenter with a copper bus in a NEMA 3R enclosure, or the ABB PAM ReliaHome load center, which uses a NEMA 3R aluminum enclosure with a plug-on neutral bus. Both of those are main lug panels like the Homeline, so the wiring approach is the same; confirm the ampere rating against your feeder, since the CH unit is a 125A panel.
8) Is the 10 kA short circuit rating enough for my service?
The HOM-L225PC bus is rated 10 kA short circuit current at 120/240V AC, single phase, 3 wire. That covers typical residential and light commercial services fed from a utility transformer at normal distances. If the available fault current calculated at your service point exceeds 10 kA, you need a higher SCCR panel or series-rated upstream protection.
9) Will this Homeline panel work on a 208V three phase feed?
No. It is a single phase, 3 wire panel rated 120/240V AC. For a three phase system you need a three phase panelboard, not a Homeline residential load center.
10) How does this compare to an Eaton BR or CH main lug load center?
The Square D unit is a 225A Homeline bus in a NEMA 1 welded steel can with a tin plated aluminum busbar. The Eaton BRP24L125GW is a 125A BR series main lug only panel with an aluminum bus in NEMA 1, and the Eaton CH2L is a 125A CH series main lug panel with a copper bus in NEMA 3R. If you need more than 125A of bus capacity, or you are matching existing Homeline breakers in a building, the Square D is the one that fits. Breakers are not interchangeable between Homeline, BR, and CH.
11) Is the Square D HOM-L225PC UL Listed for a permit inspection?
Yes, it is UL Listed under file E-6294, and the enclosure is NEMA 1 rated for indoor use. It is also RoHS compliant and a Green Premium product, which helps on jobs with material transparency requirements. Built in the United States.
12) Is the ABB ReliaHome PAM load center a substitute for a Square D Homeline 225A main lugs panel?
They overlap in concept but not in application. The ABB PAM ReliaHome load center is a plug-on neutral panel in a NEMA 3R aluminum enclosure, which is an outdoor-rated box; the Square D HOM-L225PC is a plug-on neutral convertible main lugs panel in a NEMA 1 indoor enclosure of welded sheet steel. Beyond the enclosure, breaker interchange is the hard limit - Homeline panels are populated with Homeline breakers, GFCI and AFCI included, so swapping panel brands means re-buying the breaker set for the job.
13) For a smaller subpanel where 225A is more than I need, what is a lighter-duty alternative to the HOM-L225PC?
If the load calculation lands well under the 225A bus of the Homeline HOM-L225PC, a 125A main lug panel covers the job in a smaller box. Indoors, the Eaton BRP24L125GW is a BR series 125A main lug only loadcenter with aluminum bus in a NEMA 1 enclosure. For an outdoor subpanel at the same capacity, the Eaton CH2L is a 125A main lug CH panel with copper bus in NEMA 3R. The Homeline remains the choice where you want 42 spaces / 84 circuits or 60 spaces / 120 circuits of branch capacity on a 225A bus.
14) What is the enclosure made of and how is it finished?
Welded sheet steel with a baked enamel gray finish, and a tin plated aluminum busbar inside. The baked enamel holds up in utility rooms and mechanical spaces where a painted can gets knocked around, though it is still an indoor-only NEMA 1 box.
