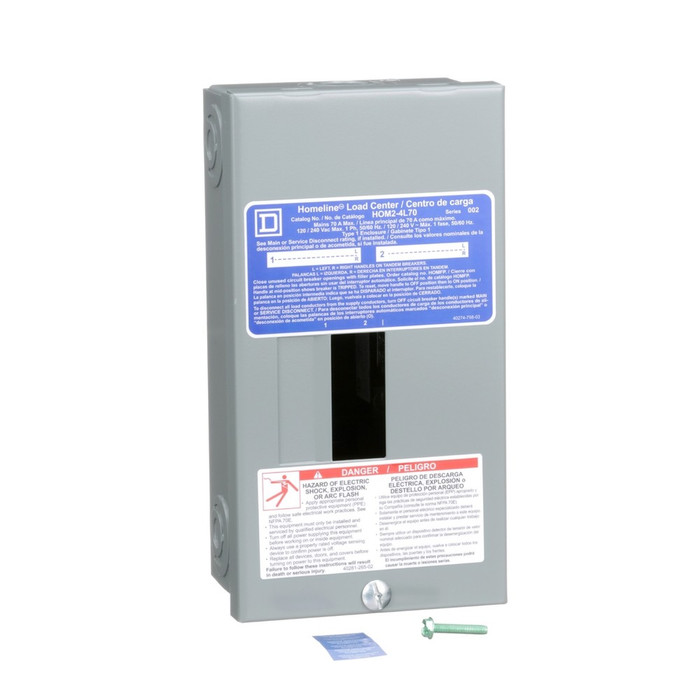

Square D HOM-S Homeline Load Center, 6-Space/12-Circuit, Fixed Main Lugs

Square D HOM-S Homeline Load Center, 6-Space/12-Circuit, Fixed Main Lugs

(No reviews yet) Write a Review

Model: HOM24L70S

In Stock (leaves warehouse same day if ordered before 3pm ET)

$41.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Square D HOM-S Homeline Load Center, 6-Space/12-Circuit, Fixed Main Lugs

The Square D Homeline HOM-S Load Center is a single-phase, 3-wire distribution panel configured with 6 spaces and 12 circuits, built around fixed main lugs for indoor NEMA 1 applications. Rated for a 100.0 A bus and 120/240 V AC operation, it accepts AWG 8 through AWG 1 aluminum or copper conductors and ships with a surface cover for straightforward installation. The Homeline platform is available with motor full-load-amp ratings spanning 70A to 100A depending on the accessory breakers installed, giving contractors flexibility to match the panel to job requirements. Enclosed in welded sheet steel with a baked enamel gray finish, it is engineered for reliable circuit protection using the full Homeline breaker, ground fault, and arc fault accessory line.

Key Features

  • Configuration: 6 spaces, 12 circuits for compact single-phase distribution.
  • Fixed Main Lugs: Lug electrical connection accepts AWG 8...AWG 1 aluminum/copper conductors.
  • Bus Rated Current: 100.0 A bus for dependable load capacity.
  • Voltage & Phase: 120/240 V AC, 1 phase, 3 wires.
  • Short Circuit Current: 10 kA rated for fault protection.
  • Durable Construction: Welded sheet steel enclosure with tin-plated aluminum busbar for long-term reliability.
  • NEMA 1 Enclosure: Indoor rated enclosure with surface cover and baked enamel gray finish.
  • Operating Range: Rated for ambient air temperature from -5 °C to 40 °C.

Certifications & Compliance

  • UL Listed, file E-6294
  • NEMA 1 Indoor Enclosure

Technical Specifications

  • Warranty Period: Lifetime
  • Load Center Type: Fixed Mains (lugs)
  • Product Certifications: UL Listed, file E-6294
  • Bus Rated Current: 100.0 A
  • Toxic Heavy Metal Free: Yes
  • Mercury Free: Yes

Typical Applications

  • Residential and Light Commercial Electrical Distribution
  • Main Lug Panel for Service Entrance or Sub-Feed Applications
  • Indoor Load Center Installations, NEMA 1
  • Renovation and New Construction Projects
  • Compatible with Homeline Breakers, GFCI, and Arc Fault Interrupters

Why Square D?

Square D Homeline load centers pair a welded sheet steel enclosure and tin-plated aluminum busbar with a 10 kA short circuit rating and UL listing (file E-6294) for code-compliant performance. Backed by a lifetime warranty, the Homeline platform gives contractors and electricians a reliable, accessory-compatible foundation for single-phase circuit protection across a broad range of application requirements.

Manufacturer Resources

Product Specs

Product Type:
Load Center
Voltage Rating:
120/240V
Connection Type:
Lugs
Configuration:
6-Space/12-Circuit
Product Finish:
Baked Enamel Gray
Listing:
UL Listed
Series:
Homeline
Product Material:
Welded Sheet Steel
Department:
Electrical
Product Group:
Power Distribution
Product Subgroup:
Panelboards & Load Centers

Square D HOM24L70S – Frequently Asked Questions

1) Can the Square D Homeline HOM-S load center be used as a service entrance panel, or is it sub-panel only?
The HOM-S is a main lug panel, not a main breaker panel, so there is no built-in service disconnect. It is listed for service entrance or sub-feed use, but as a service panel it needs an upstream disconnect ahead of it. For a sub-panel fed from an existing panel, the lugs accept the feeder directly. Bus is rated 100 A at 120/240 V AC, single phase, 3 wire.
2) What size feeder conductors will fit the lugs on the Square D HOM-S load center?
The lugs take AWG 8 through AWG 1, aluminum or copper. If your feeder is larger than 1 AWG, this panel's lugs won't terminate it and you need a bigger load center.
3) Do Homeline breakers fit this panel, and can I use AFCI or GFCI breakers in it?
The HOM-S takes the Homeline breaker line, including Homeline ground fault and arc fault breakers. Homeline breakers are not interchangeable with Square D QO, or with Eaton BR or CH breakers, so a panel swap means a breaker swap.
4) Is the short circuit rating on the Homeline HOM-S high enough for my installation?
The HOM-S is rated 10 kA short circuit current. If the available fault current at your point of installation exceeds 10 kA, this panel is not the right choice and you need a higher AIC rated enclosure or series-rated upstream protection.
5) The HOM-S Homeline load center is indoor only - what should I use for an outdoor meter wall or exterior mount?
The HOM-S Homeline is a NEMA 1 indoor enclosure with a surface cover, so it is not suited to an exterior wall. For outdoor main lug distribution, the Eaton CH2L is a 125A main lug loadcenter with a copper bus in a NEMA 3R enclosure, and the ABB PAM ReliaHome is a NEMA 3R load center with an aluminum enclosure and plug-on neutral. Either of those handles the rain-tight location the Homeline NEMA 1 panel cannot.
6) What is the closest equivalent to the Square D HOM-S Homeline load center from another manufacturer?
The Eaton BRP24L125GW is the nearest match in function: it is a main lug only loadcenter with an aluminum bus in a NEMA 1 enclosure, rated 125A. The HOM-S Homeline is also a main lug (fixed lugs) panel with a 100A bus in a NEMA 1 indoor enclosure at 120/240V. The practical differences are the bus rating and the breaker family - the HOM-S takes Homeline breakers, GFCI and arc fault devices, while the Eaton panel takes BR series breakers, so existing breaker stock decides which way you go.
7) Can I swap an Eaton BR or CH loadcenter in place of a Square D Homeline panel and keep my breakers?
No. The HOM-S Homeline is built around the Homeline breaker, ground fault and arc fault accessory line. The Eaton BRP24L125GW is a BR series panel and the Eaton CH2L is a CH series panel, each with its own breaker interior. These panels look like substitutes because all three are main lug 120/240V style load centers, but the breakers do not interchange - swapping the can means swapping every breaker in it.
8) My subpanel feeder is sized for more than 100A - is the HOM-S Homeline still the right panel?
The HOM-S Homeline is built on a 100A bus and its lugs accept AWG 8 through AWG 1 aluminum or copper conductors, so it suits feeders within that range. For a larger feeder, both the Eaton BRP24L125GW (NEMA 1, aluminum bus) and the Eaton CH2L (NEMA 3R, copper bus) are 125A main lug loadcenters. Choose between those two on enclosure rating and bus material, and confirm your conductor size against the lug range on whichever you pick.
9) How many breakers actually fit in a 6-space 12-circuit Homeline panel?
Six full-size spaces, with a 12-circuit maximum when you use Homeline tandem breakers in the spaces that accept them. A single-pole full-size breaker takes one space; a two-pole breaker takes two. So a panel loaded entirely with full-size singles gives you six circuits, and tandems get you up to twelve.
10) What is the difference between the HOM24L70S and HOM612L100S Homeline load centers?
Both are 6-space/12-circuit main lug panels on a 100 A bus. They differ in motor full-load-amp rating: HOM24L70S is the 70A FLA version and HOM612L100S is the 100A FLA version, which depends on the accessory breakers installed. Pick the FLA rating that matches the motor load on the job.
11) Will a 100A Homeline main lug panel work for a 120/240V residential sub-panel in an unheated garage?
Electrically yes, for a 120/240 V single-phase sub-feed on a 100 A bus. The ambient temperature rating is -5 C to 40 C, so an unheated but enclosed garage is normally fine; the NEMA 1 enclosure means it cannot be exposed to weather or driving rain.
12) Which of these load centers has a copper bus instead of aluminum?
The Eaton CH2L is the copper bus option - it is a 125A main lug loadcenter with a copper bus in a NEMA 3R enclosure. The Square D HOM-S Homeline uses a tin-plated aluminum busbar inside a welded sheet steel enclosure, and the Eaton BRP24L125GW is also an aluminum bus panel. If your spec or inspector calls out copper bus, the CH2L is the one that meets it.
13) I need a load center with a plug-on neutral to simplify AFCI and GFCI breaker wiring - which one is that?
The ABB PAM ReliaHome load center is the plug-on neutral design, housed in a NEMA 3R aluminum enclosure. The Square D HOM-S Homeline is a conventional 6-space/12-circuit main lug panel at 120/240V that accepts Homeline GFCI and arc fault breakers with pigtail connections to the neutral bar. If you are stacking a lot of combination AFCI devices and want fewer neutral terminations, the plug-on neutral ReliaHome is the different approach.
14) Where is the Square D Homeline HOM-S load center made?
Country of origin is Mexico. Useful if you are filing origin documentation on an institutional or government job.
