Square D 2510KG Series Manual Motor Switch, 30A 3-Pole Toggle Disconnect

Square D 2510KG Series Manual Motor Switch, 30A 3-Pole Toggle Disconnect

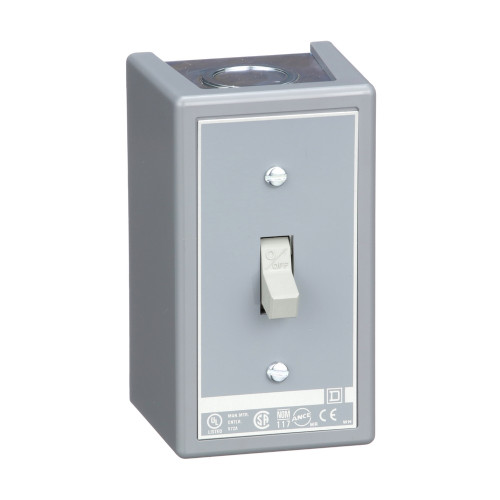

The Square D 2510KG Series Manual Motor Switch is a toggle-operated, 3-pole manual motor switch rated 30A, built for industrial, commercial, and residential applications where overload protection is not required or is provided separately. Rated up to 10 HP at 460V AC and 575V AC (with additional ratings at 115V/230V AC and 90V/230V DC), this Type K manual switch delivers a simple, economical On/Off control solution housed in a NEMA 1 general purpose, surface-mounting enclosure. A red pilot light indicator rated 440...600V AC provides at-a-glance status visibility.

Key Features

• Rated Current: 30A line rated current for reliable manual motor disconnect switching.
• Poles: 3-pole (3P) configuration suited for three-phase motor circuits.
• Horsepower Ratings: Up to 10 HP at 460V AC / 575V AC, 7.5 HP at 230V AC, 2 HP at 115V AC/DC, 1.5 HP at 230V DC, and 1 HP at 90V DC.
• Control Type: Toggle-operated manual On/Off control for simple, fast switching.
• Enclosure: NEMA 1 general purpose, plastic standard-size, surface-mounting enclosure.
• Local Signalling: Red indicator rated 440...600V AC for visible on-state confirmation.
• Wiring Capacity: Accepts AWG 14...AWG 10 copper conductors via screw clamp terminals.
• Cable Entry: 0.5" and 0.75" knockouts, top and bottom, for flexible conduit entry.

Certifications & Compliance

• UL Listed, File E42243, CCN NLRV
• CSA Certified, LR25490 Class 3211 05

Technical Specifications

• Warranty: 18 months
• Warranty Period: 18 months
• Sustainable Packaging: No
• Packaging Without Single Use Plastic: No
• Tier Id: 2
• ROHS Eur In Scope: Yes
• Recycled Metal Content At Cr Level: 0 %
• Poles Description: 3P
• China ROHS Label: 7
• Serviceability: No
• WEEE Product Category: 5
• Range Of Product: K
• China ROHS In Scope: Yes
• Take Back: No
• Tier: 2
• Reach Free Shvc: Yes
• Country of Origin: MEX
• Legacy WEEE Scope: In
• China ROHS Regulation: X
• Electrical Connection: screw clamp terminals
• Phase: 3 phase
• Control Type: toggle
• Device Type: LV equipment - LV switch - disconnector
• Without Single Use Plastic: No
• Traceability: No
• Reach Free Of Svhc: Yes

Typical Applications

• Industrial Motor Control and Disconnect Switching
• Commercial Electrical Installations
• Residential Motor Disconnects
• Panelboard and Motor Circuit Wiring
• New Construction and Renovation Projects

Why Square D?

Square D's 2510KG Series manual motor switch combines UL Listed and CSA Certified construction with a durable NEMA 1 enclosure and simple toggle operation, giving electricians and panel builders a dependable, code-compliant disconnect solution. Its straightforward design, red status indicator, and broad horsepower range make it easy to specify for a wide variety of motor control applications.
