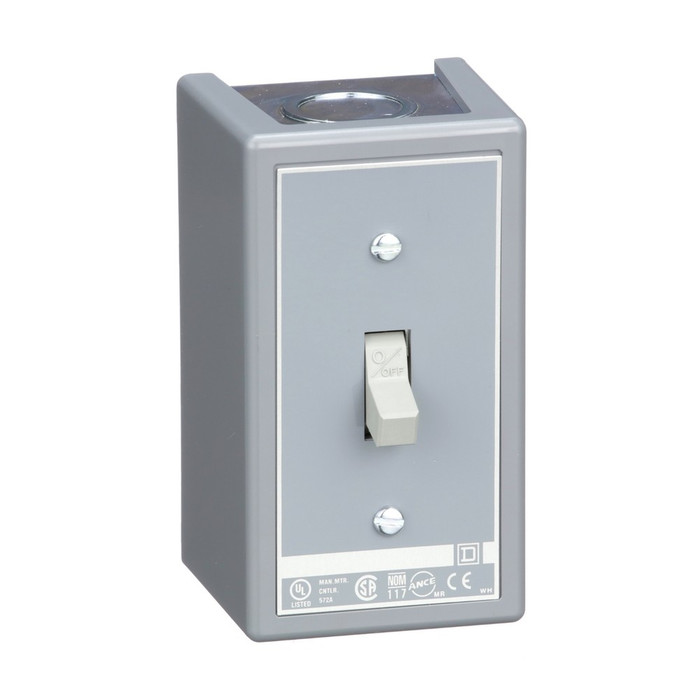

Square D Manual Motor Switch, 30A, 2-Pole, Toggle Operated

Square D Manual Motor Switch, 30A, 2-Pole, Toggle Operated

The Square D Manual Motor Switch, 30A, 2-Pole, Toggle Operated is a 2510K series manual motor switch designed for industrial, commercial, and residential applications where overload protection is not required or is provided separately. Rated 30A with a 2-pole configuration, this switch delivers 3 HP at 575 VAC single phase motor control, plus additional horsepower ratings across other voltages, and is housed in a NEMA 1 general-purpose plastic enclosure backed by UL and CSA listings. Toggle-operated with no pilot light indicator, it provides simple, reliable manual On/Off control for motor circuits without built-in overload protection.

Key Features

• Amperage Rating: 30A switch rating for dependable manual On/Off control of motor circuits.
• Poles: 2-Pole configuration suited to single-phase motor disconnect applications.
• Horsepower Ratings: 3 HP at 575 VAC single phase, plus 3 HP at 460V AC, 2 HP at 230V AC, 2 HP at 115V AC, 2 HP at 115V DC, 1.5 HP at 230V DC, and 1 HP at 90V DC.
• Toggle Operation: Toggle-operated switch with no pilot light indicator for straightforward, direct manual control.
• Enclosure: NEMA 1 general-purpose plastic enclosure designed for surface mounting.
• Wire Range: Accepts AWG 14...AWG 10 copper conductors.
• Cable Entry: 0.5" and 0.75" knock-outs, top and bottom, for flexible conduit entry.
• Motor Starter Type: Non-reversing switch design for single-direction motor control.

Certifications & Compliance

• UL Listed, File E42243, CCN NLRV
• CSA Certified, LR25490, Class 3211 05
• RoHS EUR Compliant

Technical Specifications

• Toxic Heavy Metal Free: Yes
• Warranty: 18 months
• Warranty Period: 18 months
• Sustainable Packaging: No
• Mercury Free: Yes
• Packaging Without Single Use Plastic: No
• ROHS Eur In Scope: Yes
• Recycled Metal Content At Cr Level: 0 %
• Poles Description: 2P
• Serviceability: No
• With Recycled Cardboard: No

Typical Applications

• Industrial Motor Control Installations
• Commercial Equipment Disconnects
• Residential Motor Applications
• Panel and Control Enclosure Wiring
• Renovation and New Construction Projects

Why Square D?

Square D manual motor switches are built for dependable, code-compliant performance in industrial, commercial, and residential motor control applications. With UL and CSA listings, mercury-free and toxic-heavy-metal-free construction, and RoHS compliance, this 2-pole, 30A switch delivers the reliable On/Off control professionals expect from Square D electrical products.
