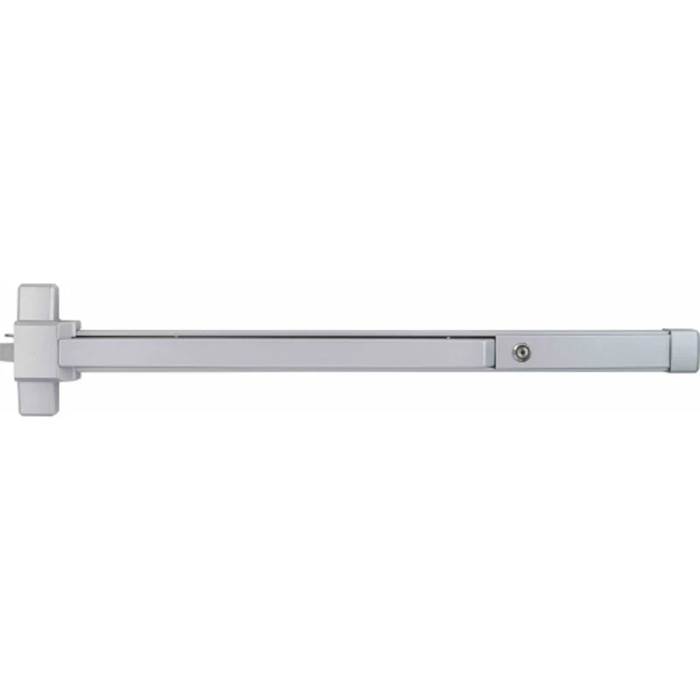

Stanley Security 36" Rim Exit Device, Hex Dogging

Stanley Security 36" Rim Exit Device, Hex Dogging

(No reviews yet) Write a Review

Model: QED311 36 689
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$459.00
$222.75
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Stanley Security 36" Rim Exit Device, Hex Dogging

When your application calls for reliable quality and durability, dormakaba’s QED300 standard-duty exit device series fills the need. For light commercial applications, including wood, steel, or aluminum doors, the QED300 line offers the same quality and robust construction you expect from dormakaba, at a great value.

Features:

  • More options. No matter what sort of light commercial application you work with, the QED300 series’ wide range of device types, trim selections, and enhanced security features allow the configuration you need.
  • Backed by a leading warranty. Each QED300 product comes with a lifetime mechanical warranty and a three year warranty on finish.
  • Reliable safety. The QED300 series is BHMA/ANSI grade 1 certified, and significantly exceeds performance requirements. The series includes a thru bolt design for enhanced security and durability.
  • Easy installation. The QED300 series comes non-handed and field reversible, and are also field sizeable to fit non-standard doors.
  • Tested and certified to significantly exceed 500,000 cycles required for grade 1 certification.
  • Field sizable. 36" to 32" door application (91.44cm-81.28cm).
  • Consistent styling allows for harmonization with other commercial hardware products.



Specifications:

  • Handing: All QED300 series exit devices are non-handed.
  • Door Thickness: 1-3/4" standard (44.5mm).
  • Latch Bolt: Stainless steel 3/4" throw (19mm).
  • Strike: Stainless steel body with plated steel roller standard fire-rated stainless steel strike, with stainless steel roller standard on QED313.
  • Fasteners: Wood and machine screws standard. Sex bolts optional. (standard on fire-rated device).
  • Head Cap and End Cap: Zinc die-cast.
  • Trims: Sierra, Summit and Slate styles available.
  • Escutcheon Offering: Dummy, passage, keyed, night latch.
  • Pull plate Offering: Dummy, thumb-piece, night latch, flat plate.
  • Stile Width: 3-7/8" minimum (98mm).
  • Dogging: Hex key dogging and cylinder dogging available.
  • Standard Backset: 2-1/4" (57mm) to face of doorstop.
  • Keyway options include: BF-SFIC “F”, KW-Kwikset, WE-Weiser, SC-Schlage, GA-Yale, LA-Sargent, LC-Less cylinder



Functions:

    • QED311: Rim hex dogging
    • QED312: Rim cylinder dogging
    • QED313: Rim fire rated
    • QED314: Surface vertical rod hex dogging
    • QED315: Surface vertical rod cylinder dogging
    • QED316: Surface vertical rod fire Rated
    • QED317: Surface vertical rod less bottom rod hex dogging
    • QED318: Surface vertical rod less bottom rod cylinder dogging
    • QED319: Surface vertical rod less bottom rod fire rated



Finishes:

  • 689 - Painted aluminum
  • 690 - Painted duranodic bronze

Manufacturer Resources

Product Specs

Series:
QED
Grade:
Grade 1
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices Trim
Product Type:
Rim Exit Devices
Commercial/Residential:
Commercial
Lock Type:
Exit Device Trim
Product Attribute:
Exit Devices Trim
Product Function:
Classroom/Storeroom
Product Function:
Office/Privacy/Apartment
Cylinder Classification:
Conventional Cylinder
Product Category:
Electronic Locks
Department:
Door Hardware

Stanley Security QED311 36 689 – Frequently Asked Questions

1) What is the minimum stile width for the QED300 rim device on an aluminum storefront door?
3-7/8 inches (98mm) minimum stile. Narrow stile aluminum doors below that will not take this device. Backset runs 2-1/4 inches (57mm) to the face of the doorstop, so confirm your stop location on a storefront frame before you drill.
2) Do I have to specify handing when I order a Stanley QED311 exit device?
No handing to specify. All QED300 series exit devices ship non-handed and are field reversible, so one part number covers left and right hand openings. That makes it simple to stock a single device across a building.
3) Is the QED311 fire rated, and what do I order for a fire door?
The QED311 is the hex dogging version and dogging is not permitted on a fire door. For a fire rated opening, order the QED313, the fire rated rim device in the same series, which comes with a stainless steel strike and stainless roller and uses sex bolts as standard.
4) Does a rim exit device work on a pair of doors?
A rim device latches into a strike at the jamb, so on a pair it needs a removable mullion between the leaves. If you cannot use a mullion, go to a surface vertical rod version in the same family: QED314 hex dogging, QED315 cylinder dogging, or QED316 fire rated, which latch at the head and threshold instead.
5) What else could I use instead of the Stanley QED311 rim exit device?
For a comparable Grade 1 rim device on a 36 inch door, the Delaney 8000 Series (non fire rated) is a straight alternative, and the Delaney 9000 Series 36 inch comes with an alarm kit and "C" cylinder if you need local alarm on the exit. Accentra's 1800, 2100, and 6100ED are Grade 1 rim devices built for wide stile doors, while the Accentra 6200 Series uses a narrow stile pushpad with a Pullman latch. Note that all of those comparables are listed as not wood door compatible; the Stanley QED300 series is stated for wood, steel, or aluminum.
6) What is the closest Grade 1 rim exit device to the Stanley QED311 if I need a fire-rated opening instead?
The QED311 is the hex dogging rim device in the QED300 series and is not the fire-rated member of that family; within the series the fire-rated rim function is the QED313, which uses a stainless steel strike with stainless steel roller. If you are sourcing a different brand for a fire-rated rim device, the Delaney F9000 Series 693302 is a Grade 1 fire rated heavy duty rim device sized for a 48 inch door. Dogging is the key difference to plan around: fire-rated rim devices do not dog open, so the hex key dogging you get on the QED311 will not be part of a fire-rated substitution.
7) My doors are narrow stile aluminum storefront. Is the Stanley QED311 right, or should I look at something else?
The QED300 series requires a 3-7/8 inch minimum stile and uses a 2-1/4 inch backset to the face of the doorstop, so confirm your storefront stile against that figure before committing. Among the alternatives, the Accentra 6200 Series is a 36 inch Grade 1 rim device built with a narrow stile pushpad and a Pullman latch, while the Accentra 1800, 2100 and 6100ED Series are wide stile designs. For a true narrow stile aluminum door, the narrow stile pushpad device is the closer geometry match.
8) What is the straight equivalent to the Stanley QED311 in hex key dogging?
The QED311 is a Grade 1 rim exit device with hex key dogging, non-handed and field reversible, field sizable from a 36 inch down to a 32 inch door application. The nearest like-for-like from another manufacturer is the Accentra 6100ED, a Grade 1 rim exit device with hex key dogging, though it is built as a wide stile pushpad device. If you want to stay in the Stanley QED300 family but key the dogging instead, the QED312 is the cylinder dogging rim function.
9) What door thickness does this Stanley exit device mount on?
1-3/4 inches (44.5mm) is the standard door thickness for the QED300 series, which is the normal commercial door. It mounts on wood, steel, or aluminum doors and uses a thru bolt design for security.
10) Will the QED311 latch into my existing rim strike?
The latch is a stainless steel Pullman style bolt with a 3/4 inch throw (19mm), and the device ships with its own stainless steel strike body with plated steel roller. If your existing strike was set for a different backset or throw, plan on using the supplied strike rather than reusing the old one.
11) What cylinder and keyway do I order with the Stanley QED exit trim?
It takes a conventional cylinder, and keyway choices are BF-SFIC "F", KW-Kwikset, WE-Weiser, SC-Schlage, GA-Yale, LA-Sargent, or LC-Less cylinder if you are supplying your own to match an existing master key system.
12) What outside trim can I get with the QED300 series?
Trim comes in Sierra, Summit, and Slate styles. Escutcheon trim is offered as dummy, passage, keyed, or night latch; pull plate trim as dummy, thumb-piece, night latch, or flat plate. Pick keyed or night latch for classroom, storeroom, office, or apartment style control, dummy or flat plate where the door is exit only.
13) Is hex key dogging or cylinder dogging better for holding a door in push-pull during business hours?
Hex dogging, as on the QED311, retracts the latch with an allen wrench, which is fine when only staff handle it. If you want the dogging controlled by a key on a master system so anyone with a wrench cannot unlock the door, order the QED312, the cylinder dogging version of the same rim device.
14) Is the Stanley QED300 rim device Grade 1, and how many cycles is it tested to?
Grade 1 under BHMA/ANSI, and the series is tested and certified to exceed the 500,000 cycles required for that grade. That is the level institutional and MRO buyers usually spec for high-traffic entries.
15) I need an exit device that sounds a local alarm. Does the Stanley QED311 do that?
The QED311 is a mechanical Grade 1 rim device with hex key dogging and no alarm function; the QED300 rim options are hex dogging, cylinder dogging, and fire rated. For an alarmed opening, the Delaney 9000 Series 9000-36ALC is a Grade 1 heavy duty rim device for a 36 inch door supplied with an alarm kit and a "C" cylinder. Note that the Delaney 9000 is listed as not wood door compatible, so it is a substitution for metal or aluminum openings.
16) What finishes does the Stanley QED311 come in and will it match my other door hardware?
Two finishes: 689 painted aluminum and 690 painted duranodic bronze, both offered in the 36 inch and 48 inch device lengths. The series uses consistent styling meant to harmonize with other commercial hardware, so a building standardizing on 689 aluminum storefront hardware can carry it through.
17) What fasteners come with the Stanley QED300 exit device?
Wood and machine screws are standard, which covers wood and steel door mounting out of the box. Sex bolts are an option and are standard on the fire rated device. Combined with the thru bolt design, that is what gives the pull-off resistance on an exterior entry.
