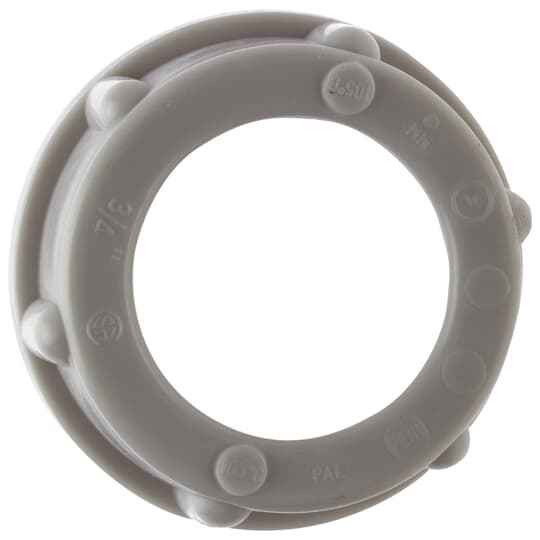

3/4 BUSHING,RGD/IMC,NM,INSUL,2/BG
Manufacturer Resources
Product Specs
- Product Group:
- Conduit & Raceway
- Product Type:
- Conduit Bushing
- Product Size:
- 3/4 Inch
- Number Of Batteries:
- 0
- Department:
- Electrical
- Product Type2:
- Insulated Bushing
- Product Subgroup:
- Conduit Fittings
Steel City BU502-2 – Frequently Asked Questions
1) Can I use the BU502 insulated bushing on EMT?
No. The BU502 is threaded for rigid and IMC conduit, so it will not thread onto EMT, which is unthreaded. For EMT you need an insulated throat connector or a set-screw/compression connector with an insulated throat.
2) I need to bond the conduit at the enclosure. Is this bushing the right part?
No. The BU502 is a plain non-metallic insulating bushing with no bonding provision. If the installation calls for a bonding jumper at the raceway termination, you need a grounding bushing with a lug, not this one.
3) What does NM mean on the Steel City BU502 bushing?
NM here is the non-metallic insulating material of the bushing body. The BU502 is an all non-metallic insulated bushing rather than a metal bushing with an insulated liner, so it is not a bonding component and does not provide a lug for a bonding jumper.
4) What does the insulated bushing on a 3/4 inch conduit actually do?
It caps the cut conduit end with a smooth insulating throat so conductors pulled through the raceway are not abraded by the metal thread edge. On rigid and IMC runs, code practice is to fit an insulating bushing wherever conductors leave the conduit into a box or enclosure. The BU502 covers 3/4 inch trade size.
How fast can I get the Steel City BU502-2 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Steel City BU502-2 come with a warranty?
Absolutely. The Steel City BU502-2 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Steel City BU502-2?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
