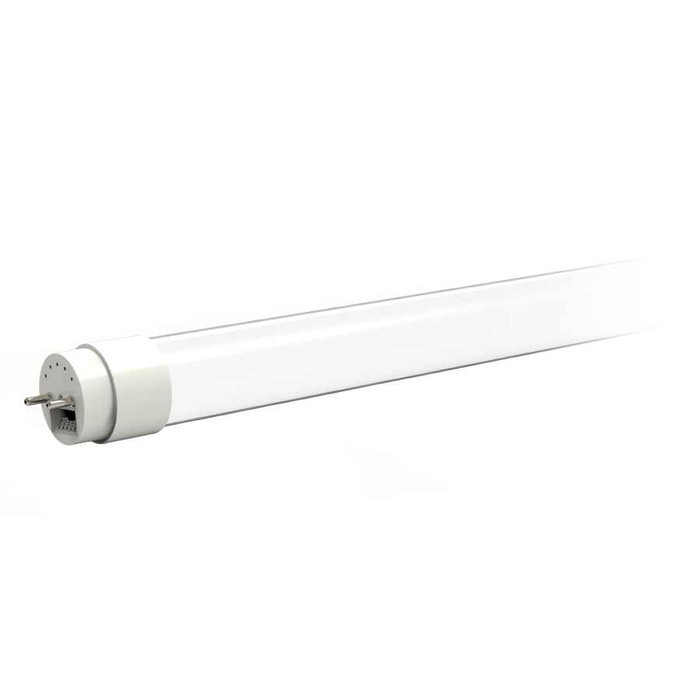

RAB 15W T8 LED Tube 4 Foot 2100 Lumens Type A+B Hybrid Selectable CCT 120V-277V White

RAB 15W T8 LED Tube 4 Foot Hybrid Selectable CCT

Professional-Grade LED Tube Lighting Solution

The RAB 15W T8 LED Tube delivers professional-grade linear lighting performance for commercial and industrial applications. This 4-foot glass LED tube features Type A+B hybrid operation designed for electrical contractors, lighting professionals, and facility managers, providing the reliable performance and industry-leading quality that lighting professionals demand.

Professional Features & Benefits

Advanced LED Performance

• High Efficacy Output - Delivers 2,100+ lumens with 145-151 lumens per watt efficiency for maximum energy savings
• Type A+B Hybrid Operation - Works with existing ballasts (Type A) or direct wire (Type B) for flexible installation options
• Selectable Color Temperature - Field-adjustable CCT allows customization for specific lighting requirements
• 50,000 Hour Lifespan - Long-life LED technology reduces maintenance costs and replacement frequency

Energy Efficiency & Compliance

• DLC Listed - Qualifies for utility rebates and energy efficiency programs
• Low Flicker Performance - Less than 40% flicker for comfortable visual environments
• Universal Voltage - 120V-277V operation for versatile commercial installations

Technical Specifications

15 watts power consumption, 2,124-2,218 lumens output, selectable color temperature, Type A (ballast dependent) or Type B (120V-277V direct wire) operation, 4-foot length (47.8 inches), 1.08-inch diameter, white finish, constant current driver, DLC 5.1 listed, 145-151 lumens per watt efficacy, 0.44 lbs weight.

Installation & Setup

1. Determine installation type - existing ballast (Type A) or direct wire (Type B) for optimal energy performance
2. Turn off power at circuit breaker and verify with non-contact voltage tester
3. Remove existing fluorescent tube and inspect fixture compatibility
4. For Type B installation, bypass ballast and connect directly to line voltage following wiring diagram
5. Install LED tube ensuring proper pin alignment and secure connection
6. Select desired color temperature using integrated switch before final installation
7. Restore power and verify proper operation and light output

Professional Applications

Ideal for:

• Commercial Office Lighting - Troffer fixtures, suspended ceiling applications, and general office illumination
• Industrial Facilities - Manufacturing areas, warehouses, and production floor lighting upgrades
• Retail Environments - Store lighting, display areas, and customer service zones
• Educational Facilities - Classrooms, libraries, and administrative areas requiring quality lighting
• Healthcare Applications - Patient rooms, corridors, and general healthcare facility lighting
• Hospitality Spaces - Hotels, restaurants, and service areas with existing fluorescent fixtures
• Government Buildings - Municipal facilities, offices, and public spaces requiring energy-efficient upgrades
• Warehouse Lighting - Storage areas, loading docks, and distribution centers

Hybrid Technology Advantage

RAB's Type A+B hybrid design provides maximum installation flexibility, allowing contractors to retrofit existing fluorescent fixtures with or without ballast removal. This dual-mode operation ensures compatibility with various fixture types while providing optimal energy efficiency and performance for professional lighting applications.

Why Choose RAB Quality?

RAB's commitment to DLC listing, professional-grade LED technology, and reliable performance makes this T8 tube ideal for lighting professionals. With selectable color temperature, hybrid operation, and 50,000-hour lifespan, this LED tube delivers the energy efficiency and code compliance that electrical contractors and facility managers require for successful lighting upgrades.
