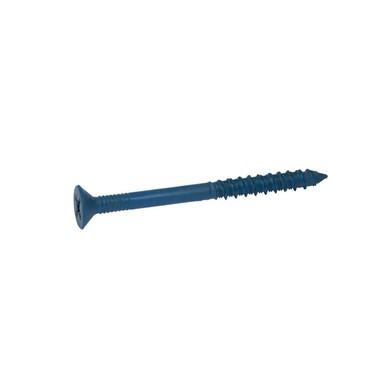

Tapcon Flat Head Concrete Screw, Blue Climaseal Coating, Box of 100
The Tapcon Flat Head Concrete Screw is engineered for dependable fastening into concrete, block, and masonry surfaces. Each screw features a flat head design for a flush, countersunk finish once installed, and is treated with a Blue Climaseal coating intended to help resist corrosion in demanding job-site conditions. Manufactured in the USA from US or Canadian steel, this Tapcon concrete screw ships in a convenient box of 100, making it a practical choice for contractors, builders, and DIY installers who need a reliable, job-ready supply of masonry fasteners on hand for everyday construction and repair work.
Key Features
- Flat Head Design: Provides a flush, countersunk seat when driven into concrete, block, or masonry, reducing surface protrusion for a clean finished appearance.
- Blue Climaseal Coating: A corrosion-resistant coating designed to extend the service life of the screw across a variety of indoor and outdoor job-site environments.
- Box Quantity: Packaged 100 screws per box, providing a job-ready quantity for commercial and residential projects without frequent reordering.
- Material & Origin: Made in the USA from US or Canadian steel, supporting consistent quality, strength, and domestic sourcing.
- Consistent Sizing: Uniform thread and head geometry across the box of 100 helps ensure predictable driving performance from screw to screw.
Technical Specifications
- Country of Origin: Made in the USA from US or Canadian Steel
- Box Quantity: 100
- Head Style: Flat Head
- Coating: Blue Climaseal
Typical Applications
- Anchoring Fixtures and Hardware to Concrete, Block, or Brick
- Commercial and Residential Construction Projects
- Renovation and Remodeling Applications
- DIY Home Improvement and Repair
- Masonry Fastening for New Construction
Why Tapcon?
Tapcon concrete screws are trusted by professionals for dependable masonry fastening. The Blue Climaseal coating on this flat head screw is intended to help guard against corrosion, while manufacturing in the USA from US or Canadian steel supports consistent quality and strength. With 100 screws packaged per box, this Tapcon concrete screw gives contractors, builders, and DIYers a reliable, ready-to-use supply for concrete and masonry fastening needs on any job site.
Specifications by Size
| Size | Part # | Pull-Out (lbs.)* | Shear (lbs.)* | Bit Size | Box Qty | Max. Fixture Thickness | Min. Edge Distance | Min. Embedment | Min. Fixture Hole Ø (Hole Spotted) | Min. Fixture Hole Ø (In Place) | Min. Spacing | Thread Length | Thread Type | Driver Size | UPC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/16" x 1-1/4" | PF-3114 | 600 | 720 | 5/32" | 100 | 1/4" | 2-1/4" | 1" | 1/4" | 1/4" | 3" | 1-1/4" | Threadform Technology™ | T-25 | 092097951501 |
| 3/16" x 1-3/4" | PF-3134 | 600 | 720 | 5/32" | 100 | 3/4" | 2-1/4" | 1" | 1/4" | 1/4" | 3" | 1-3/4" | Threadform Technology™ | #2 | 092097951518 |
| 3/16" x 2-1/4" | PF-3214 | 600 | 720 | 5/32" | 100 | 1-1/4" | 2-1/4" | 1" | 1/4" | 1/4" | 3" | 1-3/4" | Threadform Technology™ | T-25 | 092097951525 |
| 3/16" x 2-3/4" | PF-3234 | 600 | 720 | 5/32" | 100 | 1-3/4" | 2-1/4" | 1" | 1/4" | 1/4" | 3" | 1-3/4" | Threadform Technology™ | T-25 | 092097951532 |
| 3/16" x 3-1/4" | PF-3314 | 600 | 720 | 5/32" | 100 | 2-1/4" | 2-1/4" | 1" | 1/4" | 1/4" | 3" | 1-3/4" | Threadform Technology™ | #2 | 092097951549 |
| 1/4" x 1-1/4" | PF-4114 | 750 | 900 | 3/16" | 100 | 1/4" | 3" | 1" | 5/16" | 5/16" | 4" | 1-1/4" | Threadform Technology™ | #3 | 092097951570 |
| 1/4" x 1-3/4" | PF-4134 | 750 | 900 | 3/16" | 100 | 3/4" | 3" | 1" | 5/16" | 5/16" | 4" | 1-3/4" | Threadform Technology™ | #3 | 092097951587 |
| 1/4" x 2-1/4" | PF-4214 | 750 | 900 | 3/16" | 100 | 1-1/4" | 3" | 1" | 5/16" | 5/16" | 4" | 1-3/4" | Threadform Technology™ | #3 | 092097951594 |
| 1/4" x 2-3/4" | PF-4234 | 750 | 900 | 3/16" | 100 | 1-3/4" | 3" | 1" | 5/16" | 5/16" | 4" | 1-3/4" | Threadform Technology™ | #3 | 092097951600 |
| 1/4" x 3-1/4" | PF-4314 | 750 | 900 | 3/16" | 100 | 2-1/4" | 3" | 1" | 5/16" | 5/16" | 4" | 1-3/4" | Threadform Technology™ | #3 | 092097951617 |
| 1/4" x 3-3/4" | PF-4334 | 750 | 900 | 3/16" | 100 | 2-3/4" | 3" | 1" | 5/16" | 5/16" | 4" | 1-3/4" | Threadform Technology™ | #3 | 092097951624 |
| 1/4" x 4" | PF-4400 | 750 | 900 | 3/16" | 100 | 3" | 3" | 1" | 5/16" | 5/16" | 4" | 1-3/4" | Threadform Technology™ | #3 | 092097951631 |
| 1/4" x 5" | PF-4500 | 750 | 900 | 3/16" | 100 | 4" | 3" | 1" | 5/16" | 5/16" | 4" | 1-1/4" | Threadform Technology™ | #3 | 092097951648 |
| 1/4" x 6" | PF-4600 | 750 | 900 | 3/16" | 100 | 5" | 3" | 1" | 5/16" | 5/16" | 4" | 1-3/4" | Threadform Technology™ | #3 | 092097902985 |
* Pull-out and shear values are average ultimate loads in 2000 PSI concrete, offered as a guide only and not guaranteed. A 4:1 safety factor (25% of ultimate) is generally accepted as a safe working load.
Manufacturer Resources
Product Specs
- Product Brand:
- Tapcon
- Product Type:
- Flat Head Concrete Screw
- Country Of Origin:
- United States
- Box Quantity:
- 100
- Department:
- Fasteners
- Product Group:
- Concrete Anchors
- Product Subgroup:
- Concrete Screws
- Product Material:
- Blue Climaseal Coated
- Location Rating:
- Dry to Moist
