Thomas & Betts Insulated Fork Terminal #10 Stud 18-14 AWG Blue Vinyl

Thomas & Betts Insulated Fork Terminal #10 Stud 18-14 AWG Blue Vinyl

Professional Electrical Connection Terminal with Enhanced Protection

Thomas & Betts delivers reliable electrical connections with this insulated fork terminal designed for #10 stud applications. Featuring extra-long PVC insulation sleeve for protection and stress relief at the wire's flex point, this copper terminal with electro tin-plated finish provides secure connections for 18-14 AWG wire range. The brazed seam barrel is serrated for high pull-out value, while blue color-coding ensures easy identification in electrical installations.

Professional Features & Benefits

• 600V Voltage Rating: Provides reliable performance in standard electrical applications with professional-grade voltage capacity.
• #10 Stud Size: Ensures proper fit and secure mechanical connection for standard bolt and screw terminals.
• 18-14 AWG Wire Range: Accommodates common wire gauges for versatile installation applications and compatibility.
• Electro Tin-Plated Finish: Delivers corrosion resistance and enhanced conductivity for long-term electrical performance.
• 105�C Temperature Rating: Withstands elevated operating temperatures for reliable performance in demanding environments.
• CSA and UL Certifications: Meets rigorous safety standards for professional electrical installations and code compliance.
• Insulated Vinyl Construction: Provides electrical insulation and protection with UL 94 V-0 flammability rating for enhanced safety.

Technical Specifications

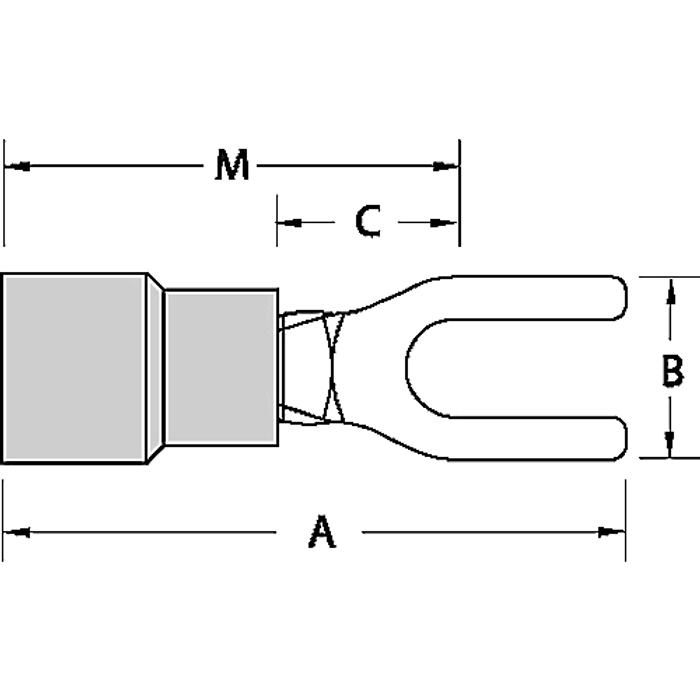

• A Inches: 0.97
• Alternate Package Qty: RB1157
• Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003
• B Inches: 0.31
• C Inches: 0.27
• Color: Blue
• Department: Electrical
• Flammability Rating: UL 94 V-0
• Inner Package: 100
• Insulation Type: Insulated Vinyl
• M Inches: 0.81
• Material: Copper
• Maximum Insulation Inches: 0.17
• Order Multiple: 100
• Outer Package: 5000
• Package Height: 8.8
• Package Length: 15.2
• Package Type: Standard
• Package Width: 9.3
• Product Finish: Electro Tin-Plated
• Recommended Tool: ERG4001
• Rohs Compliance: Yes
• Stock Thickness: 0.03
• Stud Size: #10
• T B Sold In Uom: Each
• T B Weight Per Uom: 2.5 lbs. per 1000
• Temperature Rating: 105�C
• Terminal Series: RB
• Voltage Rating: 600V
• Wire Range: 18-14

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Connections
• Control Circuit Wiring
• Motor Terminal Connections
• Equipment Grounding Applications
• Industrial Control Systems
• Commercial Electrical Installations
• Maintenance and Repair Operations

Why Choose Thomas & Betts Quality?

Thomas & Betts fork terminals deliver professional reliability with CSA and UL certifications ensuring code compliance and safety. The RoHS compliant construction and 105�C temperature rating provide dependable performance, while the electro tin-plated finish and insulated vinyl construction offer long-term durability for demanding electrical applications.
