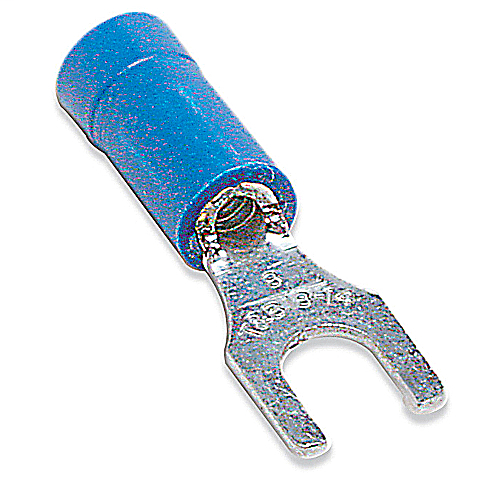

Thomas & Betts RB Series Fork Terminal #6 Stud 18-14 AWG Insulated Vinyl

Thomas & Betts RB Series Fork Terminal #6 Stud 18-14 AWG Insulated Vinyl

Professional Electrical Connection Solution with Enhanced Protection

Thomas & Betts RB Series Fork Terminal delivers reliable electrical connections for 18-14 AWG wire applications with #6 stud compatibility. Featuring extra-long PVC insulation sleeve for superior protection and stress relief at the wire's flex point, this copper terminal with electro tin-plated finish ensures dependable performance in 600V applications up to 105�C. The brazed seam barrel construction with serrated design provides exceptional pull-out resistance for secure connections.

Professional Features & Benefits

• 18-14 AWG Wire Range: Accommodates standard wire gauges for versatile electrical connection applications
• #6 Stud Size: Provides secure mechanical connection to appropriately sized terminal blocks and equipment
• 600V Voltage Rating: Supports high-voltage applications with reliable insulation performance
• 105�C Temperature Rating: Maintains integrity in elevated temperature environments for demanding applications
• Electro Tin-Plated Copper: Corrosion-resistant finish ensures long-term conductivity and connection reliability
• Extra-Long PVC Insulation: Enhanced protection and stress relief at critical flex points reduces wire fatigue
• UL & CSA Certified: Meets rigorous safety standards for professional electrical installations

Technical Specifications

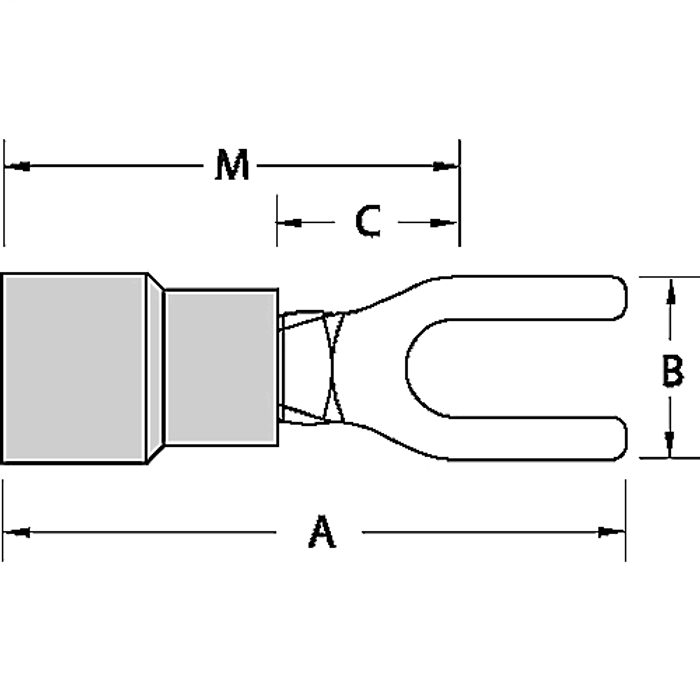

• A Inches: 0.97
• Alternate Package Qty: RB647
• Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003
• B Inches: 0.31
• C Inches: 0.27
• Color: Blue
• Department: Electrical
• Flammability Rating: UL 94 V-0
• Inner Package: 100
• Insulation Type: Insulated Vinyl
• M Inches: 0.81
• Material: Copper
• Maximum Insulation Inches: 0.17
• Order Multiple: 100
• Outer Package: 500
• Package Height: 8.9
• Package Length: 15
• Package Type: Standard
• Package Width: 9.5
• Product Finish: Electro Tin-Plated
• Product Group: Connectors
• Product Subgroup: Terminals
• Recommended Tool: ERG4001
• Rohs Compliance: Yes
• Stock Thickness: 0.03
• Stud Size: #6
• T B Sold In Uom: Each
• T B Weight Per Uom: 3.13 lbs. per 1000
• Temperature Rating: 105�C
• Terminal Series: RB
• Voltage Rating: 600V
• Wire Range: 18-14

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Control Panels and Equipment Connections
• Commercial Electrical Distribution Systems
• Motor Control Centers and Switchgear Applications
• Power Distribution and Branch Circuit Connections
• Instrumentation and Control Wiring
• Maintenance and Repair Operations

Why Choose Thomas & Betts Quality?

Thomas & Betts RB Series terminals deliver proven reliability with UL and CSA certifications ensuring compliance with professional electrical standards. The UL 94 V-0 flammability rating and RoHS compliance demonstrate commitment to safety and environmental responsibility, while the brazed seam barrel construction and color-coded insulation provide long-term performance in demanding electrical applications.
