Thomas & Betts RA Series Fork Terminal #10 Stud 22-16 AWG Insulated Vinyl

Thomas & Betts RA Series Fork Terminal #10 Stud 22-16 AWG Insulated Vinyl

Professional Electrical Connection Solution with Enhanced Protection

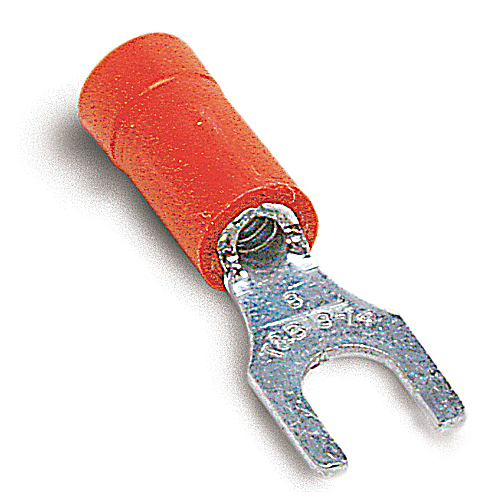

Thomas & Betts RA Series Fork Terminal delivers reliable electrical connections for 22-16 AWG wire applications with #10 stud compatibility. Featuring extra-long PVC insulation sleeve for superior protection and stress relief at the wire's flex point, this copper terminal with electro tin-plated finish ensures dependable performance in 600V applications rated to 105�C.

Professional Features & Benefits

• 22-16 AWG Wire Range: Accommodates standard wire gauges for versatile installation applications across residential and commercial projects.
• #10 Stud Size: Provides secure mechanical connection to standard electrical hardware and equipment terminals.
• 600V Voltage Rating: Supports high-voltage applications with reliable insulation performance for demanding electrical systems.
• 105�C Temperature Rating: Maintains performance integrity in elevated temperature environments and high-load conditions.
• Brazed Seam Barrel: Serrated construction delivers high pull-out value for secure wire retention and long-term connection reliability.
• Extra-Long PVC Insulation: Color-coded red vinyl insulation provides enhanced protection and stress relief at critical flex points.
• UL & CSA Certified: Meets rigorous safety standards for professional electrical installations and code compliance.

Technical Specifications

• A Inches: 0.97
• Alternate Package Qty: RA1157
• Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003
• B Inches: 0.31
• C Inches: 0.27
• Color: Red
• Department: Electrical
• Flammability Rating: UL 94 V-0
• Inner Package: 100
• Insulation Type: Insulated Vinyl
• M Inches: 0.81
• Material: Copper
• Maximum Insulation Inches: 0.15
• Order Multiple: 100
• Outer Package: 500
• Package Height: 8.8
• Package Length: 15
• Package Type: Standard
• Package Width: 9.5
• Product Finish: Electro Tin-Plated
• Product Group: Connectors
• Product Subgroup: Terminals
• Recommended Tool: ERG4001
• Rohs Compliance: Yes
• Stock Thickness: 0.03
• Stud Size: #10
• T B Sold In Uom: Each
• T B Weight Per Uom: 0.25 lbs. per 100
• Temperature Rating: 105�C
• Terminal Series: RA
• Voltage Rating: 600V
• Wire Range: 22-16

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Electrical Systems
• Commercial Building Wiring
• Industrial Control Panels
• Motor Control Centers
• Distribution Equipment
• Electrical Maintenance & Repair
• Professional Electrical Installations

Why Choose Thomas & Betts Quality?

Thomas & Betts fork terminals deliver proven reliability with UL and CSA certifications ensuring code compliance and safety. The UL 94 V-0 flammability rating and RoHS compliance demonstrate commitment to quality standards, while the electro tin-plated copper construction provides long-lasting performance in demanding electrical applications.
