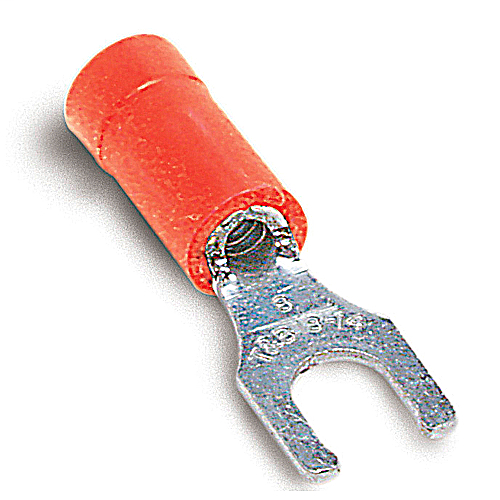

Thomas & Betts Locking Fork Terminal #6 Stud 22-16 AWG Insulated Vinyl

Thomas & Betts Locking Fork Terminal #6 Stud 22-16 AWG Insulated Vinyl

Professional Electrical Connection Solution with Secure Locking Design

Thomas & Betts delivers reliable electrical connectivity with this locking fork terminal featuring a specially designed tongue that allows installation like a fork terminal while providing the secure retention of a ring terminal. Built with copper construction and electro tin-plated finish, this #6 stud terminal accommodates 22-16 AWG wire range with insulated vinyl insulation rated for 600V and 105�C operation.

Professional Features & Benefits

• Locking Fork Design: Specially designed tongue provides easy installation like a fork terminal with secure retention like a ring terminal, reducing connection failures
• 600V Voltage Rating: Suitable for demanding electrical applications with high voltage requirements and professional safety standards
• 22-16 AWG Wire Range: Accommodates common wire gauges for versatile installation flexibility across various electrical projects
• Copper Construction with Tin Plating: Electro tin-plated copper provides excellent conductivity and corrosion resistance for long-term reliability
• 105�C Temperature Rating: Withstands elevated operating temperatures for demanding electrical environments and applications
• UL and CSA Certified: Meets rigorous safety and performance standards for professional electrical installations
• Insulated Vinyl Design: Red insulated vinyl provides electrical isolation and color coding for safe, organized installations

Technical Specifications

• A Inches: 0.97
• Alternate Package Qty: RA2217
• Application Tools: ERG4001, ERG4003, WT145C, WT2000, WT112M, WT145C
• B Inches: 0.25
• C Inches: 0.25
• Color: Red
• Department: Electrical
• Flammability Rating: UL 94 V-0
• Inner Package: 100
• Insulation Type: Insulated Vinyl
• M Inches: 0.81
• Material: Copper
• Maximum Insulation Inches: 0.15
• Order Multiple: 100
• Outer Package: 500
• Package Height: 8.9
• Package Length: 10.5
• Package Type: Standard
• Package Width: 7.2
• Product Finish: Electro Tin-Plated
• Product Group: Connectors
• Product Subgroup: Terminals
• Recommended Tool: ERG4001
• Rohs Compliance: Yes
• Stock Thickness: 0.03
• Stud Size: #6
• T B Sold In Uom: Each
• T B Weight Per Uom: 0.25 lbs. per 100
• Temperature Rating: 105�C
• Terminal Series: RA
• Voltage Rating: 600V
• Wire Range: 22-16

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Control Panels and Electrical Enclosures
• Commercial Building Electrical Systems
• Motor Control Centers and Distribution Equipment
• Electrical Maintenance and Repair Operations
• Professional Electrical Installations
• Equipment Grounding and Bonding Applications

Why Choose Thomas & Betts Quality?

Thomas & Betts provides professional-grade electrical connectivity solutions backed by UL and CSA certifications. The UL 94 V-0 flammability rating and RoHS compliance demonstrate commitment to safety and environmental standards, while the electro tin-plated copper construction ensures reliable performance in demanding electrical applications.
