Thomas & Betts Insulated Fork Terminal 22-16 AWG #6 Stud Red Vinyl

Thomas & Betts Insulated Fork Terminal 22-16 AWG #6 Stud Red Vinyl

Professional electrical connections with enhanced insulation protection

Thomas & Betts delivers reliable electrical connectivity with this insulated fork terminal designed for 22-16 AWG wire applications. Featuring a brazed seam copper barrel with electro tin-plated finish and extra-long red PVC insulation sleeve, this terminal provides secure connections to #6 stud applications with enhanced protection and stress relief at the wire's flex point.

Professional Features & Benefits

• 22-16 AWG Wire Range: Accommodates standard wire gauges for versatile electrical connection applications
• #6 Stud Size: Provides secure mechanical and electrical connection to standard stud terminals
• 600V Voltage Rating: Supports high-voltage applications with reliable insulation performance
• Brazed Seam Barrel: Serrated design ensures high pull-out value and secure wire retention
• Extra-Long PVC Insulation: Red color-coded sleeve provides enhanced protection and stress relief at flex points
• Electro Tin-Plated Finish: Copper construction with tin plating delivers superior conductivity and corrosion resistance
• 105�C Temperature Rating: Maintains performance in elevated temperature environments

Technical Specifications

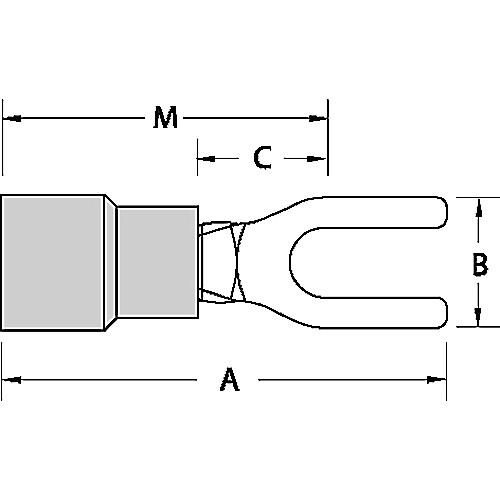

• A Inches: 0.94
• Alternate Package Qty: RA1167
• Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003
• B Inches: 0.25
• C Inches: 0.27
• Color: Red
• Department: Electrical
• Flammability Rating: UL 94 V-0
• Inner Package: 100
• Insulation Type: Insulated Vinyl
• M Inches: 0.81
• Material: Copper
• Maximum Insulation Inches: 0.15
• Order Multiple: 100
• Outer Package: 500
• Package Height: 7.25
• Package Length: 10.4
• Package Type: Standard
• Package Width: 9.25
• Product Finish: Electro Tin-Plated
• Recommended Tool: ERG4001
• Rohs Compliance: Yes
• Stock Thickness: 0.03
• Stud Size: #6
• T B Sold In Uom: Each
• T B Weight Per Uom: 2.5 lbs. per 1000
• Temperature Rating: 105�C
• Terminal Series: RA
• Voltage Rating: 600V
• Wire Range: 22-16
