Thomas & Betts RC Series #10 Stud Locking Fork Terminal with Insulated Vinyl

Thomas & Betts RC Series #10 Stud Locking Fork Terminal with Insulated Vinyl

Professional Electrical Connection Solution with Secure Locking Design

Thomas & Betts delivers reliable electrical connectivity with this RC Series locking fork terminal featuring a specially designed tongue that installs like a fork and stays secure like a ring. Built with copper construction and electro tin-plated finish, this #10 stud terminal provides 600V voltage rating and 105�C temperature rating for professional electrical applications. The insulated vinyl construction with yellow color coding ensures safe handling and easy identification in electrical installations.

Professional Features & Benefits

• #10 Stud Size: Provides secure connection compatibility for standard electrical applications requiring reliable terminal connections.
• 600V Voltage Rating: Delivers professional-grade electrical performance suitable for commercial and industrial electrical systems.
• 105�C Temperature Rating: Ensures reliable operation in demanding thermal environments with consistent performance characteristics.
• Copper Construction with Electro Tin-Plated Finish: Provides excellent conductivity and corrosion resistance for long-term electrical reliability.
• Insulated Vinyl Design: Offers safe handling and electrical insulation protection with UL 94 V-0 flammability rating.
• CSA and UL Certifications: Meets rigorous safety and performance standards for professional electrical installations.
• Locking Fork Design: Features specially engineered tongue that combines easy installation with secure ring-like retention.

Technical Specifications

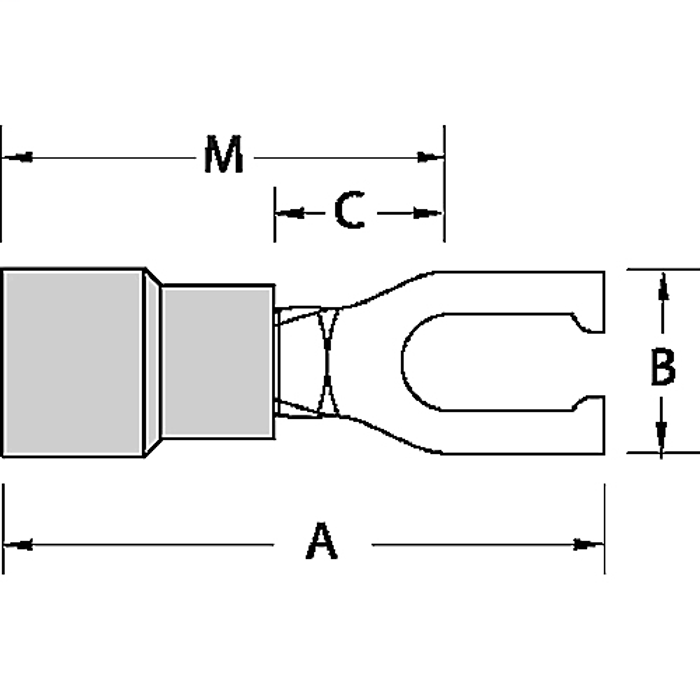

• A Inches: 1.09
• Alternate Package Qty: RC2227
• Application Tools: ERG4001, ERG4003, WT145C, WT2000, WT112M, WT145C
• B Inches: 0.37
• C Inches: 0.27
• Color: Yellow
• Department: Electrical
• Flammability Rating: UL 94 V-0
• Inner Package: 50
• Insulation Type: Insulated Vinyl
• M Inches: 0.9
• Material: Copper
• Maximum Insulation Inches: 0.22
• Order Multiple: 50
• Outer Package: 250
• Package Height: 7
• Package Length: 10.5
• Package Type: Standard
• Package Width: 8.75
• Product Finish: Electro Tin-Plated
• Product Group: Connectors
• Product Subgroup: Terminals
• Recommended Tool: ERG4001
• Rohs Compliance: Yes
• Stock Thickness: 0.04
• Stud Size: #10
• T B Sold In Uom: Each
• T B Weight Per Uom: 5.63 lbs. per 1000
• Temperature Rating: 105�C
• Terminal Series: RC
• Voltage Rating: 600V
• Wire Range: 10-Dec

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Electrical Systems
• Industrial Control Panels
• Electrical Distribution Equipment
• Motor Control Centers
• Professional Electrical Installations
• Maintenance and Repair Operations

Why Choose Thomas & Betts Quality?

Thomas & Betts delivers proven electrical connectivity solutions with CSA and UL certifications ensuring compliance with rigorous safety standards. The RoHS compliant construction and UL 94 V-0 flammability rating demonstrate commitment to environmental responsibility and fire safety, while the electro tin-plated copper construction provides long-term reliability for professional electrical applications.
