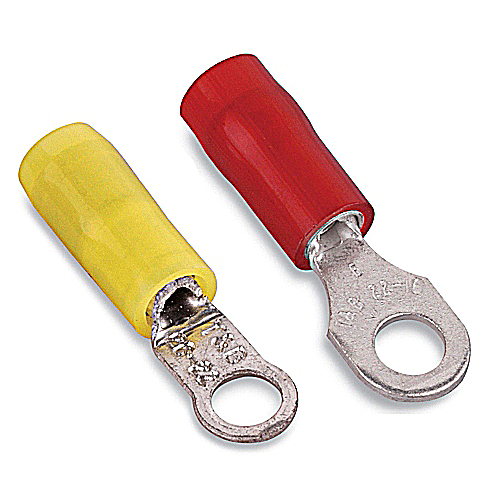

Thomas & Betts Insulated Nylon Ring Terminal 22-16 AWG #8 Stud Red

Thomas & Betts Insulated Nylon Ring Terminal 22-16 AWG #8 Stud Red

Professional Electrical Connection Solution with High Dielectric Strength

Thomas & Betts delivers reliable electrical connections with this insulated nylon ring terminal designed for 22-16 AWG wire range and #8 stud applications. Featuring self-insulated construction with high dielectric-strength nylon sleeves and an inner bronze insulation grip sleeve that lengthens the flexing radius of the conductor and eliminates conductor creep. The electro tin-plated copper construction with red color coding ensures professional performance in 600V applications with 105�C temperature rating.

Professional Features & Benefits

• 22-16 AWG Wire Range: Accommodates standard wire gauges for versatile electrical connection applications
• 600V Voltage Rating: Provides reliable performance in commercial and industrial electrical systems
• 105�C Temperature Rating: Ensures stable operation in demanding thermal environments
• Electro Tin-Plated Copper: Delivers superior conductivity and corrosion resistance for long-term reliability
• High Dielectric-Strength Nylon Insulation: Provides electrical safety and prevents accidental contact
• Bronze Insulation Grip Sleeve: Extends conductor flexing radius and eliminates conductor creep for enhanced durability
• UL and CSA Certified: Meets rigorous safety standards for professional electrical installations

Technical Specifications

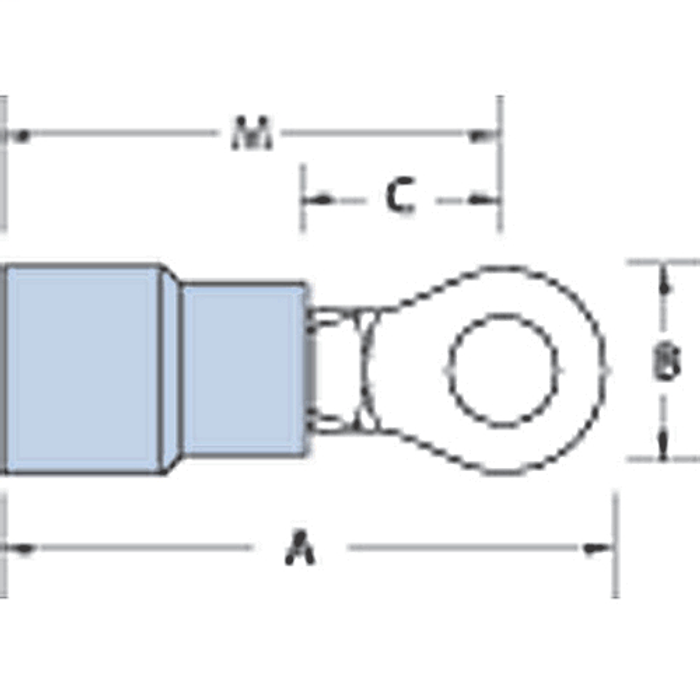

• A Inches: 0.89
• Alternate Package Qty: RA863
• Application Tools: WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A
• B Inches: 0.31
• C Inches: 0.25
• Color: Red
• Department: Electrical
• Flammability Rating: UL 94 V-2
• Inner Package: 100
• Insulation Type: Insulated Nylon
• M Inches: 0.74
• Material: Copper
• Maximum Insulation Inches: 0.136
• Order Multiple: 100
• Outer Package: 500
• Package Height: 8.9
• Package Length: 15.1
• Package Type: Standard
• Package Width: 9.4
• Product Finish: Electro Tin-Plated
• Product Group: Hardware
• Product Subgroup: Rings
• Recommended Tool: WT145A
• Rohs Compliance: Yes
• Stock Thickness: 0.03
• Stud Size: #8
• T B Sold In Uom: Each
• T B Weight Per Uom: 0.25 lbs. per 100
• Temperature Rating: 105�C
• Terminal Series: RA
• Voltage Rating: 600V
• Wire Range: 22-16
