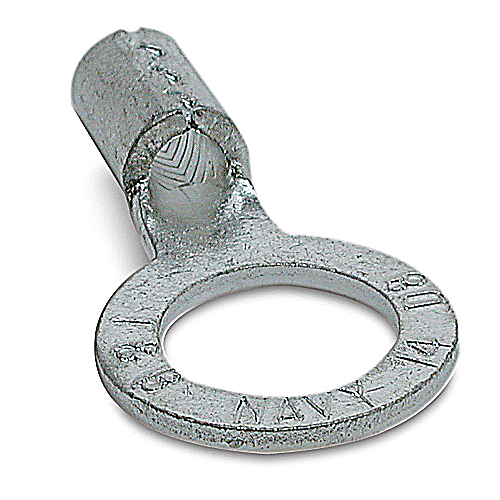

Thomas & Betts D Series Non-Insulated Ring Terminal #10 Stud 8 AWG Electrolytic Copper

Thomas & Betts D Series Non-Insulated Ring Terminal #10 Stud 8 AWG Electrolytic Copper

Professional Grade Electrical Connection Terminal

Thomas & Betts D Series ring terminals deliver reliable electrical connections with electrolytic copper construction for high conductivity performance. These non-insulated terminals feature a serrated barrel design that increases grip on wire and can be installed with single or double indentor crimping tools. With #10 stud size compatibility and 8 AWG wire range, these terminals provide professional-grade connectivity for electrical applications requiring 600V voltage rating and 150�C temperature performance.

Professional Features & Benefits

• Electrolytic Copper Construction: Provides superior electrical conductivity and reliable current flow for professional electrical connections.
• 600V Voltage Rating: Supports high-voltage applications with dependable insulation performance and electrical safety.
• 150�C Temperature Rating: Withstands elevated operating temperatures for demanding electrical environments and applications.
• Serrated Barrel Design: Increases mechanical grip on wire strands for secure connections that resist pullout and maintain contact integrity.
• #10 Stud Compatibility: Precisely sized for standard #10 mounting hardware with proper fit and electrical contact.
• Electro Tin-Plated Finish: Provides corrosion resistance and enhanced conductivity for long-term reliability in electrical systems.
• CSA and UL Certifications: Meets rigorous safety and performance standards for professional electrical installations.

Technical Specifications

• A Inches: 1.09
• Alternate Package Qty: D36
• Application Tools: WT115A, TBM6, TBM6S, WT3185
• B Inches: 0.42
• C Inches: 0.34
• Color: Metallic
• Department: Electrical
• Flammability Rating: UL 94 V-0
• Inner Package: 25
• Insulation Type: Non-Insulated - Brazed Seam
• M Inches: 0.89
• Material: Copper
• Order Multiple: 25
• Outer Package: 125
• Package Height: 8.8
• Package Length: 15
• Package Type: Standard
• Package Width: 9.4
• Product Finish: Electro Tin-Plated
• Product Group: Connectors
• Product Subgroup: Terminals
• Recommended Tool: TBM6S
• Rohs Compliance: Yes
• Stock Thickness: 0.06
• Stud Size: #10
• T B Sold In Uom: Each
• T B Weight Per Uom: 1.31 lbs. per 100
• Temperature Rating: 150�C
• Terminal Series: D
• Voltage Rating: 600V
• Wire Range: 8

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Control Panels and Electrical Enclosures
• Commercial Building Electrical Systems
• Motor Control Centers and Distribution Equipment
• Electrical Maintenance and Repair Operations
• Professional Electrical Installations
• Equipment Grounding and Bonding Connections

Why Choose Thomas & Betts Quality?

Thomas & Betts ring terminals combine proven electrolytic copper construction with rigorous CSA and UL certifications for dependable electrical connectivity. The electro tin-plated finish and UL 94 V-0 flammability rating ensure long-term performance and safety compliance in professional electrical applications.
