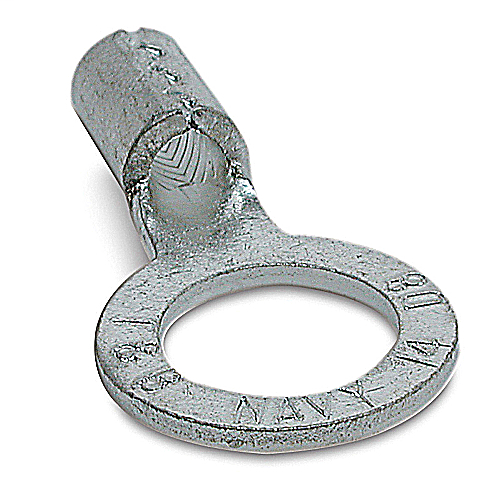

Thomas & Betts E6 Series Non-Insulated Ring Terminal - 6 AWG Wire, 1/4" Stud, Electrolytic Copper

Thomas & Betts E6 Series Non-Insulated Ring Terminal

Professional Grade Electrolytic Copper Terminal for Reliable Electrical Connections

The Thomas & Betts E6 Series Ring Terminal delivers professional-grade electrical connectivity with electrolytic copper construction for maximum conductivity. Designed for 6 AWG wire applications with 1/4" stud compatibility, this non-insulated terminal features a brazed seam construction and electro tin-plated finish for enhanced corrosion resistance. The serrated barrel design increases grip on wire for secure connections, while UL and CSA certifications ensure compliance with industry standards.

Professional Features & Benefits

• Electrolytic Copper Construction: Provides superior electrical conductivity and reliable current flow for critical electrical connections.
• 6 AWG Wire Compatibility: Precisely engineered for 6 AWG wire applications ensuring proper fit and optimal electrical performance.
• 1/4" Stud Size: Standard stud compatibility allows for versatile installation across various electrical applications and equipment.
• Electro Tin-Plated Finish: Enhanced corrosion resistance extends terminal life and maintains connection integrity in demanding environments.
• 600V Voltage Rating: Suitable for high-voltage applications with reliable performance up to 600 volts.
• 150�C Temperature Rating: Withstands elevated operating temperatures for demanding electrical environments and applications.
• UL and CSA Certified: Meets rigorous safety and performance standards for professional electrical installations.

Technical Specifications

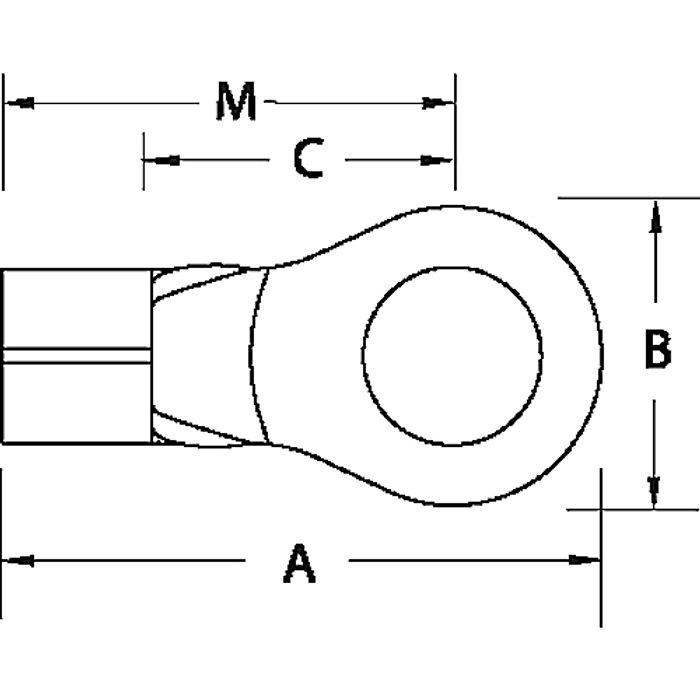

• A Inches: 1.13
• Alternate Package Qty: E71
• Application Tools: WT115A, TBM6, TBM6S, WT3185
• B Inches: 0.48
• C Inches: 0.36
• Color: Metallic
• Department: Electrical
• Flammability Rating: UL 94 V-0
• Inner Package: 20
• Insulation Type: Non-Insulated - Brazed Seam
• M Inches: 0.9
• Material: Copper
• Order Multiple: 20
• Outer Package: 100
• Package Height: 8.8
• Package Length: 15
• Package Type: Standard
• Package Width: 9.5
• Product Finish: Electro Tin-Plated
• Product Group: Connectors
• Product Subgroup: Terminals
• Recommended Tool: TBM6S
• Rohs Compliance: Yes
• Stock Thickness: 0.06
• Stud Size: 4-Jan
• T B Sold In Uom: Each
• T B Weight Per Uom: 1.56 lbs. per 100
• Temperature Rating: 150�C
• Terminal Series: E
• Voltage Rating: 600V
• Wire Range: 6

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Control Panels and Electrical Enclosures
• Commercial Electrical Distribution Systems
• Motor Control Centers and Switchgear
• Power Distribution Equipment
• Electrical Maintenance and Repair
• Professional Electrical Installations
• Equipment Grounding and Bonding

Why Choose Thomas & Betts Quality?

Thomas & Betts delivers proven reliability with UL and CSA certifications ensuring compliance with rigorous safety standards. The electro tin-plated finish and 150�C temperature rating provide long-term durability in demanding electrical environments, while RoHS compliance demonstrates commitment to environmental responsibility and professional quality standards.
