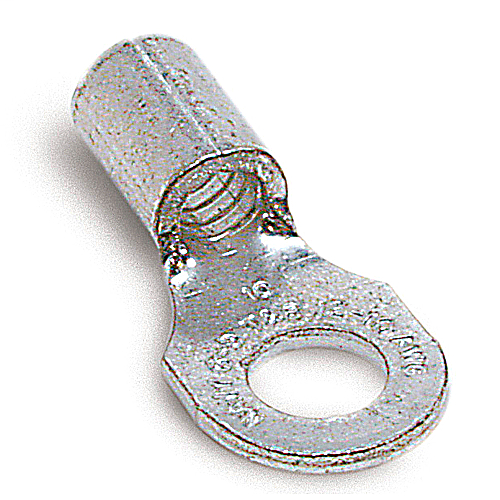

Thomas & Betts B14-10 Non-Insulated Ring Terminal 16-14 AWG #10 Stud Electrolytic Copper

Thomas & Betts B14-10 Non-Insulated Ring Terminal 16-14 AWG #10 Stud Electrolytic Copper

Professional electrical connections with superior conductivity and grip

Thomas & Betts B14-10 ring terminals deliver reliable electrical connections for 16-14 AWG wire applications. Constructed from electrolytic copper for high conductivity and featuring a serrated barrel design that increases grip on wire, these non-insulated terminals provide professional-grade performance. The electro tin-plated finish ensures corrosion resistance while the #10 stud size accommodates standard connection points.

Professional Features & Benefits

• Electrolytic Copper Construction: Provides superior electrical conductivity for reliable current flow and minimal voltage drop
• Serrated Barrel Design: Increases mechanical grip on wire strands, ensuring secure connections that resist pullout
• 16-14 AWG Wire Range: Accommodates common wire gauges for versatile electrical connection applications
• #10 Stud Size: Standard stud diameter fits common terminal blocks, switches, and electrical equipment
• 600V Voltage Rating: Suitable for both low and medium voltage electrical systems and applications
• UL and CSA Certified: Meets rigorous safety standards for professional electrical installations
• 150�C Temperature Rating: Withstands elevated operating temperatures in demanding electrical environments

Technical Specifications

• A Inches: 0.75
• Alternate Package Qty: B87
• Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002
• B Inches: 0.31
• C Inches: 0.27
• Color: Metallic
• Department: Electrical
• Flammability Rating: UL 94 V-0
• Inner Package: 100
• Insulation Type: Non-Insulated
• M Inches: 0.59
• Material: Copper
• Order Multiple: 100
• Outer Package: 500
• Package Height: 7
• Package Length: 10.5
• Package Type: Standard
• Package Width: 9
• Product Finish: Electro Tin-Plated
• Product Group: Hardware
• Product Subgroup: Rings
• Recommended Tool: ERG4002, ERG4005
• Rohs Compliance: Yes
• Stock Thickness: 0.03
• Stud Size: #10
• T B Sold In Uom: Each
• T B Weight Per Uom: 2.5 lbs. per 1000
• Temperature Rating: 150�C
• Terminal Series: B
• Voltage Rating: 600V
• Wire Range: 18-14

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical panel connections and distribution systems
• Motor control centers and industrial equipment
• Commercial lighting and power circuits
• Residential electrical installations and repairs
• Control panel wiring and instrumentation
• HVAC system electrical connections

Why Choose Thomas & Betts Quality?

Thomas & Betts ring terminals combine proven electrolytic copper construction with professional-grade certifications including UL and CSA approval. The 600V voltage rating and 150�C temperature capability ensure reliable performance across diverse electrical applications, while RoHS compliance demonstrates commitment to environmental responsibility.
