Thomas & Betts G Series Non-Insulated Ring Terminal - 2 AWG, 600V, Electrolytic Copper Construction

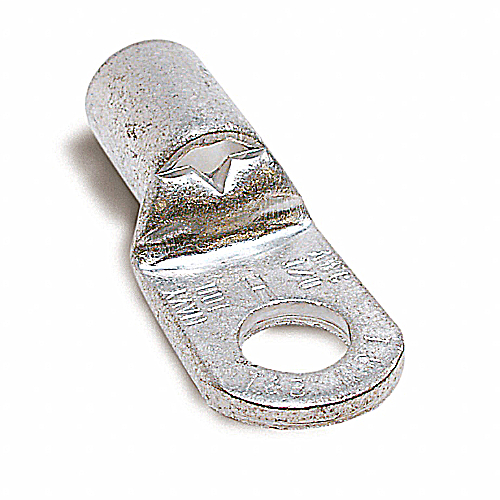

Thomas & Betts G Series Non-Insulated Ring Terminal

Professional Grade Electrical Connection Solution

The Thomas & Betts G Series Non-Insulated Ring Terminal delivers reliable electrical connections with electrolytic copper construction for high conductivity performance. This 2 AWG terminal features 600V voltage rating and electro tin-plated finish for enhanced durability and corrosion resistance. Designed for professional electrical installations, this terminal accommodates various crimping tools and provides secure connections in demanding applications.

Professional Features & Benefits

• Electrolytic Copper Construction: Provides superior electrical conductivity and reliable current flow for optimal performance in electrical connections.
• 600V Voltage Rating: Ensures safe operation in high-voltage applications with professional-grade electrical safety standards.
• Electro Tin-Plated Finish: Delivers enhanced corrosion resistance and improved connection reliability over extended service life.
• 2 AWG Wire Range: Accommodates specific wire gauge requirements for precise electrical connections and proper current handling.
• 150�C Temperature Rating: Withstands elevated operating temperatures for reliable performance in demanding thermal environments.
• CSA and UL Certifications: Meets rigorous safety and performance standards for professional electrical installations and code compliance.
• Compatible Crimping Tools: Works with multiple tool options including WT115A, TBM6, TBM6S, and WT3185 for versatile installation methods.

Technical Specifications

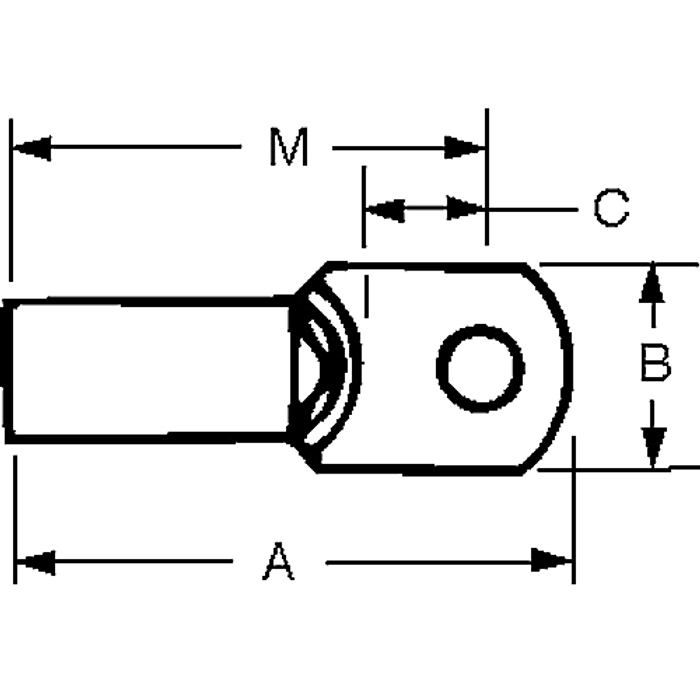

• A Inches: 1.59
• Application Tools: WT115A, TBM6, TBM6S, WT3185
• B Inches: 0.69
• C Inches: 0.4
• Color: Metallic
• Department: Electrical
• Flammability Rating: UL 94 V-0
• Inner Package: 10
• Insulation Type: Non-Insulated - Tubular
• M Inches: 1.26
• Material: Copper
• Order Multiple: 10
• Outer Package: 100
• Package Height: 7.2
• Package Length: 10.3
• Package Type: Standard
• Package Width: 9
• Product Finish: Electro Tin-Plated
• Product Group: Connectors
• Product Subgroup: Terminals
• Recommended Tool: ERG4008, TBM6S
• Rohs Compliance: Yes
• Stock Thickness: 0.05
• Stud Size: 4-Jan
• T B Sold In Uom: Each
• T B Weight Per Uom: 3.81 lbs. per 100
• Temperature Rating: 150�C
• Terminal Series: G
• Voltage Rating: 600V
• Wire Range: 2

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Control Panels and Electrical Enclosures
• Commercial Building Electrical Systems
• Motor Control Centers and Distribution Equipment
• Power Distribution and Branch Circuit Connections
• Electrical Maintenance and Retrofit Projects
• Professional Electrical Contracting Applications

Why Choose Thomas & Betts Quality?

Thomas & Betts delivers proven reliability with CSA and UL certifications ensuring compliance with professional electrical standards. The electrolytic copper construction and electro tin-plated finish provide long-term durability and consistent performance. With 150�C temperature rating and UL 94 V-0 flammability rating, these terminals meet demanding professional requirements for safe and reliable electrical connections.
