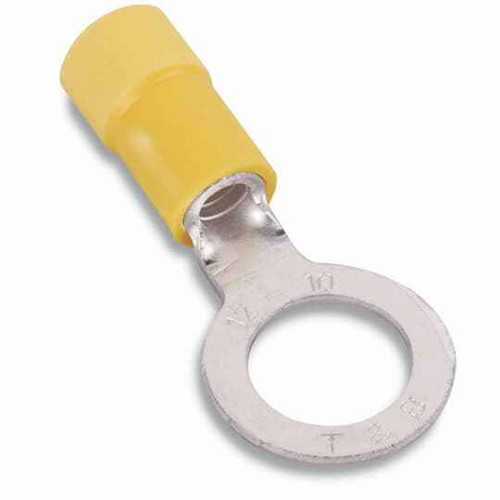

TERMINAL RING TONGUE
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 12-10 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon C10-6-SK – Frequently Asked Questions
1) What wire size does the Sta-Kon C10-6-SK ring terminal take?
The C10-6-SK ring tongue terminal is sized for 12-10 AWG conductors. Stranded copper in that range crimps into the barrel correctly; if you are terminating 14-16 AWG you need a smaller barrel size, and anything heavier than 10 AWG will not seat.
2) Is the Sta-Kon C10-6-SK insulated or bare?
It's a non-insulated (bare) copper ring terminal, metallic finish, no nylon or vinyl sleeve. You'll want heat shrink or tape over the barrel if the application needs insulation at the termination.
3) Is the Sta-Kon C10-6-SK UL listed?
It carries UL file E9809. For specs and inspections that call for a UL recognized wire terminal on 600 V control or power wiring, that's the reference to cite.
4) Ring tongue or fork terminal for a panel terminal block?
A ring tongue like the C10-6-SK is the captive choice: the screw passes through a closed ring so the conductor cannot pull off a loosened screw. That's why it's preferred on motor leads, grounds and vibration-prone equipment. A fork or spade terminal slides off under the screw head, which is faster for service work on crowded strips but not captive. If the spec or inspector calls for captive terminations, go with the ring.
5) Where is the Sta-Kon C10-6-SK made?
Made in the United States. That matters on federal, state and institutional jobs carrying domestic sourcing requirements, where country of origin has to be documented on submittals.
6) Do I need a special crimp tool for this Sta-Kon terminal?
It's a crimp-style bare copper barrel, not a set screw or solder lug, so it needs a ratcheting crimper with a die matched to the 12-10 AWG range. Pliers will give you a mechanically loose joint that heats up under load.
