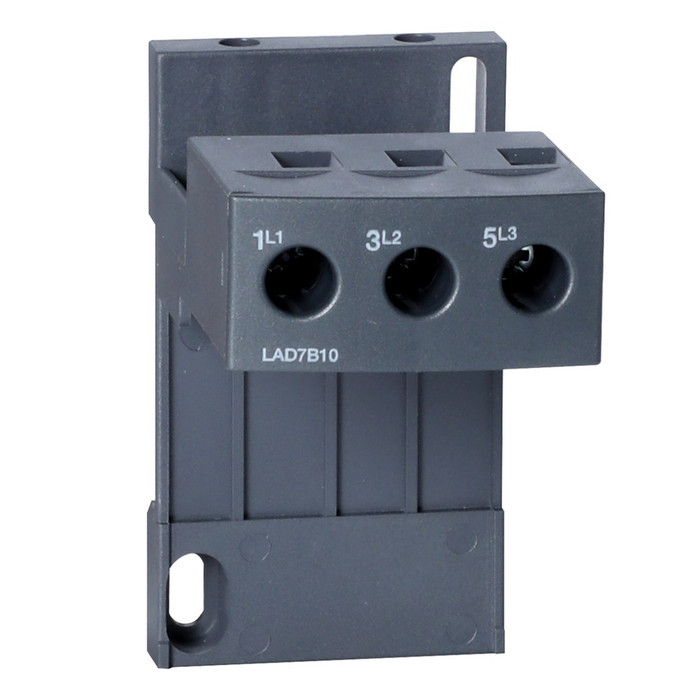

Square D TeSys Separate Mount Kit for LRD01-LRD35 Overload Relays, Screw Terminal

Square D TeSys Separate Mount Kit for LRD01-LRD35 Overload Relays, Screw Terminal

(No reviews yet) Write a Review

Model: LAD7B10

In Stock (leaves warehouse same day if ordered before 3pm ET)

$15.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Square D TeSys Separate Mount Kit for LRD01-LRD35 Overload Relays, Screw Terminal

The Square D TeSys separate mount kit lets LRD and LR3D thermal overload relays be mounted apart from their contactor, simplifying panel layout where space is tight. This adaptor provides the connection terminal block needed to separate-mount overload relays compatible with LRD01 through LRD35 and LR3D01 through LR3D35, and it terminates with screw terminals for reliable field wiring. Built as part of the TeSys range from Schneider Electric, it is supplied as a set of 1 and is fully RoHS compliant.

Key Features

  • Separate Mounting: Allows LRD and LR3D overload relays to be mounted away from the contactor for easier panel layout in space-constrained enclosures.
  • Connections Terminals: Screw terminals provide a secure, serviceable wiring connection between the relay and adaptor.
  • Broad Compatibility: Works with LRD01...35 and LR3D01...D35 overload relays for flexible application across the TeSys D line.
  • Terminal Block Design: Functions as a terminal block for mounting on 35mm DIN rail, per manufacturer documentation.
  • Accessory Category: Classified as a connection accessory, purpose-built for TeSys D overload relay installations.
  • Quantity Per Set: Supplied as a set of 1 for straightforward per-relay ordering.
  • Sustainable Packaging: Packaging is made with recycled cardboard and contains no single-use plastic.

Certifications & Compliance

  • RoHS EUR Compliant (In Scope)
  • Mercury Free
  • Toxic Heavy Metal Free
  • Free of Substances of Very High Concern (SVHC) Above Threshold

Technical Specifications

  • Toxic Heavy Metal Free: Yes
  • Warranty: 18 months
  • Take Back: No
  • Tier: 1
  • Returnability: Yes
  • Warranty Period: 18 months
  • Sustainable Packaging: Yes
  • Mercury Free: Yes
  • Packaging Without Single Use Plastic: Yes
  • Reach Free Shvc: Yes
  • ROHS Eur In Scope: Yes
  • Recycled Metal Content At Cr Level: 0 %
  • Legacy WEEE Scope: In
  • Packaging Made With Recycled Cardboard: Yes
  • China ROHS Label: 1
  • Serviceability: No
  • With Recycled Cardboard: Yes
  • WEEE Product Category: 5
  • Without Single Use Plastic: Yes

Typical Applications

  • Motor Control Panel Layout and Wiring
  • TeSys D Contactor and Overload Relay Systems
  • Commercial Electrical Installations
  • Industrial Control Panel Building
  • DIN Rail Mounted Control Equipment

Why Square D?

Square D by Schneider Electric engineers the TeSys D line for dependable motor control performance, and this separate mount kit extends that reliability to flexible panel designs. With RoHS-compliant, mercury-free construction and secure screw-terminal connections, it delivers a code-compliant accessory panel builders and electricians can trust for LRD and LR3D overload relay installations.

Manufacturer Resources

Product Specs

Product Type:
Overload Relay Accessory
Connection Type:
Screw Terminal
Series:
TeSys
Warranty:
18 months
Listing:
RoHS Compliant
Department:
Electrical
Product Group:
Motor Control & Automation
Product Subgroup:
Overload Relays

Square D LAD7B10 – Frequently Asked Questions

1) What does the Square D LAD7B10 kit actually do in a motor starter panel?
The LAD7B10 is a separate mount kit for TeSys thermal overload relays. Normally an LRD relay clips directly onto the bottom of its contactor. This adaptor gives you a connection terminal block so the relay can sit somewhere else in the enclosure and still be wired back to the contactor, which helps when the contactor position is fixed and you are short on vertical space.
2) Which overload relays does the LAD7B10 separate mount kit fit?
It works with LRD01 through LRD35 and LR3D01 through LR3D35 thermal overload relays in the TeSys D line. Relays outside that range are not covered by this adaptor.
3) Does the LAD7B10 kit include the overload relay or the contactor?
No. It is a connection accessory only, the terminal block adaptor that lets the relay be mounted apart from the contactor. The LRD or LR3D relay and the contactor are ordered separately.
4) Does the Square D separate mount kit terminate with screw terminals or spring clamp?
Screw terminals. If your panel standard calls for spring-clamp or ring-lug terminations, this is not the version to order.
5) Can the LAD7B10 mount on 35mm DIN rail?
Yes. The adaptor functions as a terminal block for mounting on 35mm DIN rail, which is the standard rail already running in most control panels.
6) Is this Square D adaptor RoHS compliant for a spec that requires it?
Yes, it is RoHS EUR compliant and in scope, and it is listed as mercury free, free of toxic heavy metals, and free of SVHC substances above threshold. That covers most institutional and government procurement language on restricted substances.
7) How many kits do I get, and how many do I need per relay?
The LAD7B10 is supplied as a set of 1, and one kit serves one overload relay. If you are separate-mounting five relays in a panel, order five.
