Manufacturer Resources
Spec Sheet
Product Specs
- Hub Size:
- 1-1/4 Inch
- Outer Dimensions Inches:
- 15.12x9.5x6.12
- Outer Quantity:
- 10
- Product Group:
- Conduit & Raceway
- Standards:
- CSA
- Unspsc:
- 39131708 Electrical conduit fitting body
- Weight Uom:
- 144 lbs. per 100
- Department:
- Electrical
- Product Subgroup:
- Conduit Bodies & Covers
- Product Type:
- Type T Conduit Body
- Product Details:
- Rigid Conduit
- Product Material:
- Cast Aluminum
Thomas & Betts CITA-1 1/4 – Frequently Asked Questions
1) Is the CITA-1 1/4 conduit body metal or PVC?
Cast aluminum. That makes it suitable for aluminum or steel rigid conduit runs where you want a light, corrosion-resistant body, but it is not the fitting for PVC conduit systems and it is not a non-metallic body. Aluminum bodies are also generally avoided in direct contact with concrete or in high-chloride environments where corrosion is a concern.
2) Does the Thomas & Betts CITA-1 1/4 come with a cover and gasket?
The CITA-1 1/4 is the conduit body itself. Covers and gaskets for Type T bodies are ordered separately by size, so plan on a 1-1/4 inch body cover (and a gasket if the location calls for one) to close the opening after you make up your splices.
3) Is a Type T conduit body the right fitting for a conduit run that needs a branch or a pull point?
A Type T body has three openings, so it is what you use where a run needs to split into a branch or where you need a pull and splice point at a tee. If you only need to turn a corner, an L body (LB, LL, LR) is the right choice instead; if you need a straight-through pull point, use a C body. The CITA-1 1/4 is the Type T in 1-1/4 inch.
4) What is the exact part number to order for a 1-1/4 inch Thomas & Betts Type T aluminum conduit body?
Order it as CITA-1 1/4 from Thomas & Betts. The CITA prefix is the cast aluminum Type T body and the 1 1/4 suffix is the hub size, so the number already carries both the body style and the trade size.

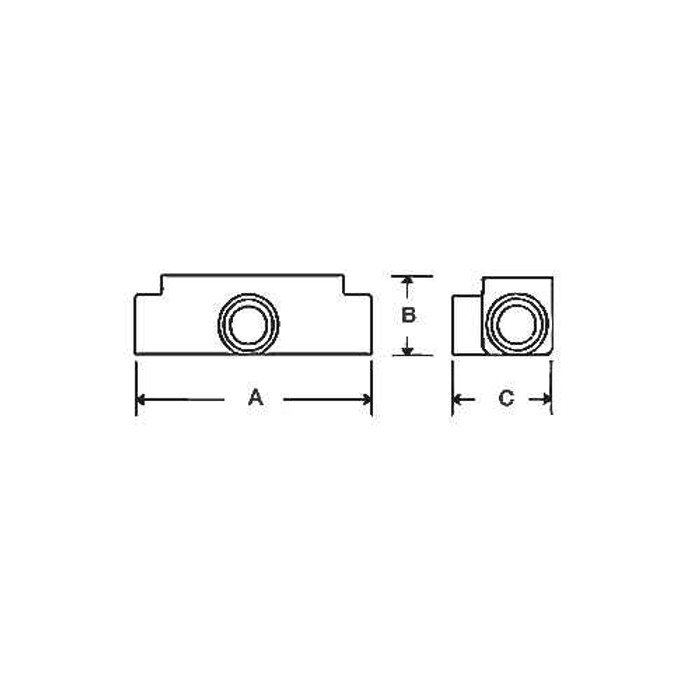

5) Where do I find the published dimensions and wire fill data for the Thomas & Betts CITA-1 1/4?
Thomas & Betts publishes a spec sheet for the CITA-1 1/4, and it is linked on the product record. That is the document to pull for body dimensions and conductor fill figures when you are submitting on a drawing.
