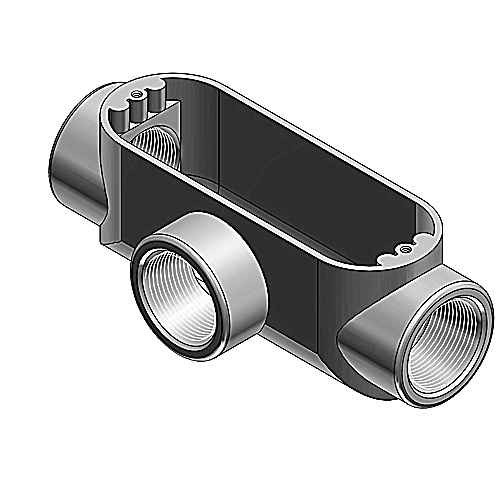

Thomas & Betts Type T Die Cast Aluminum Conduit Body with Weather Resistant Cover

Thomas & Betts Type T Die Cast Aluminum Conduit Body with Weather Resistant Cover

(No reviews yet) Write a Review

Model: AT-1

In Stock (leaves warehouse same day if ordered before 3pm ET)

$14.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Thomas & Betts Die Cast Aluminum Conduit Body with Weather Resistant Cover System - 1 Inch Trade Size

Professional Weather Resistant Conduit System Components

Thomas & Betts delivers professional-grade conduit body solutions with die cast aluminum construction and weather resistant design. This 1 inch trade size conduit body features retained stainless steel cover screws, smooth throats for easy wire pulling, and a spacious 11.8 cubic inch wiring chamber that provides convenient access for conductor pulling and splice connections. UL certified for reliable performance in rigid and IMC conduit applications.

Professional Features & Benefits

  • Die Cast Aluminum Construction: Provides superior durability and corrosion resistance for long-lasting performance in demanding electrical installations.
  • Weather Resistant System: Maintains conduit system integrity when used with appropriate covers and gaskets for reliable outdoor and harsh environment applications.
  • Retained Stainless Steel Cover Screws: Prevents screw loss during maintenance and ensures secure, corrosion-resistant fastening for professional installations.
  • Smooth Throat Design: Facilitates easy wire pulling and reduces conductor damage during installation for improved efficiency and reliability.
  • Spacious 11.8 Cu In Wiring Chamber: Provides ample space for conductor splicing and connections while maintaining code compliance and accessibility.
  • UL Certification: Meets rigorous safety and performance standards for professional electrical installations and code compliance.
  • 1 Inch Trade Size Compatibility: Designed for seamless integration with standard rigid and IMC conduit systems for versatile applications.

Technical Specifications

  • A Inches: 5 3/8
  • B Inches: 5 15/16
  • C Inches: 1 3/4
  • Cover Die Cast: CV-3
  • Cover Stamped Aluminum: SCV-3
  • D Inches: 1 7/8
  • D Pak Catalog Number: DAT-3-CG
  • Department: Electrical
  • E Inches: 3 1/2
  • F Inches: 2 5/8
  • G Inches: 1
  • Gasket Composition: GKV-3
  • Gasket Neoprene: GKN-3
  • Inner Package: 5
  • Material: Die Cast Aluminum
  • Order Multiple: 5
  • Outer Package: 25
  • Package Height: 11.9
  • Package Length: 14.3
  • Package Width: 8.9
  • Product Group: Electrical Boxes
  • Product Subgroup: Box Covers
  • Rohs Compliance: Yes
  • T B Sold In Uom: Each
  • T B Weight Per Uom: 0.64 lbs. Each
  • Trade Size Inches: 1
  • Volume Cu In: 11.8

Professional Applications

  • Commercial Building Electrical Systems
  • Industrial Facility Conduit Installations
  • Outdoor Electrical Distribution
  • Rigid and IMC Conduit Systems
  • Weather-Exposed Electrical Connections
  • Professional Electrical Contractor Projects
  • Code-Compliant Electrical Installations

Why Choose Thomas & Betts Quality?

Thomas & Betts delivers proven reliability with UL certified components and die cast aluminum construction for superior durability. The weather resistant design with retained stainless steel hardware ensures long-term performance and professional installation integrity. RoHS compliant materials demonstrate commitment to environmental responsibility while maintaining the highest quality standards for electrical professionals.

Manufacturer Resources

Product Specs

Product Group:
Conduit & Raceway
Department:
Electrical
T B Sold In Uom:
Each
Rohs Compliance:
Yes
Product Subgroup:
Conduit Bodies & Covers
Product Material:
Die Cast Aluminum
Product Type:
Type T Conduit Body

Thomas & Betts AT-1 – Frequently Asked Questions

1) What trade sizes does the Thomas & Betts Type T aluminum conduit body come in?
Two trade sizes: 1/2 inch (catalog AT-1) and 1 inch (catalog AT-3). The hubs are threaded for rigid and IMC conduit, so order the size that matches the conduit run you are tying into.
2) Is the cover and gasket included with the Thomas & Betts AT Type T conduit body, or do I order them separately?
The cover and gasket are separate catalog items on the 1 inch body. Covers are CV-3 die cast aluminum or SCV-3 stamped aluminum, and gaskets are GKV-3 composition or GKN-3 neoprene. For an outdoor or wash-down location you want a gasket under the cover, so plan on ordering body, cover and gasket together.
3) Can this aluminum conduit body be used outdoors?
Yes, when it is assembled as a weather resistant system with the matching cover and gasket. The die cast aluminum body resists corrosion and the cover screws are retained stainless steel so they don't rust or fall out during maintenance. Without a gasket under the cover it is not a weather resistant assembly.
4) Will a Type T conduit body work where I need to pull a third conductor run off a straight run?
That is exactly what a Type T is for. It has three openings (two in line, one branching at 90 degrees), so you can take a branch off a straight run and still have a removable cover for pulling and splicing. If you only need to turn a corner, an LB, LL or LR body is the simpler choice; a Type C is for a straight in-line pull point.
5) How much wiring room does the 1 inch Thomas & Betts AT-3 conduit body have?
The 1 inch AT-3 gives you an 11.8 cubic inch chamber. That is the number to use when you run your box fill calculation for splices or a pull point inside the body.
6) Is the Thomas & Betts AT conduit body UL certified for commercial jobs?
It is UL certified for use in rigid and IMC conduit systems, which is what inspectors look for on commercial and industrial installs. The body is also RoHS compliant if you are tracking material restrictions on a spec job.
7) What are the dimensions of the 1 inch AT-3 conduit body for layout and clearance?
Dimensions on the 1 inch body are A 5-3/8, B 5-15/16, C 1-3/4, D 1-7/8, E 3-1/2, F 2-5/8 and G 1 inch. Use B and E for the space you need along the run and C/D for depth clearance off the mounting surface.
8) Do I have to buy these conduit bodies in a case, or can I get just one?
They are sold each. The 1 inch body is packed 5 per inner carton and 25 to the outer, with an order multiple of 5, so a small quantity order will typically come in multiples of five.
9) Will conductors chafe pulling through this conduit body?
The throats are smooth on the Thomas & Betts AT bodies, which is what keeps insulation off sharp edges when you rope conductors through. On the 1 inch size the 11.8 cubic inch chamber also gives you room to work a pull by hand through the cover opening.
