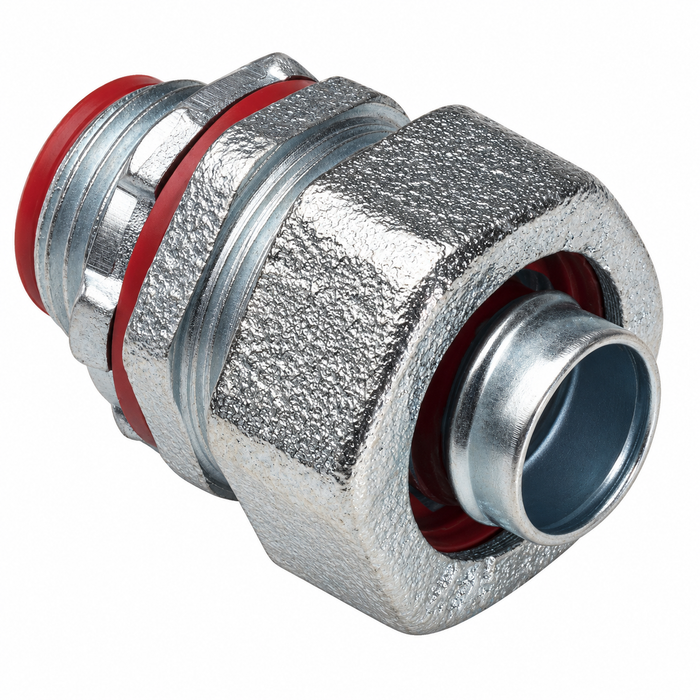

Topaz Lighting 471S Malleable Iron Straight Liquidtight Connector with Insulated Throat

Topaz Lighting 471S Malleable Iron Straight Liquidtight Connector with Insulated Throat

(No reviews yet) Write a Review

Model: 477S

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3.83
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Topaz Lighting 471S Malleable Iron Straight Liquidtight Connector with Insulated Throat

The Topaz Lighting 471S Straight Liquidtight Connector is built from durable malleable iron and features an insulated throat, designed to join liquidtight flexible conduit runs to enclosures, boxes, and equipment. Available across the family in trade sizes from 1/2" through 4" to match varying conduit diameters, this connector belongs to Topaz Lighting's Liquidtight Fittings subgroup within its Conduit & Raceway product line. The straight body configuration provides a compact, inline connection point where a direct conduit run is required, while the insulated throat helps protect conductor insulation during wire pulls.

Key Features

  • Trade Size Range: Available in trade sizes from 1/2" through 4" to match varying conduit diameters and installation requirements.
  • Durable Construction: Malleable iron body offers strength and corrosion resistance for long-term reliability in commercial and industrial environments.
  • Straight Configuration: Inline, straight-body design simplifies routing of liquidtight flexible conduit directly into enclosures and equipment.
  • Insulated Throat: Integrated insulated throat helps protect conductor insulation from abrasion as wires are pulled through the connector.
  • Connector Product Type: Classified as a Connector within Topaz Lighting's Liquidtight Fittings subgroup, purpose-built for liquidtight conduit terminations.
  • Raceway System Compatibility: Designed to integrate with liquidtight flexible conduit as part of a complete Conduit & Raceway system.

Technical Specifications

  • Product Type: Connector
  • Product Material: Malleable Iron
  • Configuration: Straight
  • Trade Size: 1/2" - 4"
  • Pack Size: 100

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Liquidtight Flexible Conduit Runs
  • Conduit and Raceway Systems
  • Equipment and Enclosure Connections
  • Renovation and New Construction Projects

Why Topaz Lighting?

Topaz Lighting builds its liquidtight connectors from rugged malleable iron and adds an insulated throat to safeguard conductors during installation, reflecting a focus on durable, code-conscious hardware for professional electrical work. Offered across a full range of trade sizes from 1/2" to 4" within a dedicated Liquidtight Fittings subgroup, this connector is positioned to deliver dependable, corrosion-resistant performance across commercial and industrial applications.

Product Specs

Department:
Electrical
Product Group:
Conduit & Raceway
Product Subgroup:
Conduit Bodies & Fittings
Product Type:
Connector
Conduit Type:
Liquidtight
Product Material:
Malleable Iron
Pack size (unit):
100
Configuration:
Straight
Product Size:
1/2" - 4"

Topaz Lighting 477S – Frequently Asked Questions

1) What size liquidtight flexible conduit does the Topaz 471S straight connector fit?
The Topaz straight liquidtight connector is sold by trade size, and the 471S is the 1/2 inch. The rest of the family runs 3/4 inch (472S), 1 inch (473S), 1-1/4 inch (474S), 1-1/2 inch (475S), 2-1/2 inch (477S), 3 inch (478S) and 4 inch (480S). Match the trade size of the liquidtight flexible conduit you are terminating, not the wire size or the knockout you are landing in.
2) Is there a 2 inch Topaz straight liquidtight connector?
The straight liquidtight connector family runs 1/2, 3/4, 1, 1-1/4, 1-1/2, 2-1/2, 3 and 4 inch. There is a gap between 1-1/2 inch (475S) and 2-1/2 inch (477S), so a 2 inch liquidtight run needs a different fitting. Do not try to force a 1-1/2 inch body onto 2 inch conduit; the sealing gland is cut for one trade size only.
3) Will this connector work with regular flexible metal conduit or with EMT?
No. This is a liquidtight fitting, and the gland compresses on the jacketed outer cover of liquidtight flexible conduit. Standard FMC (Greenfield) has no jacket for the gland to seal against, and EMT is rigid tubing that takes a set screw or compression connector instead. Use it only on liquidtight flexible conduit of the matching trade size.
4) Will a malleable iron liquidtight connector hold up in a wet or wash-down area?
The body is malleable iron, which is the heavier-duty choice over die-cast zinc or nylon for industrial and outdoor equipment connections, and it is what you want where the fitting takes physical abuse from carts, hose, or vibration. It is a liquidtight fitting, so the gland and sealing ring do the water work, not the metal. In a chemical wash-down or coastal environment where iron corrodes, a plated iron or a nonmetallic liquidtight connector is usually the better call.
5) What does insulated throat mean on a liquidtight connector, and do I still need a bushing?
The insulated throat is built into the connector, so the edge the conductors ride over as you pull them in is already smooth and non-abrasive. That is the point of the feature: no separate insulating bushing goes on the inside of the box for conductor protection. It does not change how the fitting seals or how it grounds; it protects wire insulation during the pull and afterward under vibration.
6) How many Topaz liquidtight connectors come in a box?
Pack size is 100 fittings. That is a contractor or distributor quantity, sized for stocking a truck or a job trailer rather than a single repair. If you are buying for one motor connection or one rooftop unit, plan for the case quantity when you order.
7) Can I standardize one Topaz liquidtight connector part across a facility?
For MRO stocking, the practical approach is carrying the sizes your equipment actually uses rather than one part number. Most motor, HVAC unit and disconnect whips land in 1/2 inch (471S) and 3/4 inch (472S), with 1 inch (473S) covering larger feeders; the 2-1/2 through 4 inch bodies (477S, 478S, 480S) are service and large-equipment sizes you stock only if you have them. All share the same malleable iron body and insulated throat, so the install method is identical across the range.
8) Does the Topaz liquidtight connector come with a locknut and sealing ring?
Order the fitting by its trade size and check the sealing ring and locknut against what your installation needs; the sealing ring is what makes the enclosure side of the joint liquidtight at the knockout, and it is a separate consideration from the gland that seals on the conduit. For a raintight or wash-down enclosure, the enclosure-side seal is the part people forget.
