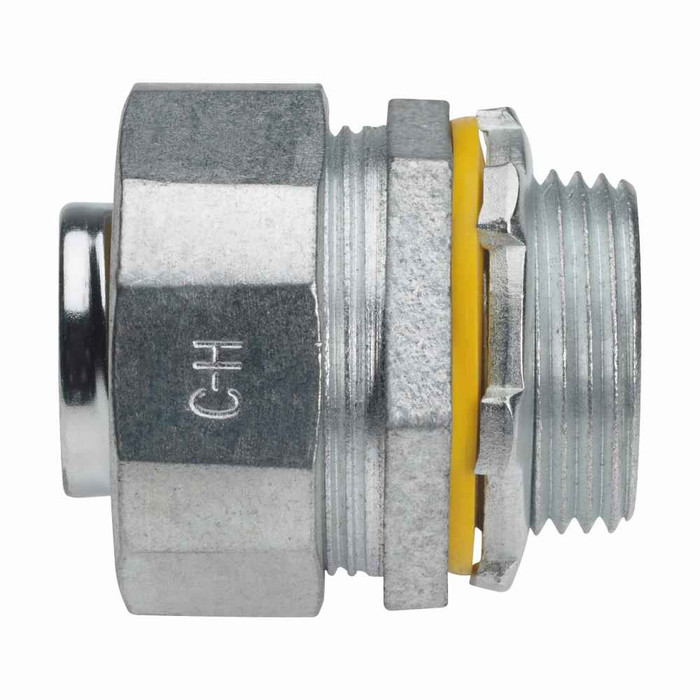

Eaton Crouse-Hinds Liquidtight Connector FMC Straight Insulated Malleable

Eaton LTB Liquidtight FMC Connector, Insulated Malleable Iron

(No reviews yet) Write a Review

Model: LTB100

In Stock (leaves warehouse same day if ordered before 3pm ET)

$8.73
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton LTB Liquidtight FMC Connector, Insulated Malleable Iron

The Eaton LTB Liquidtight FMC Connector is a straight, insulated fitting built from durable malleable iron for use with flexible metal conduit (FMC) systems. Rated for Class I, Division 2 hazardous locations, this connector meets NEC/CEC standards for classified-area installations where explosive atmospheres may be present. Its insulated design adds protection against accidental contact with live conductors, while the malleable iron body stands up to the mechanical stress and harsh conditions typical of industrial and petrochemical facilities. Eaton Crouse-Hinds engineers this connector to provide dependable, code-compliant conduit connections in some of the most demanding electrical environments in the field.

Key Features

  • Connector Type: Straight configuration enables direct FMC conduit connections without angular adjustments, simplifying layout in tight enclosures.
  • Durable Construction: Malleable iron body delivers exceptional durability and corrosion resistance for long-term reliability in harsh industrial environments.
  • FMC Compatibility: Specifically engineered for flexible metal conduit systems, ensuring proper fit, secure connections, and consistent grounding continuity.
  • Insulated Design: Offers enhanced electrical safety and protection against accidental contact with live conductors during installation and maintenance.
  • Hazardous Location Rating: Class I, Division 2 rated for reduced risk of ignition sources in classified areas where flammable vapors or gases may be present.
  • Code Compliance: Meets National Electrical Code (NEC) and Canadian Electrical Code (CEC) standards for professional electrical installations.
  • Field-Proven Reliability: Backed by Eaton Crouse-Hinds engineering, a longstanding name in hazardous location electrical products.

Certifications & Compliance

  • Class I, Division 2 Hazardous Location Rating
  • NEC/CEC Compliant

Technical Specifications

  • Conduit Type: FMC
  • Product Group: Accessories

Typical Applications

  • Hazardous Location Industrial Facilities
  • Chemical Processing Plants
  • Petroleum Refineries
  • Paint Spray Booths
  • Grain Handling Facilities
  • Manufacturing Plants with Flammable Vapors
  • Classified Area Electrical Installations

Why Eaton?

Eaton Crouse-Hinds connectors deliver proven reliability in the most demanding hazardous location applications. With malleable iron construction, an insulated design, and Class I, Division 2 certification, this connector provides the durability and code-compliant performance required for professional electrical installations in classified areas. For contractors and facilities managers working in chemical plants, refineries, and other environments where explosive atmospheres are a concern, the Eaton LTB connector offers a dependable, standards-based solution for flexible metal conduit terminations.

Manufacturer Resources

Product Specs

Area Classification:
Hazardous/Classified Locations
Conduit Type:
FMC
Connector Type:
Straight
Insulator:
Insulated
Nec Hazardous Rating:
Class I, Division 2
Standards Type:
NEC/CEC
Product Group:
Conduit & Raceway
Product Type:
Straight Liquidtight Connector
Department:
Electrical
Configuration:
Straight
Standards:
NEC/CEC
Product Subgroup:
Liquidtight Conduit & Fittings
Product Material:
Malleable Iron

Eaton LTB100 – Frequently Asked Questions

1) Can I use the Eaton LTB connector in a Class I Division 2 area?
Yes. The LTB connector carries a Class I, Division 2 hazardous location rating and is built for classified-area work such as refineries, chemical plants, spray booths and grain handling. It is not rated here for Division 1, so for Division 1 openings you need a fitting specifically listed for that division.
2) Is the LTB fitting for flexible metal conduit or for liquidtight flexible metal conduit?
The conduit type on the LTB is FMC, flexible metal conduit. It is a straight liquidtight-style termination for FMC runs, so if you are terminating LFMC or a non-metallic flexible conduit, you want a fitting listed for that conduit type instead.
3) What does the insulated version of the LTB connector actually give me?
The insulated throat protects conductors from the metal edge as they pass into the enclosure and guards against accidental contact with live conductors during install and maintenance. Non-insulated fittings leave that bare metal throat exposed, which is why many specs call out insulated for classified areas.
4) Is malleable iron the right body material for a corrosive plant environment?
The LTB body is malleable iron, chosen for mechanical strength and corrosion resistance in industrial and petrochemical settings. It holds up to impact and vibration better than a die cast or plastic fitting, which matters on flexible conduit runs at motors and vibrating equipment.
5) Does the Eaton LTB connector meet code for an inspected commercial job?
It is built to NEC and CEC standards for professional electrical installations, and the Class I Division 2 rating is what an inspector looks for on classified-area terminations. For grounding continuity, the metal body is engineered for FMC so the bond carries through the fitting.
6) I am standardizing fittings across a plant. Can I order the same LTB connector for everything from small control wiring up to a 4 inch feeder?
Yes. The LTB family runs from 1/2 inch through 4 inch in one straight insulated malleable iron design, so the same fitting type covers small control conduit at 1/2 and 3/4 inch right up to the 4 inch LTB400 on large feeders. One part family, one material, one hazardous location rating across the facility.
