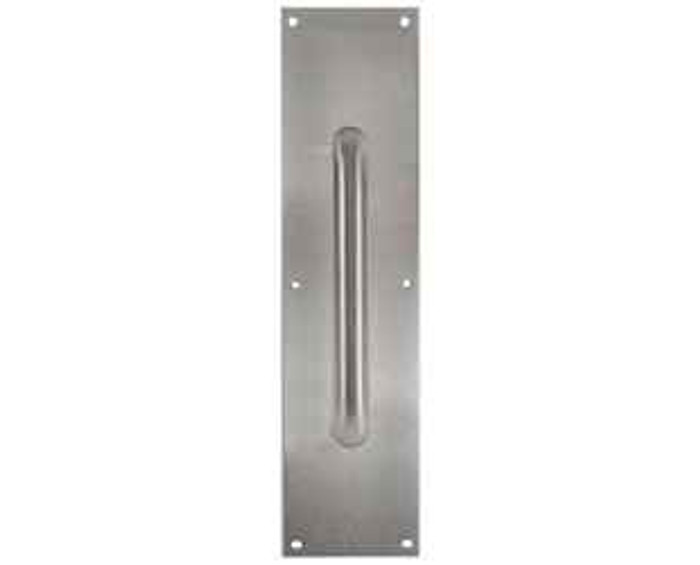

Trimco 1018 1" Diameter Heavy Duty Pull Plate with 8" or 10" CTC Pull

Trimco 1018 1" Diameter Heavy Duty Pull Plate with 8" or 10" CTC Pull

(No reviews yet) Write a Review

Model: TRI-1018-2.626
From the 1018 Series Collection
$176.00
$162.85
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$176.00
$162.85
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TRIMCO 1018 3/4" DIAMETER  HEAVY DUTY PULL PLATE OVERVIEW

The Trimco 1018 Series Pull Plates combine the 1001 Series Plate with an 1195 Series Grip. These ADA compliant pull plates are available in 3-1/2″x15″ and 4″x16″ standard plate sizes and are mated with either an 8″ or 10″ CTC, 1″ dia. straight pull. Custom plate sizes and finishes are also available.


FEATURES & BENEFITS

  • Combines 1001 Series Plate with an 1195 Series Grip.
  • Plates are made of heavy duty .050" stainless steel, brass or bronze and are pencil beveled on all four sides.
  • ADA compliant 1" dia. straight pull with either 8" or 10" CTC.
  • Standard plate sizes include 3-1/2"x15" and 4"x16". Custom sizes and finishes also available.


APPLICATIONS

  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Hospitality
  • Multifamily & Mixed-Use



DOWNLOADS & RESOURCES

Cut Sheets

Warranty

Manufacturer Resources

Product Specs

Series:
1018 Series
Duty Level:
Heavy Duty
ADA Compliant:
Yes
Warranty:
Limited Lifetime
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Push and Pull Plates
Commercial/Residential:
Commercial
Subcategory:
Door Pulls, Push and Pull Plates
Healthy Hardware:
Yes
Product Diameter:
1"
Product Projection:
3-1/8"
Product Category:
Door Trim and Accessories
Collection:
1018 Series
Department:
Door Hardware

Trimco TRI-1018-2.626 – Frequently Asked Questions

1) Will the Trimco 1018 pull plate cover the old screw holes from the pull I'm replacing?
That depends on the center-to-center spacing of the existing pull. The 1018 comes with either an 8 inch or a 10 inch CTC grip, so if the old pull matched one of those two spacings the new grip lands on the same holes. The plate itself is 3-1/2 x 15 inches or 4 x 16 inches, so it will also hide older through-bolt holes that fall inside that footprint. Measure the existing pull hole to hole before you pick the CTC.
2) I have a Detex exit device on the door. Can I use a Trimco 1018 pull plate on the pull side?
Not as a device trim. The 1018 is a standalone pull plate assembly, not exit device trim, so it does not mount to a Detex chassis. For a Detex Value Series exit device you want the Detex P/PN Series pull plate, which is built for that device. Use the 1018 on the non-device leaf or on a plain push/pull opening.
3) I only need the push side of the door. What do I order instead of a pull plate?
A push plate has no grip on it, and the Delaney 3-1/2 x 15 inch push plate and Delaney 4 x 16 inch push plate cover the same two plate footprints the Trimco 1018 offers, so a push/pull pair lines up visually across the two leaves. The Trimco 1018 itself is a pull plate, combining a 1001 Series plate with an 1195 Series grip, and is what goes on the pull side of the opening.
4) What is the closest equivalent to a Trimco 1018 pull plate with an 8 inch or 10 inch center-to-center pull?
The Ives 8303 heavy duty pull plate is built around the same two mounting spreads, 8 inch or 10 inch center to center, and is rated heavy duty like the Trimco 1018. Both put a straight grip on a full-height plate rather than a bare pull, so the door face is protected where hands land. On the Trimco 1018 the grip is 1 inch diameter with a 3-1/8 inch projection, and it is offered in 3-1/2 x 15 inch and 4 x 16 inch plate sizes.
5) Can I put a Trimco 1018 on a door that has a Detex Value Series exit device?
For that opening the Detex P/PN Series pull plate is the trim made for the Value Series exit devices, so the pull lines up with the device rather than fighting its mounting. The Trimco 1018 is a general purpose commercial pull plate with a 1 inch diameter grip in 8 inch or 10 inch center to center, sized for openings where the pull side is not carrying exit device trim.
6) How much does the Trimco 1018 pull stick out from the door face?
3-1/8 inches of projection off the face. That number matters in a corridor with a tight door swing, on a door that opens against a wall, or where the leaf passes close to adjacent millwork. Check it against your clear swing before you specify.
7) Should I order the 8 inch or 10 inch CTC on a Trimco 1018 pull plate?
Grip spacing is what you are choosing between, and both are offered on both plate sizes. The 10 inch CTC gives more room for a two-handed or gloved pull and reads proportionally on the larger 4 x 16 inch plate; the 8 inch is the tighter grip and is the common match to a 3-1/2 x 15 inch plate. Either CTC can be had on either plate size, so match whatever is already installed on the neighboring openings.
8) What is a Trimco 1018 pull plate actually made of, and is it heavy enough for a high traffic entrance?
The plate is .050 inch heavy duty stainless steel, brass, or bronze, pencil beveled on all four sides so there is no sharp edge at the door face. Trimco rates the 1018 heavy duty and commercial, which is the level you want on retail, hospitality, government, and multifamily entrances that see constant hand traffic.
9) What is the 710CU Steralloy finish on the Trimco 1018 pull, and is it worth specifying in a hospital?
710CU is Trimco's Healthy Hardware Steralloy silver, a copper-bearing alloy finish, and the 1018 is flagged as a Healthy Hardware product in that finish. It is the option people pick on touch surfaces in healthcare and other high-contact facilities. It is available on both the 3-1/2 x 15 inch and 4 x 16 inch plates and on both the 8 inch and 10 inch CTC grips.
10) My opening needs a plate size other than 3-1/2 x 15 or 4 x 16. What are my options?
Trimco makes the 1018 in custom plate sizes as well as the two standard ones, so a non-standard stile width or an odd existing cutout can be covered. If you would rather stay with a stock item, ZenSupply also carries Ives heavy duty pull plates: the 8303 with 8 inch or 10 inch center-to-center mounting, which matches the 1018's grip spacing, and the 8302 with through bolt mounting.
11) What is the difference between the Trimco 1018 and a decorative pull plate like the Emtek Knoxville?
Different jobs. The 1018 is a commercial, heavy duty plate with a plain 1 inch diameter straight grip built for constant traffic in commercial and institutional buildings. Emtek's Knoxville, Modern, and lost wax cast bronze Petal push and pull plates are decorative residential-style patterns. If you are trimming a boutique hotel entry or a high-end residence, look at the Emtek plates; if the door is a corridor or service opening that gets pulled hundreds of times a day, the 1018 is the one built for it.
12) What pull plate should I use when the door face cannot be drilled through for the pull?
The Ives 8302 heavy duty pull plate is a through bolt mounted plate, so the fasteners carry through the door rather than relying on the plate face alone. The Trimco 1018 is a heavy duty plate as well, pairing a 1 inch diameter straight pull with a plate pencil beveled on all four sides. Confirm which mounting your door prep already has before committing to either one.
13) Is a plain door pull plate the same thing as the Trimco 1018?
Not quite. The Delaney 3-1/2 x 15 inch door pull plate and Delaney 4 x 16 inch door pull plate are pull plates in the same two plate footprints, but the Trimco 1018 is specified around an ADA compliant 1 inch diameter straight pull offered in 8 inch or 10 inch center to center, with a 3-1/8 inch projection. If the submittal calls out a grip spread, that dimension is what to match, not the plate size alone.
14) What finishes does the Trimco 1018 pull plate come in, and can I get one that matches oil rubbed bronze door hardware?
Nine finishes across both plate sizes and both CTC options: 605 bright brass, 606 satin brass, 613 oil rubbed bronze, 613E dark oxidized satin bronze, 622 matte black, 626 satin chrome, 629 bright stainless, 630 satin stainless, and 710CU Healthy Hardware Steralloy silver. So yes, 613 oil rubbed bronze is stocked, and 613E if you want the darker oxidized bronze instead. Custom finishes are available beyond those nine.
15) Can I standardize a whole building on the Trimco 1018 across different door types?
Yes, and that is the usual reason to spec it. Two plate sizes, two grip spacings, and nine finishes cover most openings, and Trimco will do custom plate sizes and finishes for the odd ones. Pick one finish and one CTC as the building standard, then vary only the plate size where the stile demands it. Every finish is offered on both plate sizes and both the 8 inch and 10 inch CTC, so a single finish choice carries across the whole fleet of doors.
16) What is a decorative alternative to the Trimco 1018 for a hospitality or storefront entry?
Emtek offers push and pull plates in the Knoxville and Modern series, and a lost wax cast bronze Petal series, all styled sets rather than a plain beveled plate. The Trimco 1018 runs a heavy duty .050 inch stainless steel, brass or bronze plate with a straight 1 inch diameter ADA compliant pull, which is the look most commercial and institutional specs expect. Pick by the finish schedule the architect issued.
