Trimco 1013 Round Heavy Duty P...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$88.00
$67.83

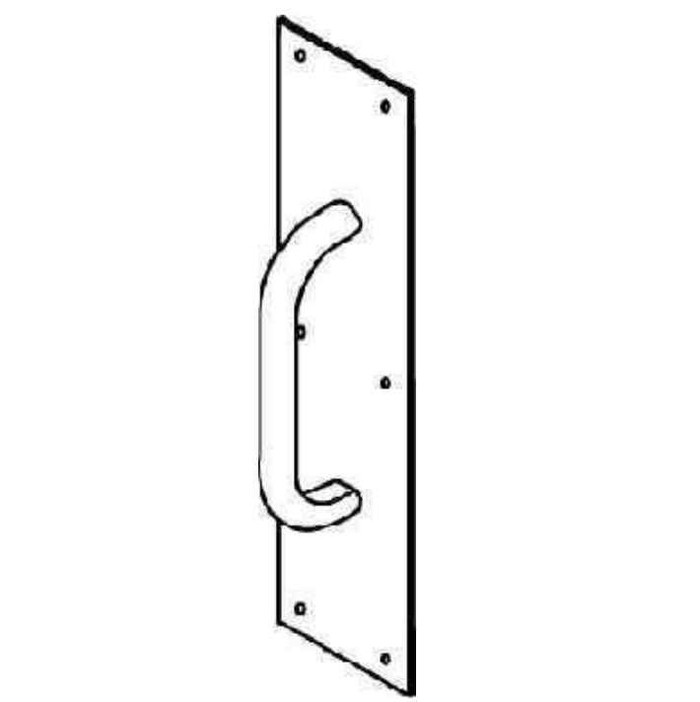

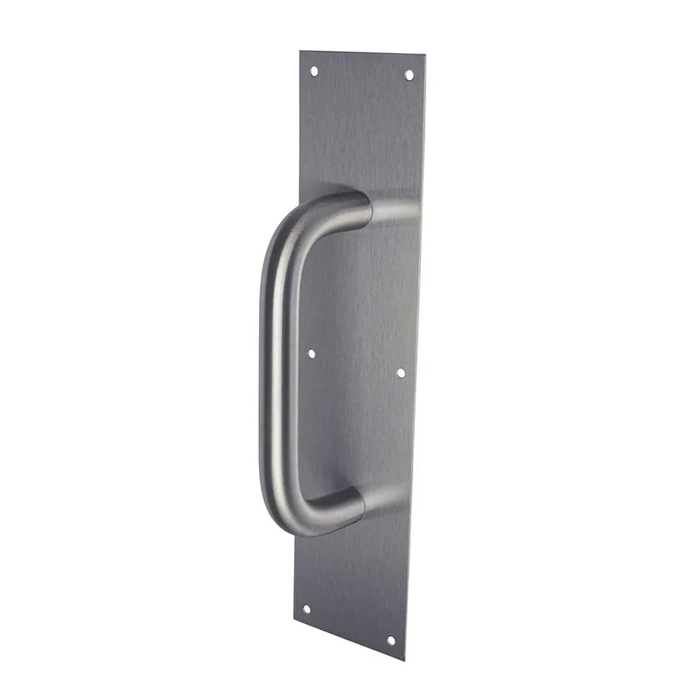

Trimco 1013 Round Heavy Duty Pull Plate with 5.5" CTC Pull

Trimco 1013 Round Heavy Duty Pull Plate with 5.5" CTC Pull

(No reviews yet) Write a Review

Model: 1013-2 630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$88.00
$67.83
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TRIMCO 1013 3/4” ROUND HEAVY DUTY PULL PLATE OVERVIEW

The Trimco 1013 Series Pull Plates combine the 1001 Series Plate with an 1193 Series Grip. These ADA compliant pull plates are available in 3-1/2″x15″ and 4″x16″ standard plate sizes and are mated with either a 5-1/2″ or 8″ CTC, 3/4″ dia., ¾ round, straight pull. Custom plate sizes and finishes are also available.


FEATURES & BENEFITS

  • Combines 1001 Series Plate with an 1109 Series Grip.
  • Plates are made of heavy duty .050" stainless steel, brass or bronze and are pencil beveled on all four sides.
  • ADA compliant cast 5-1/2" CTC tapered pull.
  • Standard plate sizes include 3-1/2"x15" and 4"x16". Custom sizes and finishes also available.



APPLICATIONS

  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Hospitality
  • Multifamily & Mixed-Use



DOWNLOADS & RESOURCES

Cut Sheets

Templates

Warranty

Manufacturer Resources

Product Specs

Series:
1013 Series
Duty Level:
Heavy Duty
ADA Compliant:
Yes
Warranty:
Limited Lifetime
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Push and Pull Plates
Commercial/Residential:
Commercial
Subcategory:
Door Pulls, Push and Pull Plates
Healthy Hardware:
Yes
Product Projection:
2"
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Trimco 1013-2 630 – Frequently Asked Questions

1) How far does the Trimco 1013 pull stick out from the door face?
Projection is 2 inches. That matters where the door swings into a corridor or past an adjacent wall, and it is the number to check against clear-width requirements on the push side.
2) Can I use the Trimco 1013 as the pull trim on a Detex Value Series exit device?
No. Exit device trim is device specific: the Detex P/PN Series pull plate is made for Value Series exit devices. The Trimco 1013 is a standalone heavy duty pull plate that combines the 1001 Series plate with an 1193 Series grip and is not exit device trim.
3) What is a comparable heavy duty pull plate to the Trimco 1013 if a wider center-to-center grip is needed?
The Trimco 1013 pairs its plate with a 5-1/2 inch or 8 inch center-to-center, 3/4 inch diameter round straight pull. If the opening calls for a wider grip spread, the Ives 8303 is a heavy duty pull plate offered with 8 inch or 10 inch center-to-center mounting, so it reaches a 10 inch spread the 1013 does not cover.
4) Which pull plate should I use instead of the Trimco 1013 if the job specifies through bolt mounting?
The Ives 8302 is a heavy duty pull plate with through bolt mounting, so it is the one to quote when the drawing calls out through bolts. The Trimco 1013 is a heavy duty plate built by combining the 1001 Series plate with an 1193 Series grip, with plates in .050 inch stainless steel, brass or bronze pencil beveled on all four sides.
5) What finishes are available on the Trimco 1013 pull plate?
Six: 613 oil rubbed bronze, 613E dark oxidized satin bronze, 622 matte black, 626 satin chrome, 629 bright stainless steel, and 630 satin stainless steel. If you are matching existing hardware across a building, 630 satin stainless is the usual commercial standard and 626 satin chrome the common match to older brass-base trim. Custom finishes are available from Trimco.
6) What else could I buy instead of the Trimco 1013 pull plate?
For a plain pull plate in the same footprint, Delaney makes both a 3-1/2 x 15 inch and a 4 x 16 inch door pull plate. If you want a wider center-to-center grip, the Ives 8303 heavy duty pull plate is built for 8 inch or 10 inch center-to-center mounting, and the Ives 8302 heavy duty pull plate uses through bolt mounting. On the decorative side, Emtek's Knoxville, Modern and lost wax cast bronze Petal push and pull plates are the option when the look matters more than a straight commercial plate.
7) How do the Emtek push and pull plates differ from the Trimco 1013?
The Emtek Modern, Knoxville and Lost Wax Cast Bronze Petal push and pull plates are decorative design series. The Trimco 1013 is a heavy duty commercial plate in .050 inch stainless steel, brass or bronze with an ADA compliant cast 5-1/2 inch center-to-center tapered pull, specified for commercial and industrial buildings, government and military facilities, retail, hospitality and multifamily.
8) Is there a simpler push plate option to pair with the Trimco 1013 on the push side of the same door?
Yes. The Trimco 1013 is a pull plate in 3-1/2 inch by 15 inch and 4 inch by 16 inch standard sizes, and Delaney makes matching-size push plates: the Delaney 3-1/2 inch by 15 inch Push Plate and the Delaney 4 inch by 16 inch Push Plate. A push plate has no grip, so it serves the swing side only.
9) What is a same-size alternative to the Trimco 1013 pull plate in 3-1/2 inch by 15 inch?
The Delaney 3-1/2 inch by 15 inch Door Pull Plate matches the smaller of the two Trimco 1013 standard plate footprints. The 1013 in that size is offered in Trimco finishes including 613 Oil Rubbed Bronze, 613E Dark Oxidized Satin Bronze, 622 Matte Black, 626 Satin Chrome, 629 Bright Stainless Steel and 630 Satin Stainless Steel, with an ADA compliant cast pull.
10) For a 4 inch by 16 inch opening, what else can I quote besides the Trimco 1013?
The Delaney 4 inch by 16 inch Door Pull Plate covers the same plate footprint as the larger Trimco 1013. The 1013 in 4 inch by 16 inch is a heavy duty commercial plate with a 2 inch projection at the grip.
