Trimco 1065 Pocket Door Pull, ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$25.00
$15.24
Trimco Trimco 1065 Pocket Door Pull, Privacy Locking Function (2-1/2" x 2-3/4") TRI-1065

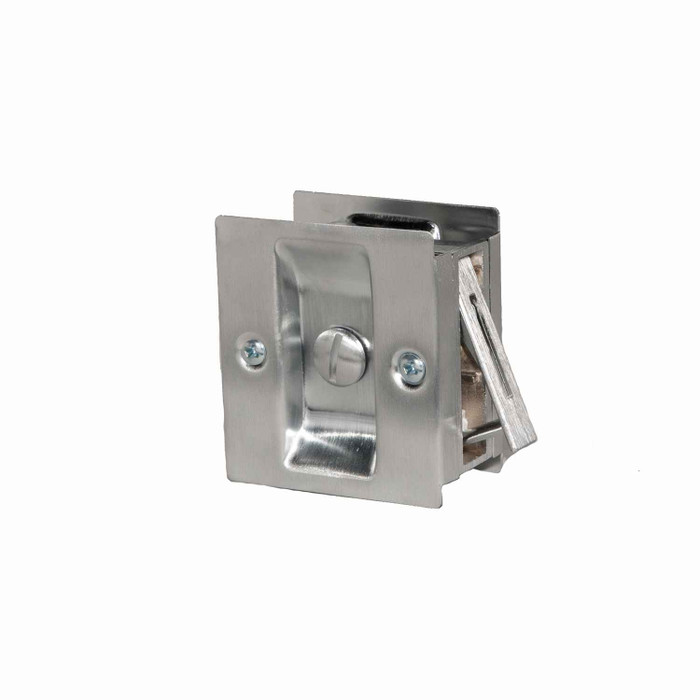

Trimco 1065 Pocket Door Pull, Privacy Locking Function (2-1/2" x 2-3/4")

(No reviews yet) Write a Review

Model: 1065.626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$25.00
$15.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

1064/1065 Pocket Door Pulls Overview

The Trimco 1064/1065 Series Pulls are classically designed for pocket doors. For use with notched pocket doors, these pulls are perfect for closets, hallways, bedrooms and bathrooms. An integrated edge pull enables easy access when the door is closed into the pocket, and the 1065 Privacy version adds a locking feature for bathroom and bedroom applications and includes an emergency turn button on the outside. Pre-assembled from the factory, these pulls are easy to install and are available in a variety of architectural finishes.



FEATURES & BENEFITS

  • Simple to install and field reversible.
  • Has an integrated edge pull.
  • The Flush Cup Pulls are manufactured from solid brass.
  • Available in a variety of architectural finishes.
  • 1064 fits both 1-3/8″ and 1-3/4″ doors.
  • 1065 fits 1-3/8″ standard and can be simply modified for 1-3/4″ doors.



APPLICATIONS

  • Hospitality
  • Office Buildings
  • Multifamily & Mixed-Use



DOWNLOADS & RESOURCES

10641065-Series-Pocket-Door-Pulls-Cutsheet-040317

1064_1065-Series_Template_T18989

Manufacturer Resources

Product Specs

Series:
1065 Series
Product Group:
Sliding Door and Barn Door Hardware
Product Subgroup:
Pocket Door Hardware
Product Type:
Pocket Door Locks
Subcategory:
Pocket Door Pulls
Commercial/Residential:
Commercial
Lock Function:
Privacy/Bed/Bath
Product Function:
Privacy/Bed/Bath
Product Category:
Sliding Door and Barn Door Hardware
Department:
Door Hardware

Trimco 1065.626 – Frequently Asked Questions

1) What is the difference between the 1065, 1065-175, 1065CD and 1065PA pocket door pulls?
Four builds off the same Trimco 1065 pull body. The 1065 is the privacy locking version for a 1-3/8 inch door. The 1065-175 is that same privacy function for a 1-3/4 inch door. The 1065CD is the connecting door version and covers 1-3/8 through 1-3/4 inch in one part. The 1065PA is patio function. If the door is a bathroom or bedroom pocket door, you want privacy, so it comes down to picking the right thickness model.
2) Does the Trimco 1065 privacy pocket door lock have an emergency release from the outside?
It does. The 1065 privacy version includes an emergency turn button on the outside face, so a bathroom or bedroom pocket door can be released from the hallway side. That is the feature a property manager needs on a unit bathroom, and it is what separates the 1065 privacy from the passage 1064.
3) What else could I use instead of the Trimco 1065 privacy pocket door lock?
A few in the same class. The Cal-Royal SDL16 is a privacy pocket door lock with decorative coined edges that covers 1-3/8 to 1-3/4 inch doors in a single part, so it saves you picking a thickness model the way the Trimco does. The Weslock 0677 round privacy pocket door lock has the widest thickness range of the group, 1-3/8 to 2 inch, which is the one to look at if the door is thicker than standard. The Delaney Traditional Square privacy pocket door lock is the option if you want a square rather than round or cup profile.
4) Which pocket door privacy lock works on a door thicker than 1-3/4 inches?
The Weslock 0677 Round Privacy Pocket Door lock is the one to use on thicker slabs; it covers a 1-3/8 inch to 2 inch door thickness range in a round trim style. The Trimco 1065 line stops at 1-3/4 inches, with the 1065 for 1-3/8 inch doors and the 1065-175 for 1-3/4 inch doors, so a 2 inch slab is Weslock territory.
5) What is the closest equivalent to a Trimco 1065 pocket door privacy pull from another manufacturer?
The Cal-Royal SDL16 is the nearest match. Like the Trimco 1065, it is a privacy-function pocket door lock, and the SDL16 covers a 1-3/8 inch to 1-3/4 inch door thickness range in one part, with decorative coined edges on the pull. The Trimco 1065 handles the same thickness span across two models instead: the 1065 for 1-3/8 inch doors and the 1065-175 for 1-3/4 inch doors, so the Cal-Royal is ordered as one number where the Trimco is ordered by door thickness.
6) Is the Delaney 442224 Contemporary Round pocket door lock a substitute for the Trimco 1065?
No. The Delaney 442224 is a Contemporary Round passage pocket door lock, and passage means it does not lock at all. The Trimco 1065 is privacy function, which latches from the inside and carries an emergency turn button on the outside face for a bath or bedroom. Specify the 442224 only where a closet or hall pocket door needs an operating pull and no lock; for a bath door it will not meet the requirement. Within the Trimco range, the passage counterpart is the 1064.
7) What pocket door lock should I use on an exterior or keyed pocket opening instead of the Trimco 1065?
The Delaney 37000 Contemporary Square is an entrance-function pocket door lock, so it is the one for an opening that needs keyed operation rather than a thumb-turn. The Trimco 1065 is a privacy pull with an emergency turn button, which is a bath, bedroom and closet function, not an entrance function. Trimco does cover the adjoining-room case with the 1065CD connecting door model, which fits 1-3/8 inch through 1-3/4 inch doors, and a patio-function 1065PA.
8) What finishes does the Trimco 1065 pocket door pull come in?
Nine, and every one of them is offered on all four models (1065, 1065-175, 1065CD and 1065PA): 605 bright brass, 606 satin brass, 609 blackened satin brass, 613 oil rubbed bronze, 613E dark oxidized satin bronze, 619 satin nickel, 622 matte black, 625 bright chrome and 626 satin chrome. If you are matching pocket door pulls to existing lever trim in a corridor, 626 satin chrome and 619 satin nickel are the two that pair with the most common commercial lever finishes.
9) Can you still open a pocket door once it slides all the way into the pocket?
That is what the integrated edge pull on the Trimco 1065 handles. A flush cup on the door face gives you nothing to grab once the door is recessed, so the 1065 carries an edge pull on the leading edge to bring the door back out. It is one assembly, not a separate edge pull you order alongside.
10) Is the Trimco 1065 solid brass or plated pot metal?
The flush cup pulls in the 1064/1065 series are manufactured from solid brass. For a hospitality or multifamily bathroom pocket door that gets pulled several times a day, that is the material question worth settling before you buy a case of them.
11) I need a pocket door pull with no lock at all. Is the 1065 the right one?
No. The 1065 is the privacy locking version. For a closet or hallway pocket door where you just want a pull, look at the passage 1064, which is the non-locking model in the same Trimco series and fits both 1-3/8 and 1-3/4 inch doors without modification. The Delaney Contemporary Round passage pocket door lock is another passage option if you want a round trim instead.
12) I need to standardize privacy pocket door hardware across a hotel or multifamily building. Which options cover the full range of door thicknesses with one part number?
Two do it in a single number. The Cal-Royal SDL16 privacy pocket door lock is rated for 1-3/8 inch to 1-3/4 inch doors, and the Weslock 0677 round privacy pocket door lock is rated for 1-3/8 inch to 2 inch doors. The Trimco 1065 splits the range instead: the 1065 for 1-3/8 inch and the 1065-175 for 1-3/4 inch, with the 1065CD connecting door model spanning 1-3/8 inch to 1-3/4 inch. Where a facility has mixed slab thicknesses and wants one line item, the single-range peers reduce the count; where the finish schedule drives the decision, the 1065 runs nine finishes from 605 bright brass through 613E dark oxidized satin bronze.
13) What is the 1065PA patio function pocket door pull for?
Patio function locks from one side only, so it is the choice where a pocket door separates an interior room from a patio or similar space and you want the lock operable from inside without an outside release. If the opening is a bathroom or bedroom, take the privacy 1065 instead, since that one gives you the emergency turn button on the outside face. The 1065PA is offered in the same nine finishes as the rest of the series.
