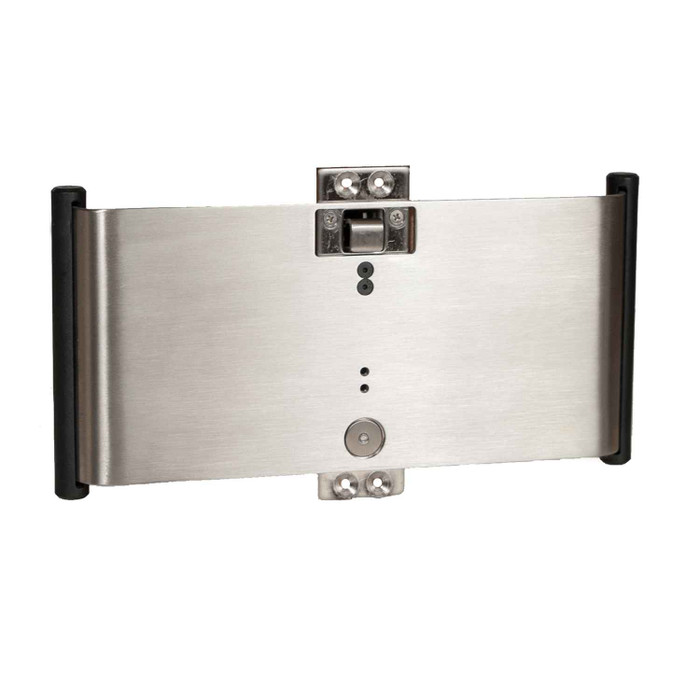

Trimco 1069L ADA Pocket Door Pull, Passage/Latching Function
The Trimco 1069L is a commercial-grade ADA-compliant pocket door pull with an integrated latching function. The door latches closed and is released by operating the pull, making it the right choice for corridors, exam rooms, restrooms, and any application where the door must stay positively closed without a lock. Designed for notched pocket doors, the 1069L features ergonomic black Delrin (nylon) grips on both faces and an integrated edge pull for easy access when the door is fully pocketed. Pre-assembled at the factory for fast installation, it fits 1-3/8" and 1-3/4" doors across six frame-width configurations from 4-3/4" to 13".
Passage/Latching Function
The 1069L holds the door in the closed position via a spring latch. Either side pull releases the latch and slides the door open. There is no lock; the door is always freely operable from both sides. This distinguishes the 1069L from the standard 1069 (passage, no latch) and the 1069FP (full privacy with emergency release). Specify the 1069L wherever a door must stay closed but must never be locked.
Features
- ANSI A117.1 ADA compliant - operable with heel, edge of hand, or forearm; no tight grasping or twisting required
- Integrated latching function keeps door positively closed without a lock
- Integrated edge pull for access when door is fully pocketed
- Ergonomic black Delrin (nylon) grips standard on both faces
- Fits 1-3/8" and 1-3/4" door thickness
- Six frame-width options: 4-3/4" to 5-1/2" (A) through 11-3/4" to 13" (F)
- Available in 8 finishes including 710CU Healthy Hardware Steralloy Silver (antimicrobial copper alloy) for infection-sensitive environments
- Pre-assembled from the factory - minimal field labor
- Lifetime mechanical warranty; limited finish warranty
Applications
- Hospitals & Healthcare Facilities (710CU antimicrobial finish available)
- Assisted Living & Senior Living
- Hospitality
- K-12 Schools & Universities
- Office Buildings
- Multi-Family Residential
Resources
Manufacturer Resources
Product Specs
- Series:
- 1069 Series
- ADA Compliant:
- Yes
- Warranty:
- Lifetime Mechanical & Limited Finish
- Product Group:
- Sliding Door and Barn Door Hardware
- Product Subgroup:
- Pocket Door Pulls
- Product Type:
- Sliding, Pocket & Barn Door Solutions
- Subcategory:
- Pocket Door Pulls
- ANSI/BHMA:
- ANSI A117.1
- Commercial/Residential:
- Commercial
- Door Thickness Range:
- 1-3/8" or 1-3/4"
- Product Category:
- Sliding Door and Barn Door Hardware
- Department:
- Door Hardware
Trimco TRI-1069L-A.630 – Frequently Asked Questions
1) How do I pick the right frame size option on the Trimco 1069L pocket door pull?
Measure the frame width at the pocket and match it to one of six letters: A covers 4-3/4 to 5-1/2 inches, B covers 5-3/4 to 7, C covers 7-1/4 to 8-1/2, D covers 8-3/4 to 10, E covers 10-1/4 to 11-1/2, and F covers 11-3/4 to 13 inches. Every width from 4-3/4 through 13 inches falls inside one of those ranges, so whichever range your measurement lands in is the letter you specify. Frame size and finish are the only two choices on the order; the 1069L ships pre-assembled from the factory otherwise.
2) Will the Trimco 1069L fit a 1-3/8 inch pocket door, or is it made for 1-3/4 only?
Both thicknesses. The 1069L is built for 1-3/8 inch and 1-3/4 inch doors, which covers the standard commercial 1-3/4 inch leaf and the lighter 1-3/8 inch interior door common in older buildings and residential-scale multi-family. A door outside that pair is not what this pull is made for.
3) What is the difference between the Trimco 1069, 1069L, and 1069FP pocket door pulls?
Three different functions in the same 1069 family. The plain 1069 is passage only, no latch, the door just slides. The 1069L adds a spring latch that holds the door closed until either side pull releases it, with no locking of any kind. The 1069FP is full privacy with an emergency release. Specify the 1069L on a door that has to stay closed, corridors, exam rooms, but must never be lockable.
4) Does the Trimco 1069L lock? I need privacy on a restroom pocket door.
There is no lock on the 1069L. It latches, so the door stays shut on its own, but either face releases the latch and the door remains freely operable from both sides at all times. If the opening genuinely needs privacy, the 1069FP is the full privacy version with an emergency release. The 1069L is the choice where a door must stay closed and must never be locked, which is why it lands on corridor and exam room doors.
5) Is this ADA compliant pocket door pull acceptable for a public building opening?
The 1069L is ADA compliant to ANSI A117.1. It operates with the heel of the hand, the edge of the hand, or a forearm, with no tight grasping, pinching, or wrist twisting needed to release the latch or move the door. That operable-parts requirement is where most pocket door hardware fails, because a recessed flush cup pull demands a pinch grip.
6) Does the door have to be notched for a Trimco 1069L, or does it surface mount?
The 1069L is made for notched pocket doors, so the leaf gets cut for the pull body rather than screwed to the face. What that buys you is that the hardware sits flush enough to pass into the pocket. Field labor is the door and frame prep plus mounting, since the pull arrives pre-assembled and does not get built up on site. Order the frame size letter that matches the frame width you are actually prepping so the hardware and the prep agree.
7) How do you pull a pocket door back open once it has slid all the way into the wall?
An edge pull is built into the 1069L, so once the leaf is fully pocketed there is still something on the door edge to bring it back out. It comes as part of the unit along with the two face pulls and the latch, so no separate edge pull needs to be ordered to finish the opening.
8) What is the 710CU Steralloy finish on the Trimco 1069L, and when would a hospital spec it?
710CU Healthy Hardware Steralloy Silver is an antimicrobial copper alloy finish, offered for infection-sensitive spaces such as patient and exam rooms and senior living. It is one of eight finishes; the others are 605 bright brass, 606 satin brass, 613 oil rubbed bronze, 613E dark oxidized satin bronze, 622 matte black, 629 bright stainless steel, and 630 satin stainless steel. The grips themselves are black Delrin on both faces as standard, whichever finish you order.
9) Can I standardize one pocket door pull across a building where the openings are not identical?
That is the normal way the 1069L gets specified. It covers frame widths from 4-3/4 inches through 13 inches across six size options, and it works on both 1-3/8 and 1-3/4 inch doors, so a mixed building can carry one pull and one finish through openings that were framed differently. Hold the finish constant across the property and change only the frame size letter opening by opening. Keeping to one model also means one set of replacement parts and one look on every door.
10) What else do I need to order with a Trimco 1069L to finish the pocket door?
Nothing extra on the hardware itself. Face pulls on both sides, the edge pull, the latch, and the black Delrin grips all come as one pre-assembled unit. The two things you specify are finish, one of eight, and frame size, one of six letters covering 4-3/4 to 13 inches. The pocket frame, track, and rollers are a separate purchase; the 1069L is the pull and latch, not the sliding gear.
11) Is the Trimco 1069L a commercial pull or a residential one?
Commercial grade. The 1069L is specified into hospitals and healthcare, assisted and senior living, hospitality, K-12 and university buildings, offices, and multi-family residential, which is why the antimicrobial 710CU finish is on the list alongside the brass and stainless options. It will go on a home pocket door, but it is built and finished for traffic well above that.
