Trimco 1503 Latchbolt for the ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$115.87
$84.73

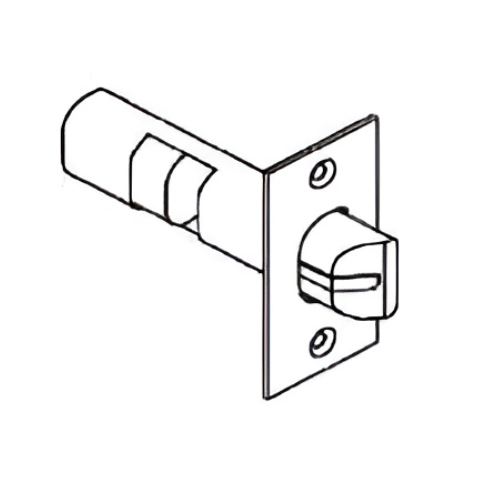

Trimco 1503 Latchbolt for the 1500 Series, 3-3/4" Backset

Trimco 1503 Latchbolt for the 1500 Series, 3-3/4" Backset

(No reviews yet) Write a Review

Model: TRI-1503.626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$115.87
$84.73
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TRIMCO 1503 Series Hospital Latches

Trimco's 1500 Series Push/Pull Latches features a sleekly designed, cold-forged steel base assembly. This refinement allows for improved lever action and simple field reversibility, regardless of the door hand or function. The new base design allows the distributor to stock Trimco latches without having to maintain inventory for several different functions or door hands. Trimco's 1560 and 1580 latches are approved by Underwriter's Laboratories for use on fire-rated openings up to and including 3 hours.



1500 SERIES HOSPITAL LATCHES OVERVIEW

Trimco’s 1500 Series Push/Pull Latches features a sleekly designed, cold-forged steel base assembly. This refinement allows for improved lever action and simple field reversibility, regardless of the door hand or function. The new base design allows the distributor to stock Trimco latches without having to maintain inventory for several different functions or door hands.

The Trimco Push/Pull latch was originally designed to serve hospital staff, and ensure positive latching for patient protection in event of fire. Its aesthetic appearance, ease of operation, versatility and dependability have led to extensive use in modern buildings. Today, Trimco’s latches are considered the standard of excellence in all types of commercial and industrial structures.

Every 1500 Series latch is equipped with Trimco’s unique, patented, Positive Fire-Feature. The finest in the industry! A fusible link with a low melting point provides lockup of the corridor side push pad in the event of a fire, preventing ceiling debris or fire-hose pressure from accidentally releasing the latchbolt and creating a life-threatening situation. Trimco’s 1560 and 1580 latches are approved by Underwriter’s Laboratories for use on fire-rated openings up to and including 3 hours.



PRODUCT FEATURES

  • Lever pads and latch covers manufactured from bronze, brass or antimicrobial copper material are suitable for heavy duty use.
  • Lever pads are thicker and heavier than those of any other unit available. No problems with handles breaking, even when abused.
  • Listed by Underwriter's Laboratory and approved for use by the Veteran's Administration.
  • A nylon insert in the latchbolt face provides silent latch action and reduces friction.
  • Reversible. Hand and function can be easily changed to accommodate every design requirements.
  • Compact design - less than 50% the projection of other Push/Pull latches.
  • Options including multiple functions, tubular or mortise locks, engraving, Torx screws and different combinations of paddles up and down.
  • Meets ADA requirements.



FUNCTIONS AND OPTIONS

  • 1502 Latchbolt for the 1500 Series, 2-3/4" Backset
  • 1503 Latchbolt for the 1500 Series, 5" Backset
  • 1505 Latchbolt for the 1500 Series
  • 1562AP Push/Pull Latch, Tubular, Passage, Levers Down, Engraved



APPLICATIONS

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Assisted Living
  • Hospitals & Health Care Facilities
  • Restaurants



STANDARDS

  • USGCBC Certified
  • BHMA Certified
  • ADA Compliant



DOWNLOADS & RESOURCES

Cut Sheets

Templates

Warranty

1500 Series

Manufacturer Resources

Product Specs

Series:
1503 Series
ADA Compliant:
Yes
Product Group:
Parts and Accessories
Product Subgroup:
Latches
Product Type:
Hospital Latches
Duty Level:
Heavy Duty
Commercial/Residential:
Commercial
Subcategory:
Latches
Healthy Hardware:
Yes
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Parts and Accessories
Product Substrate:
Bronze, Brass and Antimicrobial Copper
Backset (Distance):
3-3/4"
Department:
Door Hardware

Trimco TRI-1503.626 – Frequently Asked Questions

1) What backset does the Trimco 1503 latchbolt work with?
The 1503 latchbolt is the 3-3/4 inch backset version for the Trimco 1500 Series push/pull hospital latch. Backset is the distance from the door edge to the center of the latch mechanism, so measure that on the door before ordering. If your opening is prepped at a different backset, the 1500 Series uses a different latchbolt part number for it, not this one.
2) What is the difference between the Trimco 1503 and the 1503RV?
Two things get chosen here: model and finish. The standard 1503 is the normal-action latchbolt; the 1503RV is the reverse action version, used when the door swing and paddle arrangement call for the bolt to work the opposite way. Both are offered in 625 bright chrome and 626 satin chrome. Pick the action that matches the existing latch before you pick the finish.
3) Is the Trimco 1503 a complete push/pull latch or just a replacement part?
It is a replacement latchbolt only, not a full assembly. You get the bolt that goes into an existing Trimco 1500 Series push/pull hospital latch. If you need the complete unit with lever pads and covers, order a full 1500 Series latch such as the 1562AP tubular passage latch instead.
4) Can I use the Trimco 1503 latchbolt on a fire rated hospital door?
Within the 1500 Series, the 1560 and 1580 latches are the ones approved by Underwriters Laboratories for fire rated openings up to and including 3 hours, and every 1500 Series latch carries Trimco's patented Positive Fire-Feature, a fusible link that locks up the corridor side push pad in a fire so hose pressure or falling debris cannot release the latchbolt. Match the replacement bolt to the specific latch model on the door so the listed assembly stays intact.
5) Will a Trimco 1503 latchbolt work on a left hand or right hand door?
Handing is not a stocking problem with the 1500 Series. The cold-forged steel base assembly is field reversible, so hand and function can be changed on the job regardless of door swing. That is why a distributor can carry one latchbolt rather than separate left and right hand parts.
6) Is the Trimco 1500 Series push/pull latch ADA compliant for a healthcare corridor?
Yes, the 1500 Series meets ADA requirements, which is why it is common on hospital, assisted living and restaurant openings where staff operate the door with a forearm or elbow. It is a heavy duty commercial latch, not a residential one.
7) Does the Trimco latchbolt make noise when the door closes?
A nylon insert in the latchbolt face gives silent latch action and cuts friction, which matters on patient room and corridor doors where slam noise is a complaint.
8) What material are Trimco 1500 Series hospital latches made from?
Lever pads and latch covers come in bronze, brass or antimicrobial copper, and the base assembly is cold-forged steel. The antimicrobial copper option is the one facilities specify when touch surface hygiene is part of the infection control spec.
