TRIMCO 1562 Series Hospital Latches
Trimco's 1500 Series Push/Pull Latches features a sleekly designed, cold-forged steel base assembly. This refinement allows for improved lever action and simple field reversibility, regardless of the door hand or function. The new base design allows the distributor to stock Trimco latches without having to maintain inventory for several different functions or door hands. Trimco's 1560 and 1580 latches are approved by Underwriter's Laboratories for use on fire-rated openings up to and including 3 hours.
1500 SERIES HOSPITAL LATCHES OVERVIEW
Trimco’s 1500 Series Push/Pull Latches features a sleekly designed, cold-forged steel base assembly. This refinement allows for improved lever action and simple field reversibility, regardless of the door hand or function. The new base design allows the distributor to stock Trimco latches without having to maintain inventory for several different functions or door hands.
The Trimco Push/Pull latch was originally designed to serve hospital staff, and ensure positive latching for patient protection in event of fire. Its aesthetic appearance, ease of operation, versatility and dependability have led to extensive use in modern buildings. Today, Trimco’s latches are considered the standard of excellence in all types of commercial and industrial structures.
Every 1500 Series latch is equipped with Trimco’s unique, patented, Positive Fire-Feature. The finest in the industry! A fusible link with a low melting point provides lockup of the corridor side push pad in the event of a fire, preventing ceiling debris or fire-hose pressure from accidentally releasing the latchbolt and creating a life-threatening situation. Trimco’s 1560 and 1580 latches are approved by Underwriter’s Laboratories for use on fire-rated openings up to and including 3 hours.
PRODUCT FEATURES
- Lever pads and latch covers manufactured from bronze, brass or antimicrobial copper material are suitable for heavy duty use.
- Lever pads are thicker and heavier than those of any other unit available. No problems with handles breaking, even when abused.
- Listed by Underwriter's Laboratory and approved for use by the Veteran's Administration.
- A nylon insert in the latchbolt face provides silent latch action and reduces friction.
- Reversible. Hand and function can be easily changed to accommodate every design requirements.
- Compact design - less than 50% the projection of other Push/Pull latches.
- Options including multiple functions, tubular or mortise locks, engraving, Torx screws and different combinations of paddles up and down.
- Meets ADA requirements.
FUNCTIONS AND OPTIONS
- 1502 Latchbolt for the 1500 Series, 2-3/4" Backset
- 1503 Latchbolt for the 1500 Series, 5" Backset
- 1505 Latchbolt for the 1500 Series

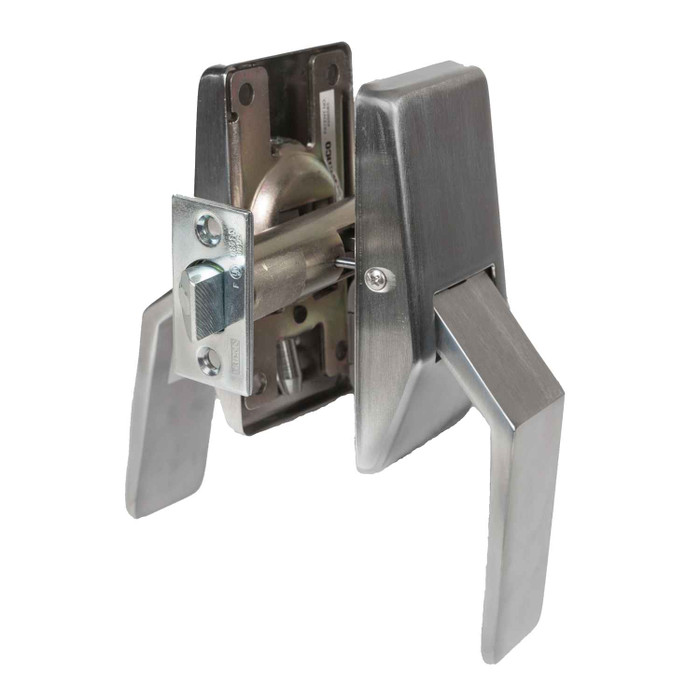

- 1562AP Push/Pull Latch, Tubular, Passage, Levers Down, Engraved
APPLICATIONS
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Assisted Living
- Hospitals & Health Care Facilities
- Restaurants
STANDARDS
- USGCBC Certified
- BHMA Certified
- ADA Compliant
DOWNLOADS & RESOURCES
Manufacturer Resources
Product Specs
- Series:
- 1562 Series
- Category:
- Mechanical Locks
- ADA Compliant:
- Yes
- Backset:
- 5"
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Product Type:
- Hospital Latches
- Duty Level:
- Heavy Duty
- Substrate:
- Bronze, Brass and Antimicrobial Copper
- Commercial/Residential:
- Commercial
- Lock Type:
- Tubular
- Subcategory:
- Bored Locksets
- Handle Type:
- Lever
- Healthy Hardware:
- Yes
