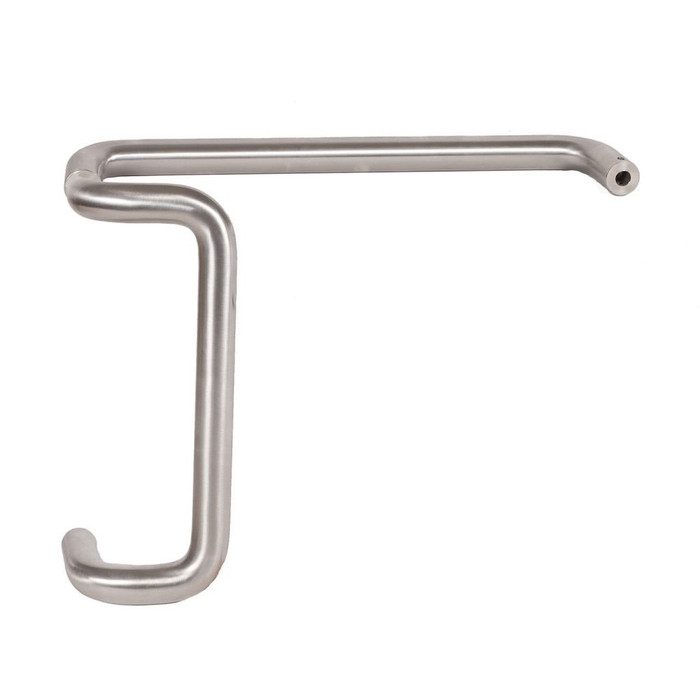

TRIMCO 1732 1" DIAMETER PUSH/PULL BAR SET 12" CTC STRAIGHT PULL OVERVIEW
1732 1" Diameter Push/Pull Bar Set 12" CTC Straight Pull. 1" dia. Push/Pull Bar Set 12" CTC Straight Pull.
Trimco’s 1700 Series Push/Pull Bars & Sets are manufactured in the United States from solid stainless steel, bronze or brass. These heavy duty bars are available with a multitude of mounting options for most applications including steel, wood and glass doors. Available in most architectural finishes, the Trimco 1700 Series Bars are also offered with a fOCAL designer series option.
Buy the TRIMCO 1732 Series today to add a stylish hardware for your home!
TRIMCO 1732 1" DIAMETER PUSH/PULL BAR PRODUCT FEATURES
- Manufactured in the United States from solid stainless steel, bronze and brass.
- Options include 3/4″, 1″ and 1-1/4″ diameter material and 10″, 12″ or 18″ pulls.
- fOCAL designer option available.
- Multiple mounting options for metal, wood and glass doors.
- Must specify CTC on bars. Custom sizes and finishes also available.
APPLICATIONS
- Commercial & Industrial Buildings
- Government & Military Facilities
- Multifamily & Mixed-Use
- Public Buildings & Facilities
- Retail & Strip Malls
TRIMCO 1732 SERIES COLOR VARIATIONS
Trimco 1732 1" Diameter Push/Pull Bar Set 12" CTC Straight Pull Bright Brass (605)
Trimco 1732 1" Diameter Push/Pull Bar Set 12" CTC Straight Pull Satin Brass (606)
Trimco 1732 1" Diameter Push/Pull Bar Set 12" CTC Straight Pull Oil Rubbed Bronze (613)
Trimco 1732 1" Diameter Push/Pull Bar Set 12" CTC Straight Pull Dark Oxidized Satin Bronze (613E)
Trimco 1732 1" Diameter Push/Pull Bar Set 12" CTC Straight Pull Matte Black (622)
Trimco 1732 1" Diameter Push/Pull Bar Set 12" CTC Straight Pull Bright Chrome (625)
Trimco 1732 1" Diameter Push/Pull Bar Set 12" CTC Straight Pull Satin Chrome (626)
Trimco 1732 1" Diameter Push/Pull Bar Set 12" CTC Straight Pull Satin Aluminum (628)
Trimco 1732 1" Diameter Push/Pull Bar Set 12" CTC Straight Pull Bright Stainless Steel (629)
Trimco 1732 1" Diameter Push/Pull Bar Set 12" CTC Straight Pull Satin Stainless Steel (630)
Trimco 1732 1" Diameter Push/Pull Bar Set 12" CTC Straight Pull Healthy Hardware Steralloy Silver (710CU)
TRIMCO 1700 SERIES COLLECTION
Trimco 1729 3/4" Diameter Push/Pull Bar Set 10" CTC Straight Pull
Trimco 1731 1" Diameter Push/Pull Bar Set 10" CTC Straight Pull
Trimco 1732 1" Diameter Push/Pull Bar Set 12" CTC Straight Pull
Trimco 1737 1" Diameter 90º Offset Push/Pull Bar Set 10" CTC Offset Pull
Trimco 1738 1" Diameter 90º Offset Push/Pull Bar Set 12" CTC Offset Pull
Trimco 1740 3/4" Diameter Push Bar E Mounting Standard
Trimco 1741 1" Diameter Push Bar E Mounting Standard
Trimco 1745 1-1/4" Diameter Push Bar E Mounting Standard
Trimco 1746 1-1/4" Diameter Push/Pull Bar Set 18" CTC Straight Pull
Trimco 1746-1 1-1/4" Diameter Push/Pull Bar Set 12" CTC Straight Pull
Trimco 1747 1-1/4" Diameter 90º Offset Push/Pull Bar Set 18" CTC Offset Pull
Trimco 1747-1 1-1/4" Diameter 90º Offset Push/Pull Bar Set
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Commercial/Residential:
- Commercial
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Door Pulls, Push and Pull Plates
- Product Type:
- Door Pulls
- Subcategory:
- Door Pulls, Push and Pull Plates
- Healthy Hardware:
- Yes
- (CTC) Center-to-Center:
- 12"
- Product Diameter:
- 1"
- Product Dimension:
- 1" Diameter
- Product Category:
- Door Trim and Accessories
- Department:
- Door Hardware
Trimco TRI-1732E-12.605 – Frequently Asked Questions
1) Will the Trimco 1732 push/pull bar set work on a glass door, or is it only for wood and metal doors?
Trimco's 1700 Series bars are offered with mounting options for steel, wood and glass doors, and the 1732 comes in two mounting styles: E-Mount and G-Mount. The G-Mount is the glass-door option, so pick that one for a glass front and E-Mount for standard wood or hollow metal. Get the mounting decided before you order, because it is a separate selection from finish and length.
2) What does 12 inch CTC mean on the Trimco 1732 pull, and is that the length of the bar?
12 inches CTC is the center-to-center dimension of the pull's mounting points, not the overall bar length. On the 1732 that CTC is fixed at 12 inches, while the bar itself is ordered in 12, 18, 24, 30 or 36 inch lengths. So if you are drilling a door that already has two holes, it is the 12 inch center-to-center you match, and the push bar length is what you choose to suit the door width.
3) Is the Trimco 1732 a single pull or does it include hardware for both sides of the door?
It's a set: a pull on one side and a push bar on the other, which is the standard arrangement for a single-acting entry door where you pull to enter and push to exit. That differs from a single-side pull like the Deltana SSP1210 12 inch contemporary pull or the Sure-Loc round long door pull, which give you hardware on one face only. If you want matching grab bars on both faces instead, a back-to-back set such as the Deltana SSPOBB24 is the configuration to look at.
4) What do I have to specify when ordering the Trimco 1732 push/pull bar set?
Four things: the center-to-center on the bars, the bar length, the mounting, and the finish. CTC is fixed at 12 inches on the 1732 model, length is 12, 18, 24, 30 or 36 inches, mounting is E-Mount or G-Mount, and there are eleven finishes. Trimco is explicit that CTC must be specified on bars, so if your door is already drilled at a different spacing, order the sibling model that matches it (the 1731 and 1737 are 10 inch CTC, the 1746 and 1747 are 18 inch CTC) rather than the 1732.
5) I need an antimicrobial pull for a healthcare corridor. What do I order?
The Trimco 1732 is offered in 710CU Healthy Hardware Steralloy Silver, an antimicrobial copper-alloy finish, alongside the standard architectural finishes such as 630 Satin Stainless Steel and 626 Satin Chrome. The other pulls in the straight and offset comparable range, including the Ives 8103HD and the ABH AB7200 solid stainless steel pull, are stainless steel construction without that finish designation, so the 1732 in 710CU is the one to specify where an antimicrobial surface is required.
6) What is the closest equivalent to a Trimco 1732 push/pull bar set from another manufacturer?
The Ives 8103HD is the nearest straight-pull match. It is a heavy duty straight door pull built on 1 inch round bar with through-bolt mounting, which lines up with the Trimco 1732's 1 inch diameter bar. The Trimco 1732 is sold as a push/pull bar set, so one order covers both faces of the door; the Ives 8103HD is specified as a door pull. If the opening only needs a pull on the handle side, the 8103HD covers it; if the push side needs a matching bar at the same diameter, the 1732 set carries both.
7) The door needs an offset pull, not a straight one. What should I order instead?
Go to an offset pull rather than the Trimco 1732, which is a straight pull. The Ives 8169 is a C style offset solid door pull at 1 inch diameter, so it keeps the same bar diameter as the 1732 while moving the grip off the door face. The Ives 8145EZHD is a 45 degree offset pull, ADA compliant, with heavy duty mounting hardware. On the ABH side, the AB3310 is an offset flat end surface mount pull and the AB3330 is an offset round end pull with custom length options.
8) Is the ABH AB3300 the same thing as a Trimco 1732?
They are close on the bar but not the same package. The ABH AB3300 is a straight flat end pull handle at 1.00 inch diameter for commercial doors, matching the Trimco 1732's 1 inch bar diameter. The difference is the end treatment and the scope of the order: the AB3300 is a flat end pull handle, while the Trimco 1732 ships as a push/pull bar set covering both sides of the door. Confirm which side of the door the AB3300 is being quoted for before treating it as a one-for-one swap.
9) Which pull works on a glass door, and which ones will not?
The Trimco 1732 is offered in E-Mount and G-Mount, the G-Mount version being the one for glass door applications, and the 1700 Series covers mounting for metal, wood and glass doors. Among the alternatives, mounting is through-bolt or surface: the Ives 8103HD uses through bolt mounting, the ABH AB7200 uses through-bolt mounting, the ABH AB3310 is surface mount, and the Sure-Loc PL-1RD offers concealed or thru-bolt. Confirm the glass prep before substituting any of those onto a glass leaf.
10) I need a push/pull bar set for a wide entrance door - how long can I get the Trimco 1732 bar?
Up to 36 inches. The 1732 set is sold in 12, 18, 24, 30 and 36 inch sizes, so a wide storefront or entry leaf can take the 30 or 36 inch bar across the push side. Trimco also makes custom sizes in the 1700 Series if none of the five stock lengths suits the opening.
11) How thick is the bar on the Trimco 1732, and can I get it heavier or lighter?
One inch diameter round bar on the 1732. Within the 1700 Series the same straight push/pull set is also built in 3/4 inch and 1-1/4 inch material, so the 1729 is the 3/4 inch version at 10 inch CTC and the 1746-1 is the 1-1/4 inch version at 12 inch CTC. One inch is the middle weight and the usual choice where you want a full-hand grip without the visual bulk of 1-1/4.
12) Should I use a straight push/pull bar set or an offset one on a commercial entry?
Straight bars like the 1732 sit parallel to the door face and are the simpler, lower-profile choice where the door has no surface hardware in the way. An offset set brings the grip out away from the door face, which is what you want if a rail, glass stop or lockset crowds the pull, or if you need more knuckle clearance. Trimco's offset equivalents in the same family are the 1738 (1 inch diameter, 12 inch CTC, 90 degree offset) and the 1737 at 10 inch CTC. Other offset pulls of this type include the ABH AB3310 flat end and the Ives 8145EZHD 45 degree offset.
13) Can I match the Trimco 1732 push/pull bars to existing satin chrome or oil rubbed bronze hardware in my building?
Eleven finishes are offered: 605 bright brass, 606 satin brass, 613 oil rubbed bronze, 613E dark oxidized satin bronze, 622 matte black, 625 bright chrome, 626 satin chrome, 628 satin aluminum, 629 bright stainless steel, 630 satin stainless steel and 710CU Healthy Hardware Steralloy Silver. Those are BHMA finish numbers, so if the hardware already on your other openings is called out as 626 or 630 on a schedule, the 1732 matches it by number rather than by eye. Custom finishes are also available from Trimco.
14) Is the Trimco 1732 push/pull bar set heavy enough for a high-traffic commercial door?
Yes. The 1700 Series bars are made in the United States from solid stainless steel, bronze or brass, and Trimco calls them heavy duty. The 1732 is catalogued for commercial use, and the applications Trimco lists are commercial and industrial buildings, government and military facilities, multifamily and mixed-use, public buildings and retail. Solid bar rather than tube is the thing that matters for traffic, since there is no thin wall to dent at the mounting points.
15) I only need a push bar, not a pull - what should I order instead of the Trimco 1732?
Order a push bar on its own from the same 1700 Series. The 1741 is the 1 inch diameter push bar with E mounting standard, which is the same bar stock as the 1732 set; the 1740 is the 3/4 inch version and the 1745 is 1-1/4 inch. The 1732 includes both a push bar and a 12 inch CTC straight pull, so it is the wrong part number if the pull side of the door is already covered.
16) What else could I buy instead of the Trimco 1732 if I want a similar 1 inch round commercial door pull?
Two close cross-brand options are the ABH AB3300, a straight flat end pull handle in 1.00 inch diameter, and the Ives 8103HD, a heavy duty straight 1 inch round pull with through-bolt mounting. Both are single pulls rather than a push-and-pull set, so you would pair one with a separate push bar or push plate to cover both faces the way the 1732 does. For a round end offset instead of a straight bar, the ABH AB3330 Series is offered with custom length options.
17) I need a 1 inch diameter straight pull but in a lighter bar. What else is there?
The Ives 8102HD is a heavy duty straight door pull built on 3/4 inch round bar with 1-1/2 inch clearance, a step down in bar diameter from the Trimco 1732's 1 inch bar. The ABH AB7200 is another lighter option, a solid stainless steel flat end pull at 7/8 inch diameter with through-bolt mounting. Both give a slimmer grip than the 1 inch bar while staying in commercial straight-pull territory.
18) I need pulls on both faces of the door. What are my options besides the Trimco 1732?
The Trimco 1732 is a push/pull bar set, so the push bar and the 12 inch center-to-center straight pull come together. If you want a pull on both faces instead of a push bar opposite the pull, the Deltana SSPOBB24 is a 24 inch back-to-back modern offset door pull set and the SSPORBB24 is the 24 inch back-to-back round offset version. The Deltana OHP620 is an off-set handle pull in a back-to-back set for doors 1-1/8 inch to 1-3/8 inch thick. The Sure-Loc PL-2KN is a knurled long door pull in a double-sided configuration.
19) I need a longer pull than 12 inches. What are the alternatives?
The Trimco 1732 pull bar is offered in 12, 18, 24, 30 and 36 inch sizes on a 1 inch diameter bar. If the length you need falls outside a stock size, the ABH AB3330 is an offset round end pull offered with custom length options. For a fixed 24 inch back-to-back arrangement, the Deltana SSPOBB24 and SSPORBB24 are both 24 inch offset pull sets.
20) Does the Trimco 1732 come in a designer or decorative version?
The 1700 Series bars are offered with Trimco's fOCAL designer series option, so the same 1 inch straight push/pull bar geometry can be had in that decorative treatment rather than only as a plain round bar. It is specified as an option on the order alongside diameter, CTC, length and finish.
