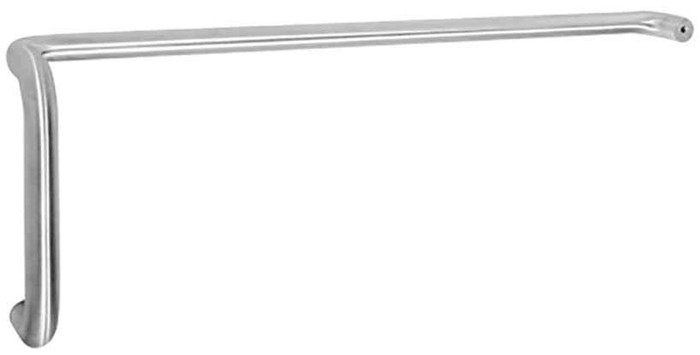

ROCKWOOD Series 47 Straight Single Bar Sets
Material: Aluminum, brass, bronze, stainless steel;
Finishes: Available in standard architectural finishes;
Options:
- Engraving “PUSH” or “PULL”. Specify handing
- Base plates available similar to those shown on page A12 — use BP prefix (BP11047)
when ordering - Heavy duty versions of most fastening types available — use suffix HD to fastening type
number (11047 T3HD)
NOTE: Pull bar Projection : 3-1/2" for Stainless Steel and 3" for Aluminum, Brass and Bronze.
ROCKWOOD OVERVIEW
Rockwood products are normally used on all types of institutional buildings, offices, retail, educational, detention, sports facilities, hotel and restaurant, and finer residences.
ENVIRONMENTAL MANAGEMENT
ASSA ABLOY is commited to protecting the quality of the environment as well as the health and safety of its employees, customers, and the community. Please see our Environmental Health and Safety Policy for details on how we are dedicated to this commitment.
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Product Group:
- Door Trim and Accessories
- Subcategory:
- Push and Pull Bars
- Product Subgroup:
- Door Pulls, Push and Pull Plates
- Product Type:
- Door Pulls
- ANSI/BHMA:
- ANSI A156.6, J504
- Clearance:
- 2"
- Commercial/Residential:
- Commercial
- Product Model:
- 11247
- (CTC) Center-to-Center:
- 12"
- Product Projection:
- 3-1/2"
- Product Category:
- Door Trim and Accessories
- Product Substrate:
- Aluminum, Brass, Bronze, Stainless Steel
- Department:
- Door Hardware
Rockwood 11247 US26D 33CTC – Frequently Asked Questions
1) How far does the Rockwood 11247 pull stick out from the door face?
Projection is 3-1/2 inches, with 2 inches of hand clearance behind the bar. The 3-1/2 inch figure is the stainless steel version; in aluminum, brass and bronze the pull bar projects 3 inches. That matters where the door swings past a wall return, a mullion, or an adjacent leaf on a pair, and it matters for gloved hands on an exterior entrance.
2) Does the Rockwood 11247 push pull set meet ANSI/BHMA A156.6?
Yes. The 11247 is listed to ANSI A156.6 under type J504, which is the architectural door trim standard covering pulls and push bars. If your spec section calls out a J504 pull, this satisfies it by designation.
3) What is a comparable 1 inch diameter straight door pull to the Rockwood 11247 bar set?
The Ives 8103HD is a heavy duty straight door pull with a 1 inch round bar and through bolt mounting, which matches the 1 inch straight bar geometry of the Rockwood 11247. The ABH AB3300 is also a straight flat end pull handle at 1.00 inch diameter. The Rockwood 11247 is supplied as a set with a 12 inch center-to-center pull and a push bar, so where the Ives and ABH pulls cover one side of the opening, the 11247 addresses both push and pull sides at once.
4) What is a simpler alternative if I only need a pull on one side of the door?
The Rockwood 11247 is a set pairing a 12 inch center-to-center pull with a push bar for the opposite face. If the opening only calls for a pull, the Deltana SSP1210 is a 12 inch contemporary pull for a single side, matching the 12 inch dimension of the Rockwood pull. The ABH AB3300 straight flat end pull handle at 1.00 inch diameter is another single-handle option in the same straight 1 inch bar form as the 11247.
5) What finishes does the Rockwood 11247 bar set come in?
Two finishes are offered: 313 dark bronze anodized aluminum and 626 satin chrome. Note that 313 is an anodized aluminum finish, so that option is the aluminum bar with a 3 inch projection, while 626 satin chrome pairs with the plated substrates. If you're matching existing openings, 626 is the common match for satin chrome exit devices and lock trim, and 313 for dark bronze aluminum storefront.
6) Can I order a heavy duty version of the Rockwood 11247 for a high traffic entrance?
Heavy duty versions are available on most fastening types by adding the HD suffix to the fastening type number, written as 11047 T3HD in Rockwood's own example. On a school corridor, a hospital entrance or any door cycling all day, that's the change to make on the order form, and the fastening type is the decision that goes with it, not an afterthought.
7) Can I add a base plate behind the Rockwood 47 series pull to cover old holes in the door?
Base plates are available and ordered with a BP prefix on the model number, Rockwood's example being BP11047. That's the route when you're replacing a different pull and the old through-bolt or mounting holes won't line up, or when you want to protect the door face under the bar on an aluminum or glass front entrance.
8) What material should I pick for a Rockwood 11247 on an exterior door?
The 47 series bars are made in aluminum, brass, bronze and stainless steel. Stainless is the one to specify on exterior and wash-down openings, and it's also the version with the 3-1/2 inch bar projection; the aluminum, brass and bronze bars project 3 inches. So the substrate choice quietly changes your clearance dimension, which is worth knowing if the door swings past anything tight.
9) The Rockwood 11247 has 2 inch clearance - what pull has a tighter hand clearance?
The Rockwood 11247 bar set carries 2 inch clearance between the bar and the door face. The Ives 8102HD is a heavy duty straight door pull with a 3/4 inch round bar and 1-1/2 inch clearance, so it runs a thinner bar and a tighter grip gap. If the gloved hand or the door swing at the frame is what drives the choice, that is the dimension to compare.
10) I need a longer back-to-back pull set than the Rockwood 11247 - what runs longer than 12 inches?
The pull side of the Rockwood 11247 is 12 inches center-to-center. For a longer grip on a storefront or entry leaf, the Deltana SSPOBB24 is a 24 inch back-to-back modern offset door pull set and the Deltana SSPORBB24 is a 24 inch back-to-back round offset set. Both are offset rather than the straight bar geometry of the 11247, and both put a pull on each face instead of pull one side and push the other.
11) Will a Rockwood 11247 bar set standardize with the push plates already on my other doors?
Yes, in the sense that the 47 series bar set is the push/pull solution for doors where a plate isn't enough grip, and it comes in 626 satin chrome, which is the same finish family used on push plates like the Trimco 1001-1 3 inch by 12 inch heavy duty push plate or the Trimco 1070 series push/pull plates at 3-1/2 by 15 inches. On a building where most doors get a plate and a few need a full bar, running 626 across both keeps the openings looking like one package.
