The 4100DBDL Electric Strike

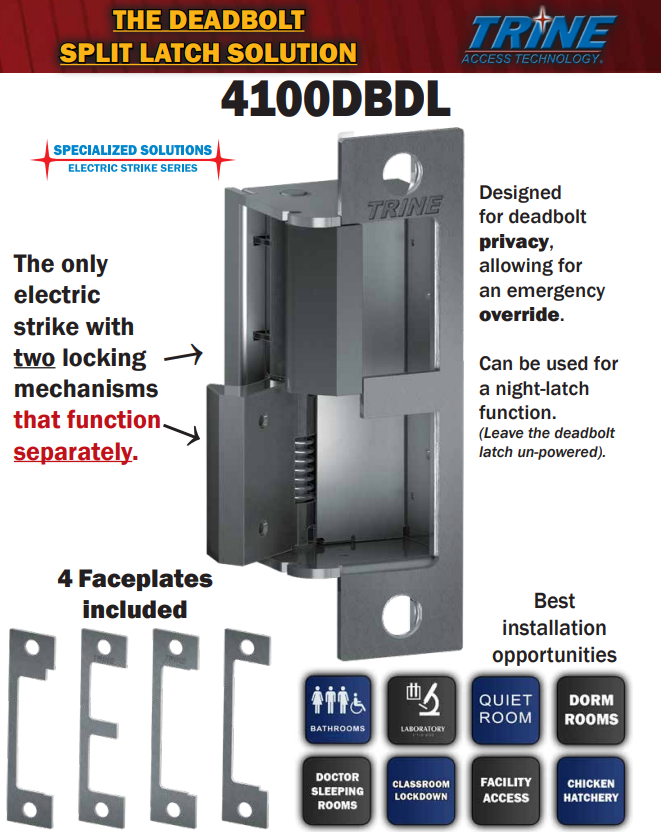

The only electric strike with two independently activated latches.
4100DBDL Features:
- Independently moving latches -- Top and bottom latch unlock with separate mechanisms.
- Grade 1 Electric Strike -- heavy duty construction, 1,000,000+ Life cycles -- 3,250+ lbs. Holding Force
- Four popular faceplates included -- including the 4 most used faceplates for most mortise lock configurations plus the open plates.
- Low Current Draw -- .240 Amp at 12DC makes it very PoE Friendly 12 & 24DC :: 12 through 24 AC. All the low voltage and amperage flexibility you need. ***Please note that electronics are for individual solenoids -- and the 4100DBDL may have both units activated at the same time.
- 4100DBDL patent pending -- 4100 Series Patented # US20110241361
Standards:
- Class A, 3 Hour fire rated single door / frame configuration
- WH recognized for UL10C, Fire Tests of Door Assemblies
- UBC 7-2, Uniform building Code
- CAN4 S104, Standard Method for Fire Tests of Door Assemblies
- NFPA 252 - Issue: 1999/01/01 Standard Methods of Fire Tests of Door Assemblies
- NOTE: WH fire listing is void when using fail safe action.
- UL LISTED - 1034 Burglary Resistant ^^^PENDING^^^^
- ANSI A156.5 - 1992 - 4-7/8" x 1-1/4" Fits
4100DBDL Electrical Characteristics: (Electronic are for operating one (1) latch - operating both latches requires twice the amount of Amperage)
| Volts | Current | Ohms (Ω) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 12DC | 0.240 A | 50 Ω | Intm./Cont. | Silent | Blue/Red |
| 24DC | 0.114 A | 210 Ω | Intm./Cont. | Silent | Brown/Red |
| 12AC | 0.210 A | 50 Ω | Intm. | Buzz | Blue/Red |
| 16AC | 0.280 A | 50 Ω | Intm. | Buzz | Blue/Red |
| 24AC | 0.420 A | 50 Ω | Intm. | Buzz | Blue/Red |
When removing the connector and using the wires direct; Red Wire is Common, Blue Wire accepts 12DC & 12-16 AC, Brown Wire accepts 24DC.
