Trine 4200CC Series - Versatile Electric Strike for Cylindrical and Deadlatch Locks, 4-7/8" Faceplate with Clear Aluminum and Dark Bronze Finish

Trine 4200CC Series - Versatile Electric Strike for Cylindrical and Deadlatch Locks, 4-7/8" Faceplate with Clear Aluminum and Dark Bronze Finish

(No reviews yet) Write a Review

Model: 4200CC-10B-32D

In Stock (leaves warehouse same day if ordered before 3pm ET)

$252.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

THE 4200CC-10B-32D

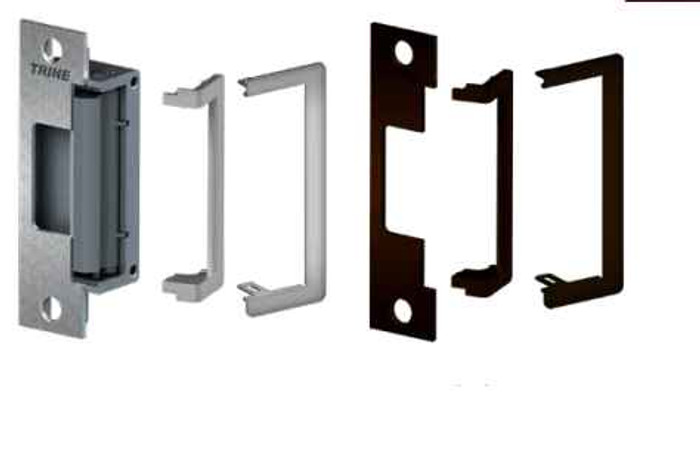

Dual colored electric strike (includes pieces for a 32D/clear aluminum finish and a dark bronze finish) for use with cylindrical locks and deadlatches. Made especially for aluminum frames, and for use with wood fames.

4200CC-10B-32D Features:

  • The only electric strike to have two different finishes in one box. Allows you to match the two most popular frame finishes -- clear aluminum and dark bronze.
  • Competitively priced - at or lower then competition models of the same class.
  • Tallest Latch Cavity in it's Class - at 2 - 13/16" the 4200 offer's almost twice the latch height compared to the competition.
  • Poe Freindly electric strike - 0.240 Amps at 12DC and 0.114 Amps at 24DC
  • Runs Cool all the time, no need of an external 'pac' to reduce strike temperature under continuous duty.
  • Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.

4200 Series Electrical Characteristics (Included, no external packs required):

Volts Current Ohms (Ω) Duty Sound Wire Color
12DC 0.240 A 50 Ω Intm./Cont. Silent Blue/Red
24DC 0.114 A 210 Ω Intm./Cont. Silent Brown/Red
12AC 0.210 A 50 Ω Intm. Buzz Blue/Red
16AC 0.280 A 50 Ω Intm. Buzz Blue/Red
24AC 0.420 A 50 Ω Intm. Buzz Blue/Red


When removing the connector and using the wires direct; Red Wire is Common, Blue Wire accepts 12DC & 12-16 AC, Brown Wire accepts 24DC.

Manufacturer Resources

Product Specs

Series:
4200CC
Product Group:
Electronic Access Controls
Product Subgroup:
Electric Strikes
Product Type:
Electric Strikes
Subcategory:
Electric Strikes
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Type:
Cylindrical
Outdoor Rated:
No
Fail-safe / Fail-secure:
Fail-Secure
Product Voltage:
12/24 VAC/DC
Fire Rating:
No
Product Category:
Electronic Access Controls
Department:
Door Hardware

Trine 4200CC-10B-32D – Frequently Asked Questions

1) Will the Trine 4200CC electric strike work in an aluminum storefront frame?
Yes. The 4200CC is built specifically for aluminum frames and also works in wood frames. It takes cylindrical locks and deadlatches, which is the usual hardware on an aluminum storefront door.
2) Does the Trine 4200CC fail secure or fail safe when the power drops?
Fail secure. Cut power and the keeper stays locked, so the door remains secured from outside and you still get free egress by turning the inside lever. If your opening needs to release on power loss, this is not the strike for it. The Hager 2925 and 2928 are field reversible between fail safe and fail secure.
3) Can I use the Trine 4200CC on a fire rated door?
No. The 4200CC is not fire rated, so keep it off fire door assemblies. For a rated opening, look at the Von Duprin 4211 (Grade 1, fire rated, cylindrical locks), the Hager 2930 (fire rated Grade 1, cylindrical and mortise), or the Camden CX-ED1410/CX-ED1420 universal fire rated strikes.
4) What voltage does the Trine 4200CC strike run on, and do I need a separate power supply board?
It handles 12 or 24 volts, AC or DC, with no external pack required. On DC it draws 0.240 A at 12VDC (50 ohms) and 0.114 A at 24VDC (210 ohms), and it is rated for intermittent or continuous duty and runs silent. On AC it is intermittent duty only and buzzes: 0.210 A at 12AC, 0.280 A at 16AC, 0.420 A at 24AC. The low DC draw makes it PoE friendly.
5) What faceplate sizes and corner styles can I order the Trine 4200CC with?
The standard faceplate is 4-7/8 inches, and there is a 4200CC7 option that adds a 6-7/8 inch faceplate. Either one can be had with square corners or round corners, so you can match an existing cutout instead of patching the jamb.
6) Can I use the Trine 4200CC on an exterior gate?
The Trine 4200CC is not outdoor rated. For a gate or other exterior application, the Camden CX-ED1959 Series is an outdoor rated electric gate strike. Like the 4200CC, the CX-ED1959 is not fire rated, so it is an exterior swap rather than a labeled-opening swap.
7) I need an electric strike for an aluminum storefront jamb. How does the Trine 4200CC compare to the Adams Rite 7100?
The Trine 4200CC is built for cylindrical locks and deadlatches and is made especially for aluminum frames as well as wood frames, with a 4-7/8 inch faceplate. The Adams Rite 7100 is an electric strike for aluminum jambs with a flat 1-1/4 inch x 4-7/8 inch faceplate, so the faceplate width matches an aluminum jamb prep the same way. The Adams Rite 7160 is a second option in the same 1-1/4 inch x 4-7/8 inch aluminum jamb format. Neither the 4200CC nor the 7100 is fire rated.
8) Will the Trine 4200CC work with a mortise lock or an exit device?
No. The Trine 4200CC is built for cylindrical locks and deadlatches. For a mortise lock, the Von Duprin 6210 is a Grade 1 heavy duty strike for mortise locks at 24 VDC fail-secure, and the Securitron MUNL is a Grade 1 mortise unlatch strike. The Von Duprin 6400 in 32D is a Grade 1 modular strike that covers mortise or cylindrical locks. For a rim exit device, the SDC 30-4 is a rim mount strike for a 3/4 inch Pullman latchbolt, and the Hager 2945 is a fire rated rim exit strike with latchbolt monitoring.
9) What is the closest equivalent to the Trine 4200CC electric strike for a cylindrical lock on a fire-rated opening?
The Trine 4200CC is not fire rated, so on a labeled opening look at the Von Duprin 4211 in 32D, a Grade 1 heavy duty fire rated electric strike for cylindrical locks with 12/24 VDC field-selectable operation. The Hager 2930 is another fire rated Grade 1 strike for cylindrical and mortise locks with 12/24VDC dual voltage, and it offers field reversible fail safe/fail secure operation where the 4200CC is fail secure only.
10) What should I use instead of the Trine 4200CC on a hollow metal or wood jamb?
The Trine 4200CC is made for aluminum frames and for use with wood frames. If the opening is hollow metal, the Adams Rite 7170 is an electric strike specifically for hollow metal and wood jambs with a 1-1/4 inch x 4-7/8 inch faceplate. For an ANSI prep in a hollow metal frame, the Dortronics 3300 Series uses a strike plate for ANSI prep at 4-7/8 inch x 1-1/4 inch and runs on 12/24VDC like the 4200CC.
11) My opening has a 5/8 inch latchbolt projection and needs a fire label. What replaces the Trine 4200CC?
Look at the Adams Rite 7240, a fire-rated electric strike for cylindrical locksets with 5/8 inch latchbolt projection, or the SDC 45F Series, a fire-rated strike with 5/8 inch latchbolt compatibility and a radius corner faceplate. The Trine 4200CC also offers a round corner faceplate option but is not fire rated.
12) How do I wire the Trine 4200CC if I cut off the connector?
Wire direct off the pigtail: red is common, blue takes 12VDC or 12-16VAC, and brown takes 24VDC. Pick blue or brown depending on the voltage your access control panel is putting out, not both.

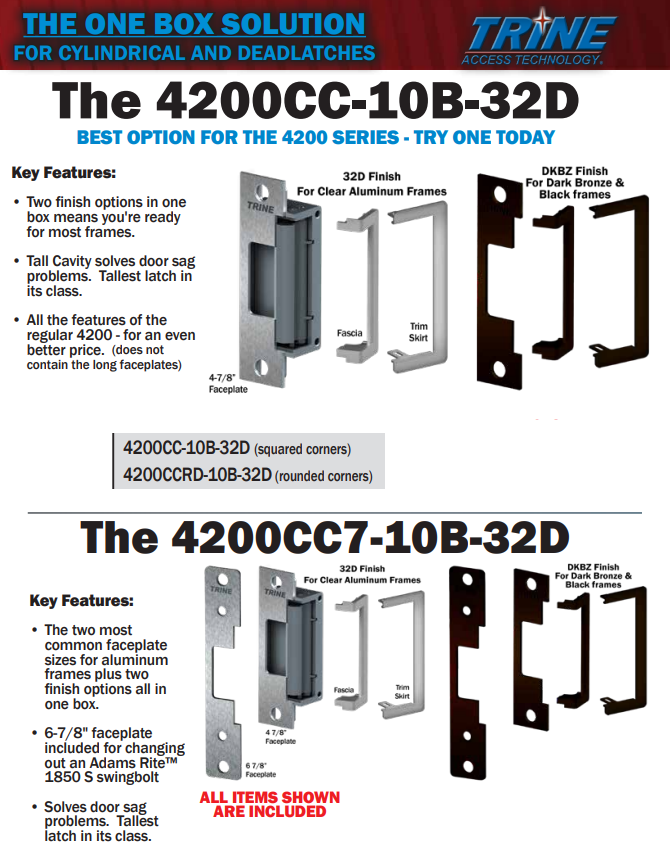

13) Why does the Trine 4200CC come with two finishes in the box?
Each 4200CC ships with parts for both a 32D clear aluminum finish and a dark bronze finish, so one part number covers the two most common storefront frame colors. For a property manager or locksmith stocking a truck, that means you don't have to guess the frame finish before you roll.
14) Can the Trine 4200CC be left energized all day on a continuous unlock schedule?
On DC, yes. It is rated intermittent or continuous duty at 12VDC and 24VDC and runs cool without an external pac to hold temperature down. On AC it is intermittent duty only, and it will buzz, so don't put an AC circuit on a daytime unlock schedule.
15) I need latchbolt monitoring or a door position signal. Does the Trine 4200CC offer that?
The 4200CC's published electrical data covers the solenoid coil only, at 0.240 A on 12DC and 0.114 A on 24DC. If you need a monitored strike, the Dortronics 3300 Series includes a latch bolt sensing switch with 12/24VDC operation and an ANSI prep strike plate, the Hager 2945 provides a latchbolt monitor on a fire rated rim exit strike, and the Camden CX-ED1799L-8 is a Grade 1 dual monitor strike supplied with 8 faceplates.
16) Is there a simpler or lower-cost alternative to the Trine 4200CC for a cylindrical latch?
The SDC 15 Series is a value electric strike for a 5/8 inch latchbolt running 12/24 VDC, and the SDC 25 Series is a value strike built around 1/2 inch latchbolt compatibility. The RCI 15BS is an economy electric strike with fail-secure operation, matching the 4200CC's fail-secure function, though it is set up for a special offset latch entry rather than a standard cylindrical prep. None of those three carry the 4200CC's dual finish kit that ships with both clear aluminum and dark bronze parts in one box.
17) Which Grade 1 heavy duty electric strikes compare to the Trine 4200CC for a high-traffic commercial entry?
The Trine 4200CC is a commercial fail-secure strike rated for intermittent or continuous duty on 12DC and 24DC. For buyers specifying a Grade 1 heavy duty strike, the Alarm Controls AES-100 is a Grade 1 heavy duty electric strike, the Locknetics MDS100 in US32D and the Locknetics MS100 in US32D are both heavy duty strikes, and the Von Duprin 4211 in 32D is Grade 1 heavy duty with a fire rating.
18) Is there an electric strike that avoids cutting the frame, unlike the Trine 4200CC?
The Trine 4200CC uses a 4-7/8 inch faceplate, with a 6-7/8 inch faceplate offered as an added option, so the jamb needs the matching cutout. The Locknetics NC450 in US32D is a no cut electric strike, and the Camden CX-ED1689L-4 is a fire rated low profile universal strike that ships with 4 faceplates to suit existing preps.
19) Are the HES 1500 and 1600 items drop-in replacements for the Trine 4200CC?
No. The HES 1500 and HES 1600 items are electric strike accessories for those Grade 1 fire rated series, not complete strikes, so they will not replace a Trine 4200CC. The same caution applies to the HES Folger Adam 310-1(X), which is a strike body for 1/2 inch, 5/8 inch or 3/4 inch throw latchbolts. If you want a complete assembly rather than a component, the HES Folger Adam 310-4-2 is a complete electric strike pac, though it is built for surface vertical rods rather than the cylindrical locks and deadlatches the 4200CC serves.
20) What is the alternative to the Trine 4200CC for a pair of doors?
The Trine 4200CC is a single strike for cylindrical locks and deadlatches. For a double door opening, the Rockwood electric strike for double doors uses a 3/4 keeper and is a Grade 1 fire rated unit in the 310-1 Series.
21) Is the Trine 4200CC rated for a commercial building, or is it a residential strike?
Commercial. It is a commercial-duty electric strike for cylindrical locks and deadlatches, with a single-solenoid, one-piece locking mechanism, which is fewer moving parts to fail on a high-traffic entry.
