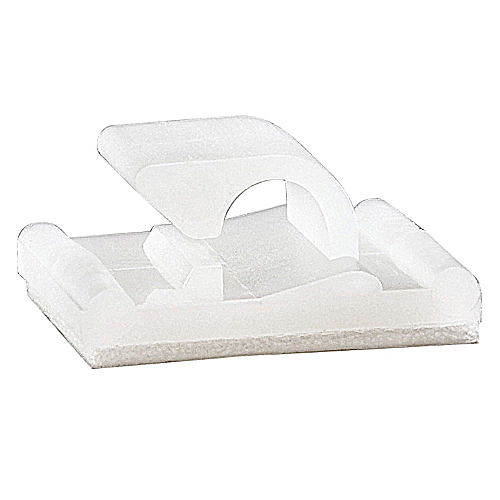

Ty-Rap RANY Self-Adhesive Round Cable Clamps - Natural Nylon with Rubber-Based Adhesive

Ty-Rap RANY Self-Adhesive Round Cable Clamps - Natural Nylon with Rubber-Based Adhesive

(No reviews yet) Write a Review

Model: TY-RANY-620-9-D

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,000.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ty-Rap RANY Self-Adhesive Round Cable Clamps

Professional cable management with versatile adhesive mounting

Ty-Rap RANY Self-Adhesive Round Cable Clamps deliver reliable cable organization with rubber-based adhesive mounting for secure installation. These natural nylon clamps accommodate round cables up to 0.28" diameter and operate effectively in temperatures from 32°F to 150°F, making them ideal for diverse professional applications requiring organized cable routing.

Professional Features & Benefits

  • 0.28" Maximum Bundle Diameter: Accommodates standard round cables for versatile routing applications
  • Rubber-Based Adhesive Mounting: Provides secure attachment without drilling or mechanical fasteners
  • Natural Nylon Construction: Delivers durability and chemical resistance for long-term performance
  • 32°F to 150°F Temperature Rating: Maintains reliable performance across standard operating environments
  • UL 94 V-2 Flammability Rating: Meets professional fire safety standards for electrical applications
  • RoHS Compliance: Ensures environmental compliance for professional installations
  • Compact 1" x 1" x 0.41" Profile: Minimizes space requirements while providing effective cable management

Technical Specifications

  • Brand Label: Ty-Rap
  • Effective Date: 19960816
  • Flammability Rating: UL 94 V-2
  • Height Inches: 0.41
  • Idea Granular Category Code Igcc: 5029 >> Nylon Cable Clips
  • Inner Package: 500
  • Length Inches: 1
  • Max Wire Bundle Diameter Inches: 0.28
  • Mounting Method: Rubber-Based Adhesive
  • Mounting Type: Rubber-Based Adhesive
  • Order Multiple: 500
  • Outer Package: 5000
  • Package Height: 13.25
  • Package Length: 18.25
  • Package Type: Bulk
  • Package Width: 13
  • Product Color: Natural
  • Product Name: TY-RAP FASTENING
  • Product Type: Round Adhesive Clips
  • Rohs Compliance: Yes
  • Special Functions: Versatile adhesive clips keep paths organized.
  • Sub Brand Label: Catamount
  • T B Sold In Uom: Each
  • T B Weight Per Uom: 5.63 lbs. per 1000
  • Temperature Rating: 32°F to 150°F
  • Width Inches: 1
  • Department: Elecrtical

Professional Applications

  • Electrical Panel Cable Management
  • Commercial Building Wire Routing
  • Industrial Equipment Cable Organization
  • Telecommunications Infrastructure
  • Data Center Cable Management
  • Residential Electrical Installations
  • HVAC System Wire Routing

Why Choose Ty-Rap Quality?

Ty-Rap cable management solutions provide proven reliability with UL 94 V-2 flammability rating and RoHS compliance for professional installations. The natural nylon construction and rubber-based adhesive mounting deliver long-term performance across the 32°F to 150°F temperature range, ensuring dependable cable organization in demanding environments.

Manufacturer Resources

Product Specs

Brand Label:
Ty-Rap
Effective Date:
19960816
Flammability Rating:
UL 94 V-2
Height Inches:
0.41
Idea Granular Category Code Igcc:
5029 >> Nylon Cable Clips
Inner Package:
500
Length Inches:
1
Max Wire Bundle Diameter Inches:
0.28
Mounting Method:
Rubber-Based Adhesive
Installation Category:
Rubber-Based Adhesive
Order Multiple:
500
Outer Package:
5000
Package Height:
13.25
Package Length:
18.25
Package Type:
Bulk
Package Width:
13
Product Color:
Natural
Product Name:
TY-RAP FASTENING
Product Type:
Round Adhesive Clips
Rohs Compliance:
Yes
Special Functions:
Versatile adhesive clips keep paths organized.
Sub Brand Label:
Catamount
T B Sold In Uom:
Each
T B Weight Per Uom:
5.63 lbs. per 1000
Temperature Rating:
32°F to 150°F
Width Inches:
1
Department:
Electrical

Ty-Rap TY-RANY-620-9-D – Frequently Asked Questions

1) What size cable will the Ty-Rap RANY adhesive clamps hold?
The RANY round cable clamps come in four bundle-diameter capacities: 4.0mm (RANY-160-9-D), 7.1mm (RANY-280-9-D), 13.5mm (RANY-530-9-D), and a 13.5mm version with a 31.75mm length (RANY-620-9-D). The clamp body spec'd at 0.28 inch max wire bundle diameter corresponds to the 7.1mm size. Pick the capacity that matches your cable OD, not the bundle you hope to add later, since an adhesive clip relies on the cable sitting in the saddle without prying it off.
2) Can I mount RANY cable clips without drilling into the surface?
Yes. RANY clips mount with a rubber-based adhesive pad, so no screw, anchor, or drilled hole is needed. That makes them usable on sheet metal panel interiors, enclosure walls, and finished surfaces where you cannot put a fastener through. The tradeoff is surface prep: a rubber-based adhesive needs a clean, dry, smooth substrate to hold. For rough masonry, dusty, or oily surfaces, a screw-mount or tie-mount clip is the better choice.
3) What temperature range can these adhesive cable clamps be used in?
Rated 32F to 150F. That rules them out for unconditioned attics that swing above 150F, freezer rooms, and exterior walls in freezing climates, where the adhesive bond is the weak link. Conditioned interiors, electrical rooms, panel interiors, and most commercial ceiling spaces sit inside the range.
4) Do these nylon cable clips have a flammability rating for use inside electrical panels?
The RANY clips carry a UL 94 V-2 flammability rating and are RoHS compliant, which is why they get used inside panels, enclosures, and telecom and data cabinets. If your spec calls for UL 94 V-0, V-2 will not satisfy it.
5) How many RANY clips come in a box, and is there a minimum order?
These ship bulk, 500 per inner package and 5,000 per outer carton, with an order multiple of 500. They are priced each but you buy in 500-piece steps, so plan quantities in multiples of 500. Weight works out to 5.63 lbs per 1,000 pieces, which is useful if you are estimating freight on a full 5,000-piece carton.
6) How much space does one of these clips take up on a panel wall?
The clip footprint is 1 inch by 1 inch with a height of 0.41 inch, so it adds well under half an inch of standoff from the mounting surface. That matters when you are routing along the inside of a shallow enclosure or behind trim where clearance to the door or cover is tight. The RANY-620-9-D uses a longer 31.75mm body for the same 13.5mm capacity, giving more adhesive area per clip.
7) Is a round adhesive clip the right choice, or should I use a cable tie mount instead?
A RANY round clamp cradles one round cable or a small round bundle in a fixed saddle and holds it with the clip itself, so there is nothing else to buy and the run goes up fast. A tie mount, by contrast, is just a base; you add a cable tie and can cinch any shape or size of bundle, including flat cable and bundles that will grow. Use the RANY where the cable diameter is known and fixed and you want a clean one-piece clip: coax and low-voltage drops, equipment harnesses, panel interiors. Go to a tie-and-base combination for mixed or oversized bundles, or where you expect to add conductors later.
8) Are the Ty-Rap RANY clips available in black for exposed runs?
Natural nylon only across all four sizes. Natural is a translucent off-white, so on a dark wall or in an exposed ceiling it will show. For visible runs where appearance matters, specify a black or UV-stabilized clip instead; nylon in natural is also not the choice for sustained sunlight exposure.
9) Is the Catamount RANY clip the same part as the Ty-Rap RANY?
Same part. RANY clips are branded Ty-Rap with Catamount as the sub-brand, so a drawing or an old order calling out a Catamount RANY-280-9-D refers to this same clip. Order by the RANY part number and the brand on the bag will not change what you get.
