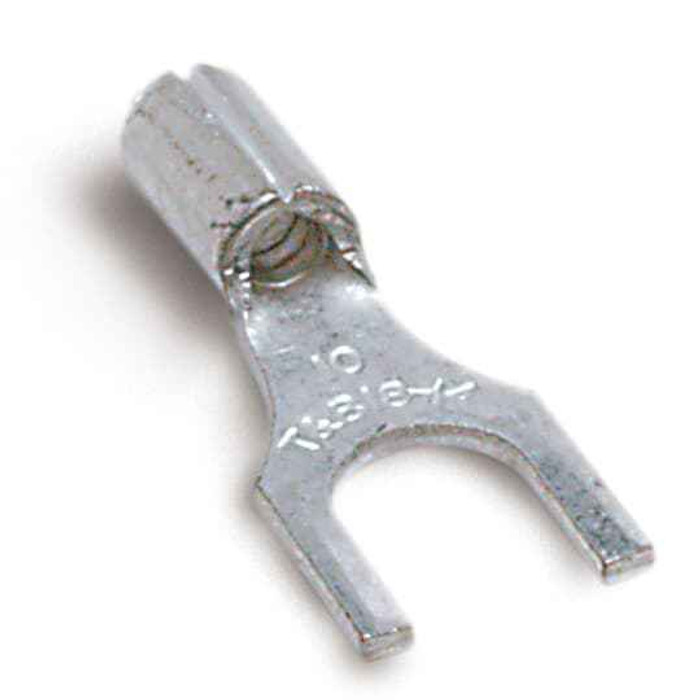

UNINS FORK TERM 12-10 BOLT 1/4 IN
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Fork Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 12-10 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon C10-14F – Frequently Asked Questions
1) What wire size does the Sta-Kon C10-14F fork terminal accept?
The C10-14F is sized for 12-10 AWG conductor. Smaller wire, say 16 or 14 AWG, will not compress reliably in this barrel, so step down to the 16-14 AWG size terminal instead of overcrimping this one.
2) Fork terminal or ring terminal for a 1/4 inch stud connection?
A fork terminal like the C10-14F installs and removes without backing the 1/4 inch screw out, so it is faster for panel and control work where terminations get changed. A ring terminal is captive and will not slip off if the screw loosens, so it's the better choice on vibrating equipment or anywhere a loose connection creates a hazard. Same 12-10 AWG wire range applies either way.
3) Is the C10-14F terminal insulated, and do I need to sleeve it?
It's a non-insulated copper fork terminal, bare metal with no nylon or vinyl collar. If the application needs strain relief or insulation at the barrel, add heat shrink over the crimp or specify an insulated fork terminal in the same 12-10 AWG range.
4) What voltage can a Sta-Kon C10-14F fork terminal be used at?
Rated 600 V, which covers standard commercial and industrial branch circuits, control wiring, and 480Y/277 V equipment. It is UL recognized under file E9809.
5) Can the C10-14F be crimped on aluminum wire?
No. It's a copper terminal with no listing for aluminum conductor, so use it on copper wire only. Aluminum needs an AL-rated or AL9CU dual-rated connector with the proper inhibitor compound.
6) What part number do I order to match existing bare fork terminals on 12 AWG with 1/4 inch screws?
Sta-Kon C10-14F is the part number: uninsulated fork tongue, 12-10 AWG barrel, 1/4 inch bolt size, bare metallic copper finish. If the terminals already in the equipment have a colored insulating collar, you need the insulated version instead, not this one.
7) Are Sta-Kon C10-14F terminals made in the USA?
Yes, country of origin is the United States, which matters on government, institutional and federally funded jobs carrying domestic sourcing requirements.
